Description

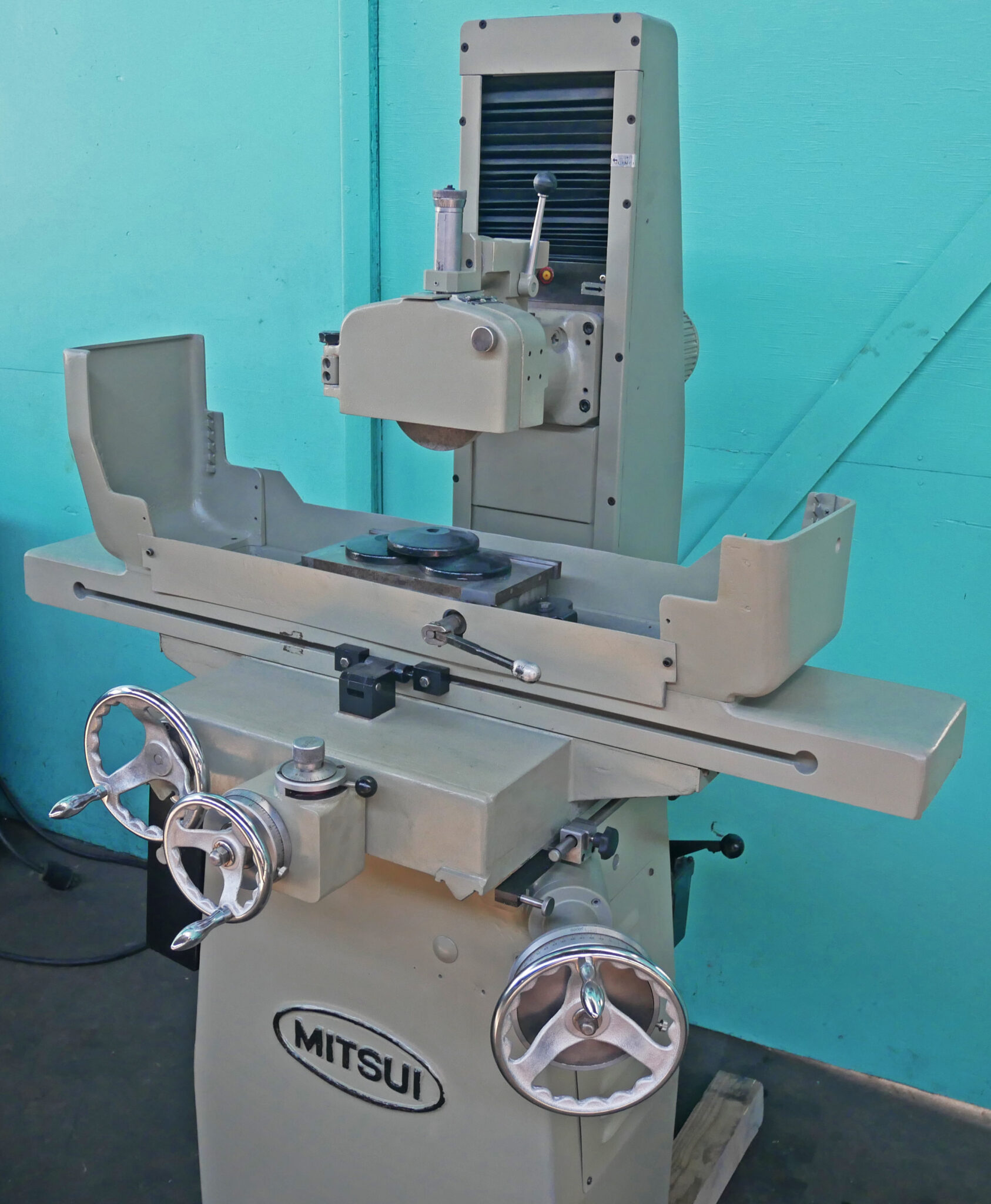

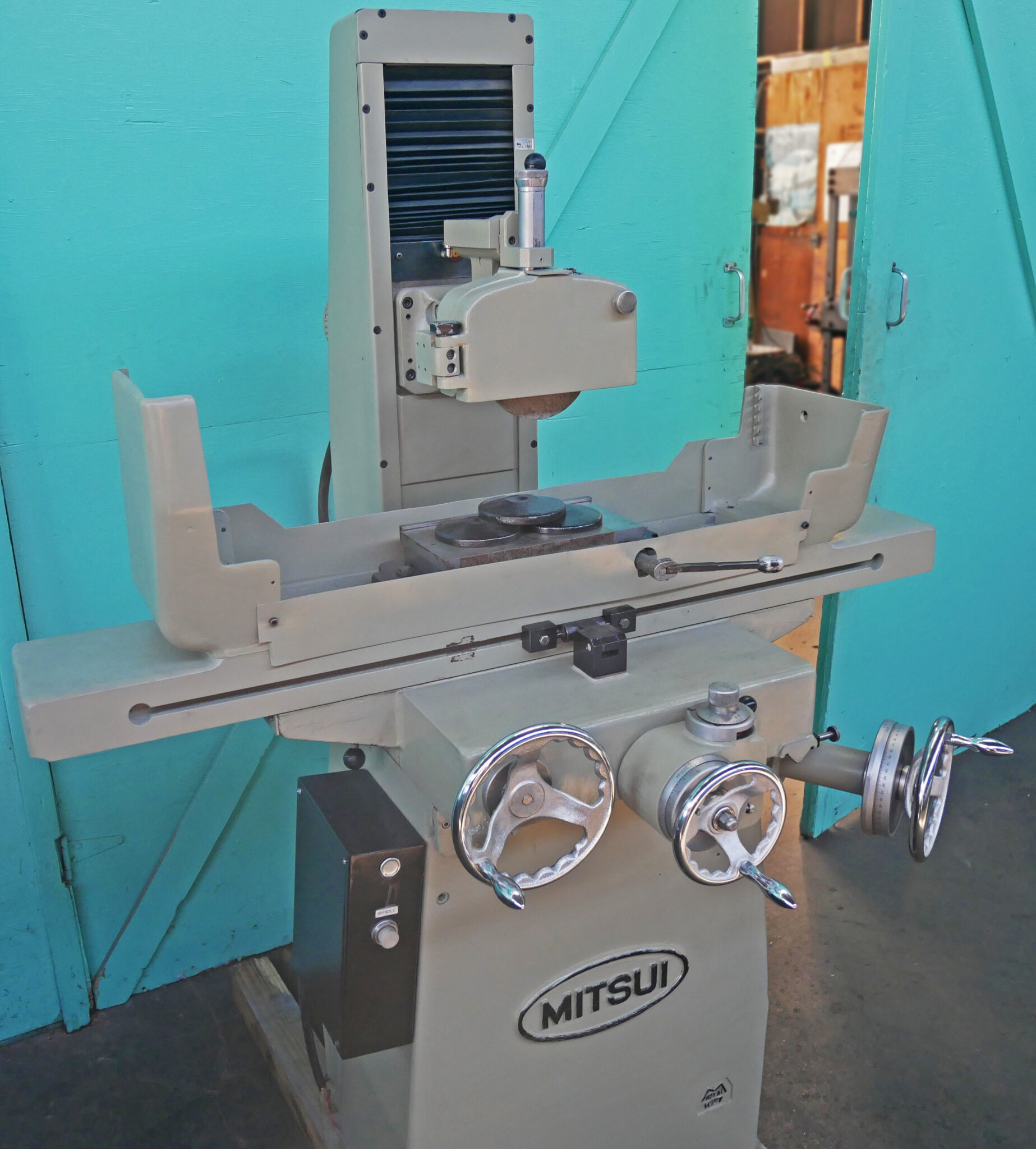

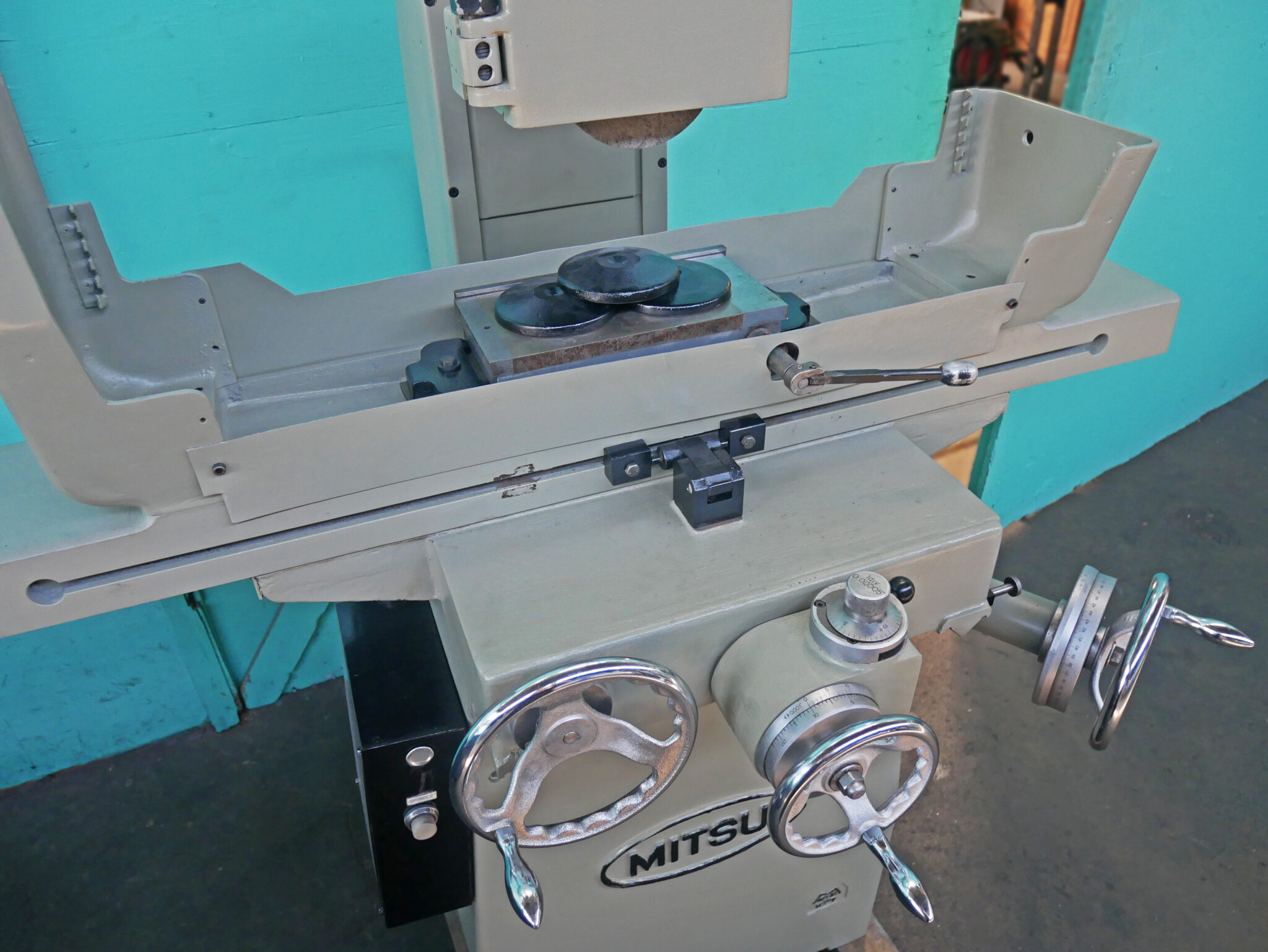

Mitsui 7″ x 14″ Surface Grinder, 200MO
Inventory # 9819-P
Model: 200MO
S/N: 80011546
Specifications:
Max. Longitudinal Movement of Table: 15″
Max. Cross Movement of Table: 8″
Max. Height from Table Surface to the Grinding Wheel Spindle Center: 18″
Max. Grinding Length x Width: 14″ x 7″
Dimensions of Table Working Surface: 14″ x 6 1/4″
Table Movement per Handwheel Revolution: 4″ /Rev.
Handwheel for Vertical Feed:
per One Revolution: 0.05″
per One Division: 0.0001″
Handwheel for Cross Feed:
per One Revolution: 0.1″
per One Division: 0.001″
by Vernier: 0.0001″
Height from Floor to Table Working Surface: 42″
Overall Length x Width of Table: 43″ x 9″
Number of Revolution of Wheel Spindle: 2,900 RPM, 50Hz / 3,400 RPM, 60Hz
Size of Grinding Wheel: 7″ Outer Diameter x 1/2″ Width x 1 1/4″ Bore
Motor for Wheel Spindle: 1 1/3 HP
Equipment Included:
TBD
Mechanical Specifications:
Weight: approx. 1,830 lbs.
FOB Our Baltimore, MD Warehouse
