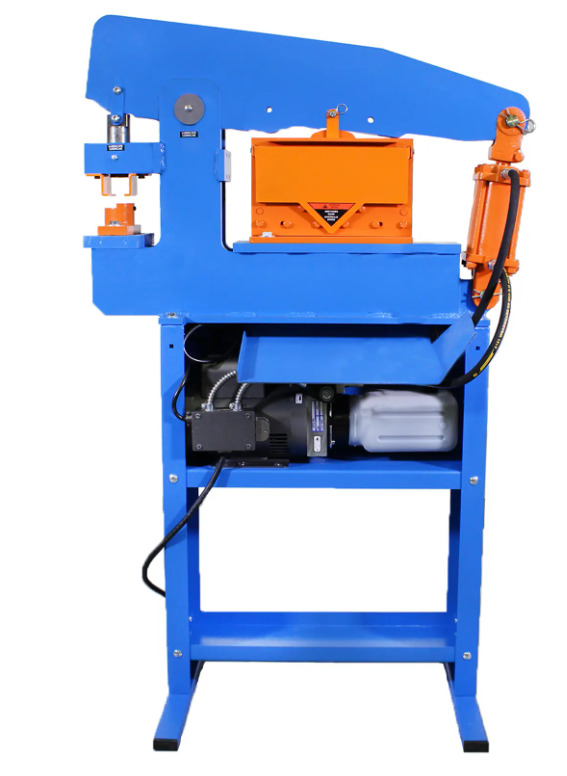

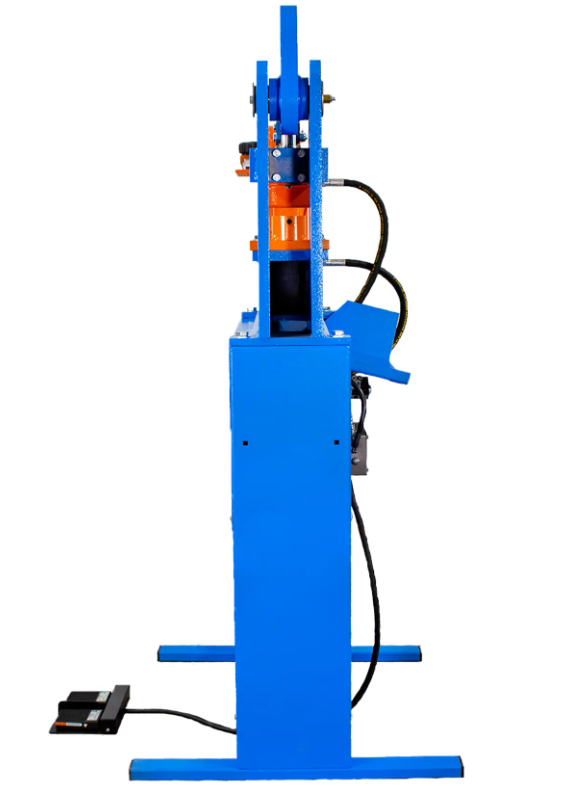

MetalPro 45 Ton Ironworker, MP4500FS
Inventory # 9503
Model: MP4500FS
Made in USA
Description:
The machine is ready with die holder, stripper, and punch retaining nut. The punch station can be used with a range of notchers, custom shape punching, and forming operations. The punch ram and retaining nut are machined and heat treated for longevity
Shear handles flat bar, round, square, and angles in one quick set-up. All wear parts and blades made from heat-treated, high-grade tool steel
The large 11″ x 16″ power cavity delivers 25 tons at the shear. The outboard punching station delivers 45 tons at the punch and is designed to work with a variety of MetalPro accessories
Specifications:
Capacity: 45 Tons
Throat Depth: 3 3/4″
Strokes per Minute: approx. 6 – 8 SPM
Motor: 1.5 HP / 110v / 1ph
Shear:
Flat Bar: 6″ x 3/8″ and 8″ x 1/4″
Angle: 1/4″ x 4″ x 4″
Rod: 3/4″
Square: 5/8″
Hydraulics: 2,900 PSI
Oil Capacity: 1.5 US Gallons
Brake: 25 Tons
Optional Notcher: 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ – Sch. 40
Optional Picket Tool: 1/2″, 5/8″, 3/4″
Pressing: Custom Tooling Available
Standard Features:
Punch Capacity of 45 Tons
3 3/4″ Throat Depth
2″ Die Holder, Punch, Retaining Nut, and Stripper
Foot-Switch Control
Power Cavity with 3-in-1 Shear
Guarding Complies with ANSI B11-8 Standards
Meets American National Safety Standards for Ironworkers
Optional Brakes and Custom Tooling Sold Separately
Mechanical Specifications:
Dimensions: 36 1/2″ x 24″ x 59″ H
Weight: approx. 550 lbs.
FOB Factory
