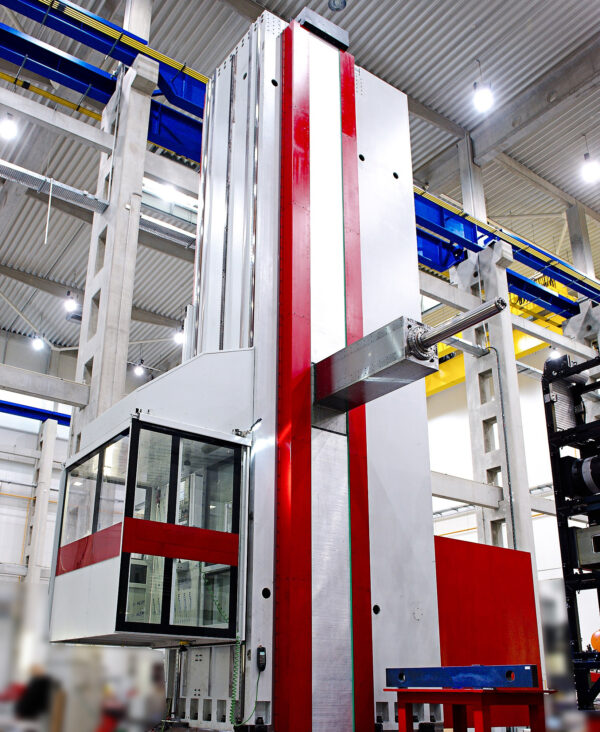

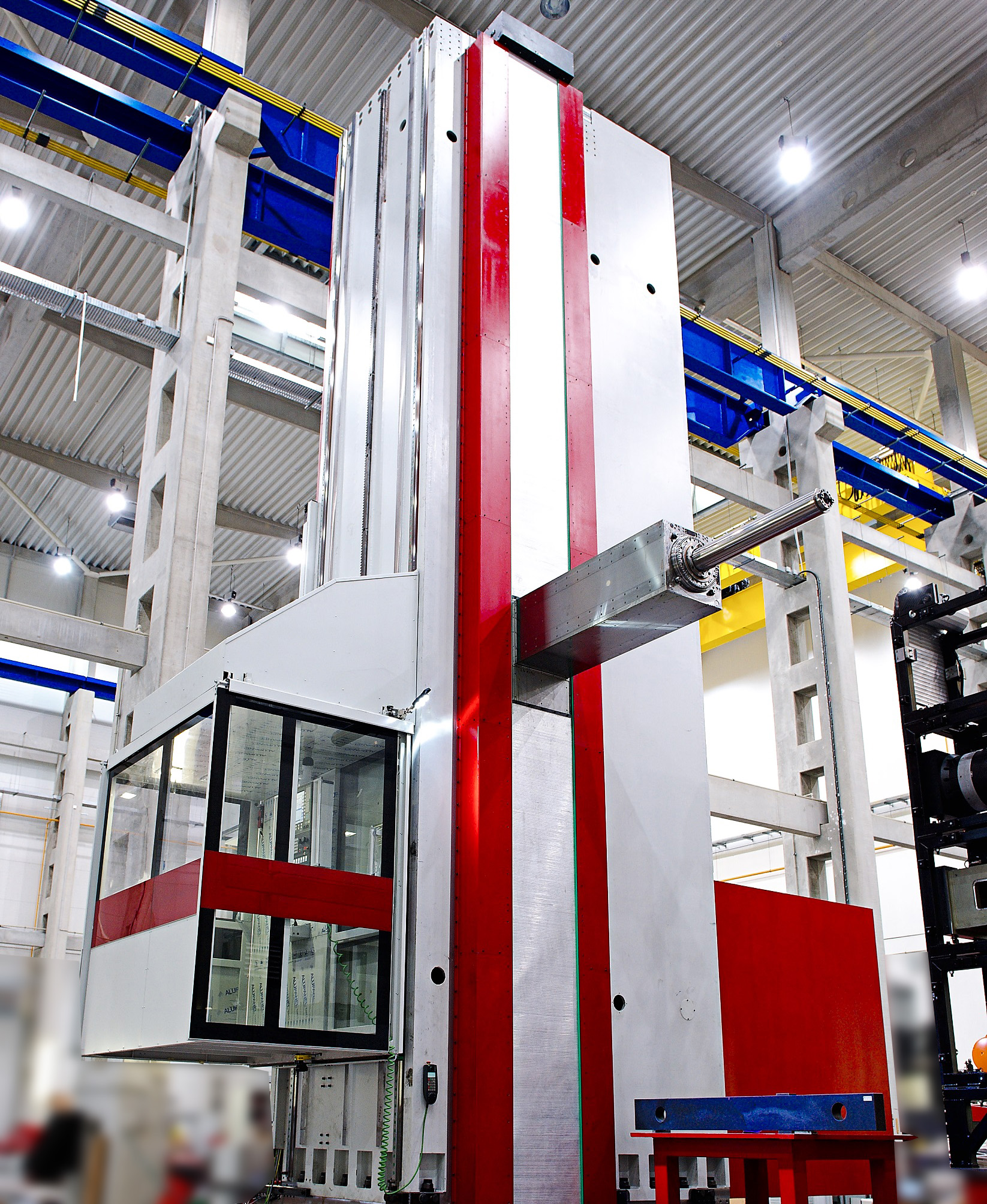

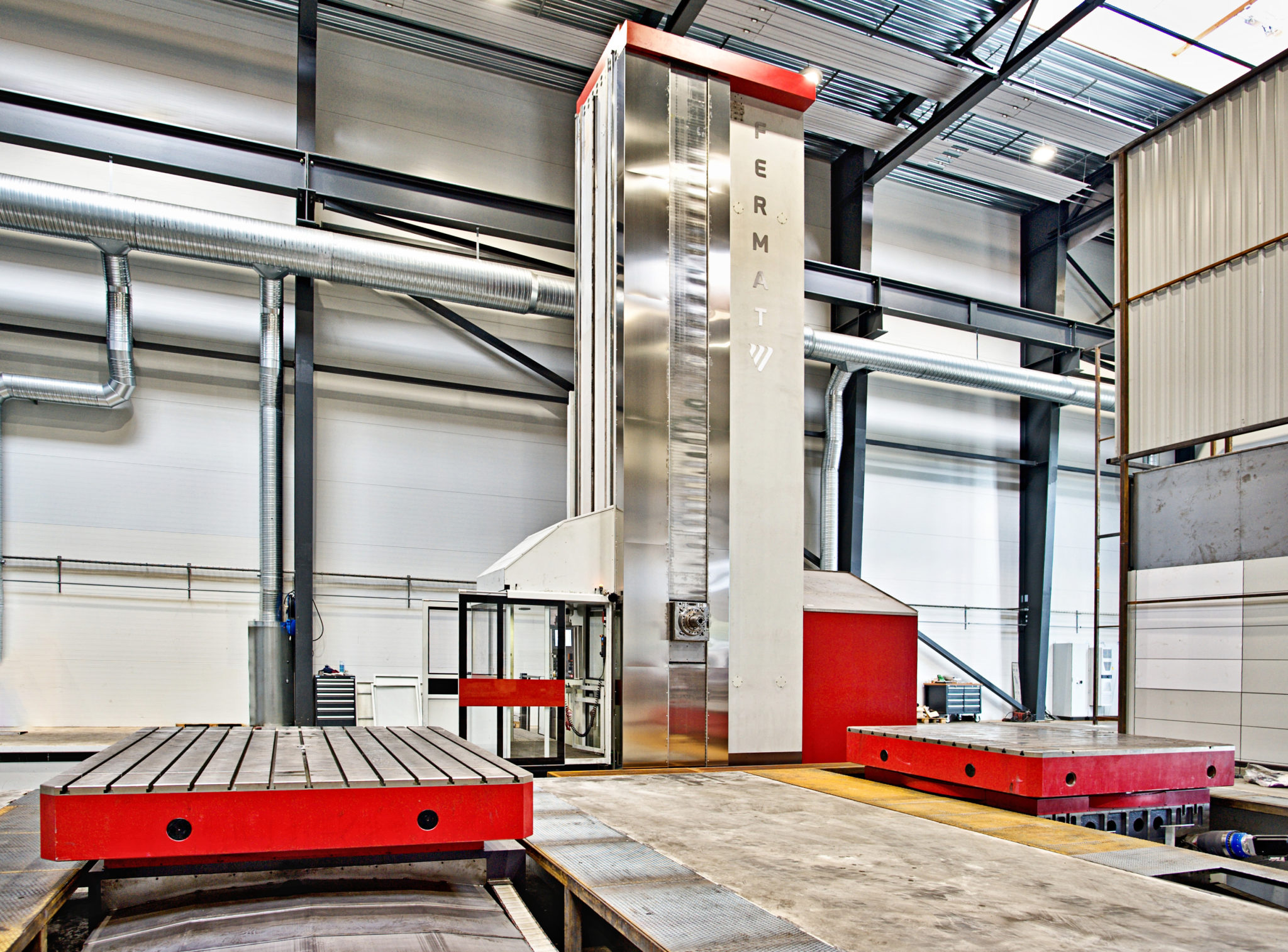

Lucas Precision CNC Horizontal Boring Mill, WRF
Inventory # 8237
Model: WRF
Description:
Horizontal Boring Machines WRF are the biggest representatives of Fermat-Lucas Precision boring mill production. They are used mainly for precise and powerful machining of big and heavy work pieces from iron, cast steel, and steel. Lucas Precision’s machines are usually intended for machining of large energy parts, crane or ship parts, oil and gas equipment and similar applications
Specifications:
Diameter of Spindle: 5.11″ / 5.9″ / 6.2″
Taper of Spindle: ISO50 / BT50 / CAT50
Range of Spindle Speed: 5,000 RPM
Main Power (CNC Heidenhain or Siemens CNC): 55 HP / 82 HP
Max. Torque (CNC Heidenhain or Siemens CNC): 1,548′ /lbs. / 2,322 1/2′ /lbs.
Main Power (CNC Fanuc): 50 HP / 60 HP
Max. Torque (CNC Fanuc): 1,630′ /lbs. / 1,982′ /lbs.
X Cross Travel of Column: 71″ – 1,083″
Y Vertical Travel of Headstock: 79″ / 98″ / 118″ / 138″ / 157″ / 177″ / 197″ / 216 1/2″ / 236″
W Axis Spindle Travel: 39″
Z Ram Travel: 61″
Rapid Feed X, Y: 787″ /Min. / 590 1/2″ /Min.
Rapid Feed Z, W: 787″ /Min.
Rotary Table (Optional):
Max. Table Load: 33,069 lbs. / 44,092 lbs. / 55,115 lbs. / 88,184 lbs. / 110,231 lbs. / 176,369 lbs. / 220,462 lbs.
Max. Table Size: Many Different Table Sizes Available – Call for more Information and Available Options
Contact us for special pricing and availability
FOB Factory
