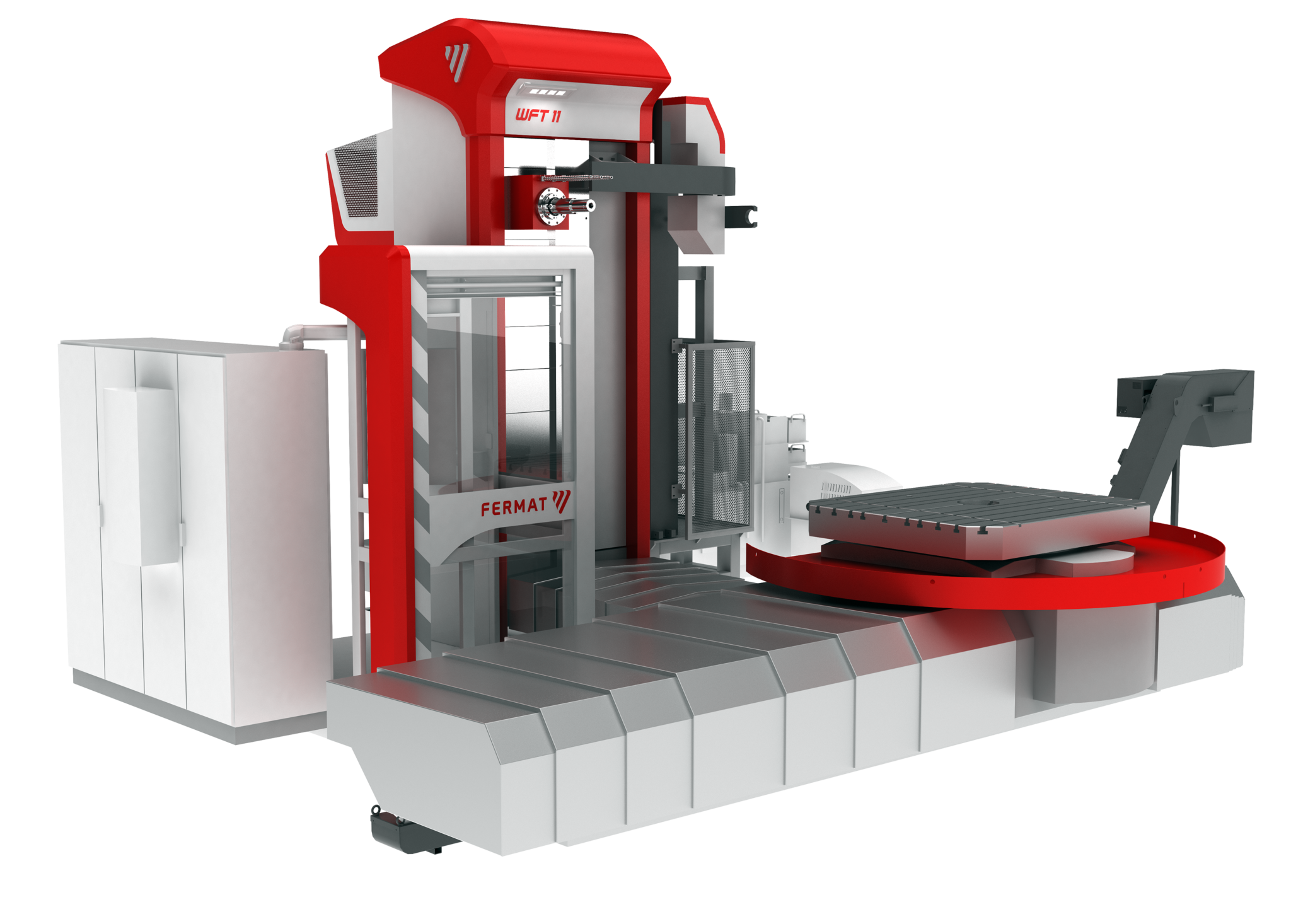

Lucas Precision CNC Horizontal Boring Mill, WFT 11

Inventory # 8236

Model: WFT 11

Description:

Horizontal Boring Mill WFT 11 CNC is a smaller version of Fermat-Lucas Precision’s bestselling machine, the WFT 13 CNC. The ball screw of the Y-Axis (Diameter of 2 1/2″), its rigid column made of grey cast iron, and its powerful spindle with a diameter of 110mm (4.33″) exemplifies the quality of this machine

The high accuracy of WFT 11 is supported by the use of reliable components such as linear scales or monitoring and stabilizing temperature systems. Moreover high positioning precision is achieved of by two servos on the B-Axis that prevent backlash of the rotary table as part of the standard configuration

Specifications:

Diameter of Spindle: 3.93″ or 4.33″

Taper of Spindle: ISO50 / BT50 / CAT50

Range of Spindle Speed: 3,000 RPM (4,000 RPM)

Main Power (CNC Heidenhain or Siemens CNC): 26 HP / 39 HP

Max. Torque (CNC Heidenhain or Siemens CNC): 701′ /lbs. / 1,052′ /lbs.

Main Power (CNC Fanuc): 29.5 HP / 35 HP

Max. Torque (CNC Fanuc): 607′ /lbs. / 716′ /lbs.

X Cross Travel of Table: 79″ / 118″

Y Vertical Travel of Headstock: 49″ / 67″ / 79″

Z Longitudinal Travel of Column: 49″ / 67″

W Spindle Travel: 29″

Rapid Feed X, Y, Z, W – Box Guideways: 315″ /Min. (Opt. 551″)

Rapid Feed B: 2 RPM (Opt. 4 RPM)

Max. Table Load: 22,046 lbs.

Table Size: 47″ x 47″ / 47″ x 55″ / 55″ x 63″ / 63″ x 63″ / 55″ x 71″

Contact us for special pricing and availability

FOB Factory
