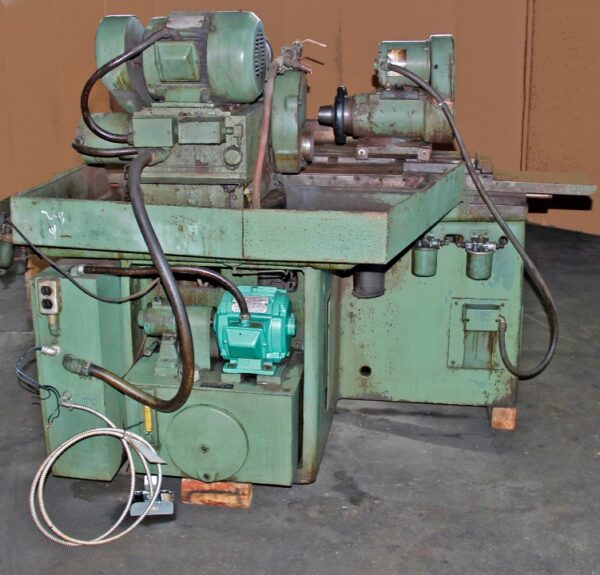

Landis 10″ x 20″ Universal Cylindrical Grinder, 10X20 1R

$8,450.00


Shipping: Add to Cart to Calculate

In stock

SKU: 10X20 1R

Inventory #: 5650

Category:

Condition:

Type:

Brand:

Description

Landis 10″ x 20″ Universal Cylindrical Grinder, 10X20 1R

Inventory # 5650-K

Model: 10X20 1R

S/N: 826-52

Made in USA

Specifications:

Nominal Swing Over Table: 10″

Max. Swing Over Table: 10 7/8″

Distance Between Centers: 20″

Table:

Swivel: 30° – 90°

Table Swivel: 20° – 4″ per Foot

Hydraulic Table Traverse: 2 – 240 IPM

Traverse per Turn of Handwheel: .200″

Traverse Handwheel Graduations: .001″

Wheelhead:

Swivel: 90° Left and Right

Wheel Size: 12″ x 1″ x 5″

Wheel Speed: 6,300 FPM

Max. Hydraulic Infeed – on Diameter: .090″

Min. Feed Graduations – on Diameter: .000050″

Rapid Infeed Stroke: 1″

Wheelhead Motor: 3 HP

Workhead:

Workhead Swivels Toward Wheelhead: 90°

Workhead Swivels Away from Wheelhead: 30°

Workhead Spindle Speeds (6): 60 – 600 RPM

Workhead Spindle Nose: A2, 5″

Workhead Motor: 1/4 HP

Hydraulic System Motor: 1 HP

Equipment Included:

Universal Wheelhead and Universal Workhead

Hydraulic Table Traverse

Solgren Spin Type Collet Closer

Bijur Lubrication System

Mechanical Specifications:

Dimensions: 78″ x 60″ x 60″ H

Weight: approx. 4,200 lbs.

FOB Our Baltimore, MD Warehouse

Please Note: This Machine is Being Sold As-Is

Additional information

Weight 4800 lbs
