Description
Koike Aronson Ransome 3000 lbs. Gear Driven Welding Positioner, HD30
Inventory # 5066
Model: HD30
Made in USA
Specifications:
Rotation: 3,000 lbs. @ 12″
Load Torque: 36,000 lbs.
Tilt: 135° in 20 Sec.
Load Torque: 56,250 lbs.
Table Size: 36″ x 36″
Table Flat:
Min. Height: 34 1/2″
Max. Height: 54 1/2″
Adjustable Increments: 5″
Motor: 2 HP / 460v, 480v / 3ph
Standard Features:
3,000 Pound Load Capacity
36″ x 36″ Table, Swivels 60°
135° Powered Forward Tilt
Height Adjustment
50:1 Variable Speed Drive
Low Voltage Hand Control Pendant
AC Brake Motor
90,000 PSI Aluminum-Bronze Wormgear Drive is Self-Locking to Prevent Accidental Load Start-Up
Drive Reduces Back Driving
All Steel Welded Gearbox
NEMA 12 Electricals
Pin-Through Post Manual
Utilizes Double Tilt Gears Which Stabilize Loads and Prevent Chassis Warpage
Features Up-Right Motors Safely Mounted within the Chassis and Straddle Supported Tilt Pinions to Prevent Misalignment of the Rotational Drive Gearing
Adjustable Limit Switch Triggers
Safety Disconnect Switch with Overload Protection
115v Remote Pendant with 12′ Cable
Mechanical Specifications:
Shipping Weight: approx. 2,100 lbs.
Contact us for special pricing and availability
FOB Factory

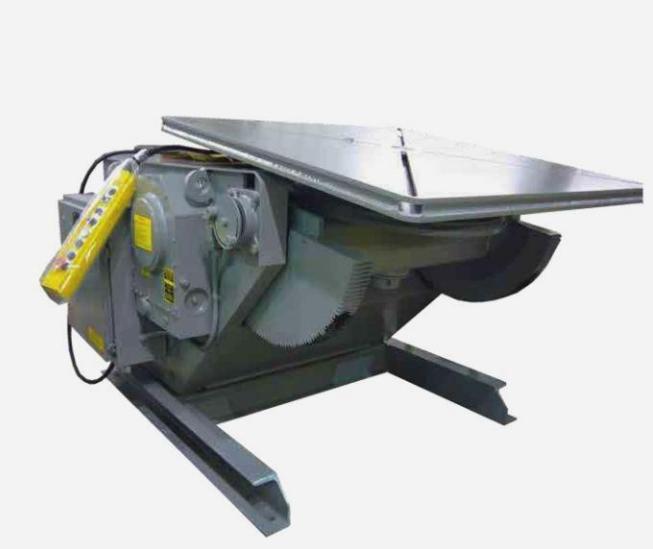

Please Note: Stock Photo Represents the Model Series and May Differ Slightly from the Specific Model Purchased
