Description

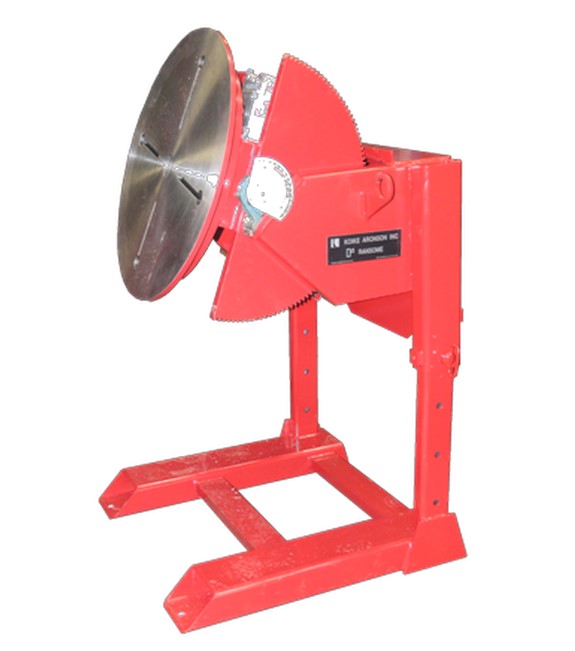

Koike Aronson Gear Driven Manually Adjustable Positioner, 10P
Inventory # 9303
Model: 10P
Specifications:
Capacity: 1,000 lbs. Load Capacity, Center of Gravity 6″ Overhang, 6″ Off-Center
Rotation: .04 – 2 RPM @ 6,000 lb. in Torque, 1/2 HP AC Motor, Variable Frequency Drive
Tilt: 135° Forward Tilt, 10,500 lb. in Torque, .4 RPM (90° in 38 Seconds) 1/2 HP Brake Motor; 4.5″ Inherent Overhang
Table: 30″ Diameter Machined Table Top, with (4) Radial T-Slots for 1/2″ Diameter Bolts, 2.500 x 1/2″ Deep Pilot, 1 3/4″ through
Flat Table Height: Min. 32 1/2″ from Floor, Max. 50 1/2″, Manually Adjustable in 6″ Increments
Weld Ground Current: 1,000 Amp
Voltage: 460/3/60
Standard Features:
Variable Speed SCR Solid State Electronic Drives
Machined Table
Unitized Tilt Motor and Drive
135° Forward Tilt
Welding Chucks Available
Mechanical Specifications:
Shipping Weight: 1,180 lbs.
FOB Factory
