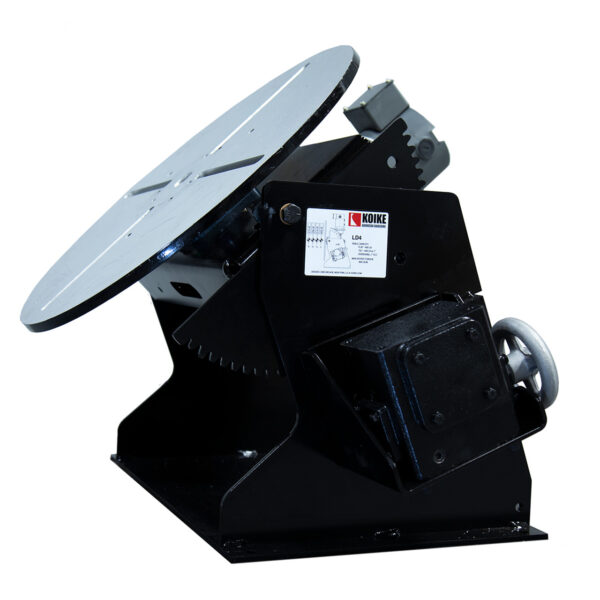

Koike Aronson 400 lbs. Bench Welding Positioner, LD4
Inventory # 9301
Model: LD4
Specifications:
Max. Load: 400 lbs. with a Center of Gravity 1″ Above the Table and 1″ Eccentric from the Table Rotation Center
Rotation: .25 to 6.5 RPM, Variable Speed @ 400″/ lbs.
Tilt: 90° Forward Tilt – Powered by Handwheel
Table: 20 1/2″ with Four T-Slots for 1/2″ Bolts
Spindle Through Hole: 3/8″ ID
Voltage: 115v / 1ph, 50-60 Hz
Standard Features:
Variable speed powered by a DC motor and drive produces a rotational torque of 400″ /lbs. The rotational speed is reversible and infinitely variable over the range of .25 to 6.5 RPM. Rotation motor and drive reducer are unitized
Manual hand wheel operated tilt gearbox provides infinite tilt angle adjustment
Freestanding base with heavy-duty welded construction for bench or pedestal mounting. 300 amps ground current conduction
Rotation forward, reverse, stop switch, and variable speed control potentiometer. Remote momentary off/on foot switch is provided with cable
Welding Chucks Available
FOB Factory – Contact us for Pricing and Availability
