Description

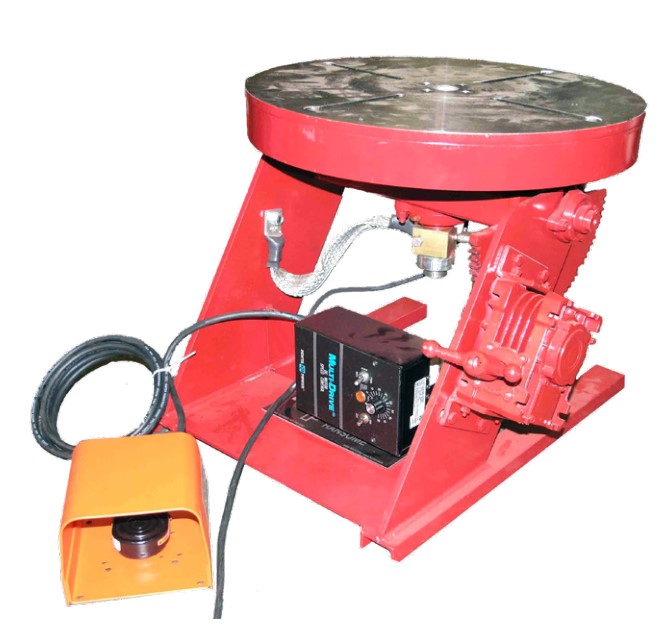

Koike Aronson Bench Welding Positioner, B3
Inventory # 9302
Model: B3
Specifications:
Max. Load: 300 lbs. @ 3″ Off Table and 3″ Eccentric
Rotation: 0.06 to 2.5 RPM Variable Speed @ 900 lb.in Torque
Tilt: 135° Forward Tilt – Powered by Handwheel
Electricals: SCR DC Drive with Ready Light Toggle Disconnect Switch 1-Turn Speed Pententiometer CW-CCW Selector Switch Remote On/Off Foot Switch, Primary Cable and Plug
Weld Ground Current: 500 Amp
Voltage: 15V/1PH/50-60HZ, Remote ON/OFF Foot Switch
Standard Features:
Variable Speed SCR Solid State Electronic Drives
Machined Tables
Standard Foot Switch Control
Unitized Rotation Motor and Drive
135° Forward Tilt
Welding Chucks Available
Mechanical Specifications:
Shipping Weight: 202 lbs.
FOB Factory
