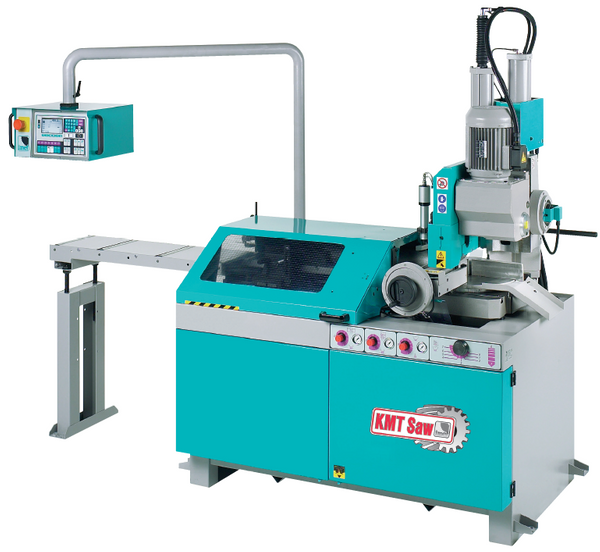

Kalamazoo Machine Tool 15″ Automatic Non-Ferrous Cold Saw, C 370 A-NC
Inventory # 3205
Model: C 370 A-NC
Made in Italy
Description:
The C 370 A-NC is a rugged, heavy-duty vetical column ciruclar sawing machine. Vertical column constructions provides extremely stable saw frame guidance and stability with vibration free sawing. Infinitely variable blade speeds offer flexibility to fine tune the settings for sawing even the most difficult materials. The C 370 A-NC operaters control is the easiest to use programmable saw control on the market
Specifications:
Capacity:
Round:
@ 90°: 4″
@ 45° Right: 4″
@ 45° Left: 4″
@ 60° Right: 4″
Square:
@ 90°: 4″
@ 45° Right: 4″
@ 45° Left: 4″
@ 60° Right: 3 1/2″
Rectangular:
@ 90°: 3.5″ x 7″
@ 45° Right: 4 3/4″ x 3 1/2″
@ 45° Left: 4 3/4″ x 3 1/2″
@ 60° Right: 3 1/2″ x 3 1/2″
Blade Speed: 13 – 89 RPM (Variable)
Blade Size: 12 1/2″ – 14 1/2″
Mounting: 40mm Arbor, with 2 Pins, 10mm on 63mm Bolt Circle
Motor: 4 HP / 208v, 230v, 460v / 3ph
Standard Features:
Heavy Duty Drive, TEFC Motor
Rotary Blade Brush
Power Top Clamp Vise
Full Electronic Control/Information System
Height/Depth Cut Adjustments
Hydraulic Oil
Variable Clamping Pressure
Blade Speed Indicator
Disconnect Switch
Totally Enclosed Transmission
24 Volt Controls
HSS Sawblade
Full Coolant System
Operators Tools
All Safety Guards
6′ of In-Feed Conveyor
Mechanical Specifications:
Dimensions: 98″ x 36″ x 64″ H
Weight: approx. 1,875 lbs.
Contact us for special pricing and availability
FOB Factory
Optional Equipment:
47″ Feeder: Contact for Pricing and Availability
