Description

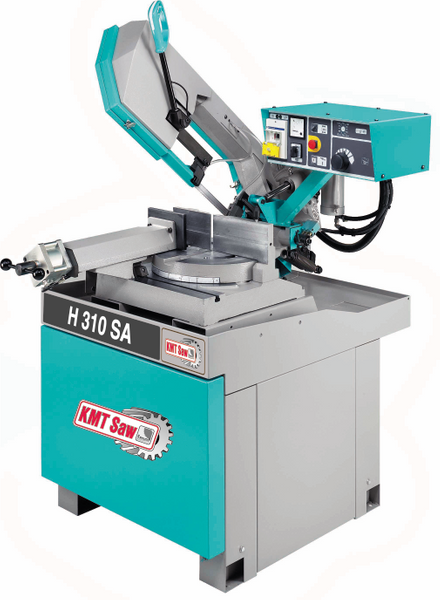

Kalamazoo Machine Tool 10″ Semi-Automatic Mitering Band Saw, H 310 SA
Inventory # 7843
Model: H 310 SA
Made in Italy
Description:
This fully hydraulic semi-automatic band saw offers increase productivity with full cycle operation. Mitering 45° to the left and 60° to the right. With the push of the start button or a click of the optional foot switch the vise will clamp, the sawhead will make the cut, the head will return to just above the material and the vise will unclamp
Specifications:
Capacity:
@ 0°:
Round: 10″
Square: 9 1/2″
Rectangle: 7″ x 11″
@ 45° Right:
Round: 8 1/4″
Square: 7 1/2″
Rectangle: 6 1/4″ x 7 3/4″
@ 60°:
Round: 5 1/4″
Square: 4 1/4″
Rectangle: 3 3/4″ x 5″
@ 45° Left:
Round: 17″
Square: 6 1/4″
Rectangle: 3 3/4″ x 7″
Vise Opening: 12″
Blade Size: 109″ x 1″ x 0.035″
Blade Speed: 60 – 360 FPM
Motor: 2 HP / 230v, 460v / 3ph
Standard Features:
Variable speed
Easy operator controls
Vise mounted T-slot with quick handle
Amp-meter
Material sensor
Carbide guides with backup rollers
Standard Equipment:
One Bi-Metal Blade
Low Voltage Control
Totally Enclosed Worm Gear Transmission
Full Coolant System
Full Blade Guarding
Operators Manual Parts List/Schematics
Tool Kit
Mechanical Specifications:
Dimensions: 56″ x 48″ x 37″ H (Workheight)
Weight: approx. 1,000 lbs.
Contact us for special pricing and availability
FOB Factory
