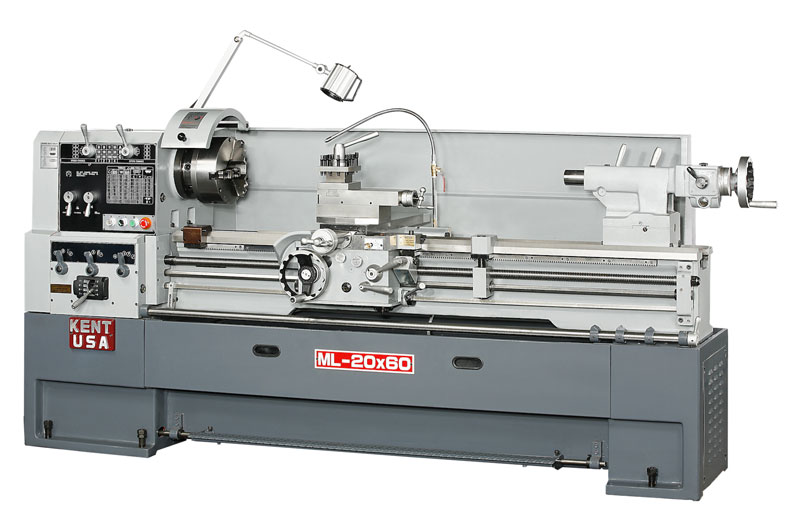

Kent 20″ x 57″ Manual Precision Lathe, ML-2060T
Inventory # 8114
Model: ML-2060T
Read the Kent Model ML-2060T PDF Here
Specifications:
Swing Over Bed: 20″
Swing Over Cross Slide: 14″
Swing Over Gap: 27 1/2″
Width of Bed: 12″
Distance Between Centers: 57″
Cross Slide Travel: 12″
Top Slide Travel: 4 3/4″
Spindle Speeds: 36 – 1,800 RPM (12 Steps)
Through Hole Diameter: 3.125″
Spindle Nose: D1-6
Spindle Bore Taper: MT # 7 – MT # 4
Thread – Standard: 45 TPI
Thread – Metric Pitch: 39mm
Longitudinal Feed: 0.0015″ – 0.04″ /rev.
Cross Feed: 0.00075″ – 0.02″ /rev.
Quill Travel: 5″
Quill Diameter: 2.3″
Quill Bore Taper: MT # 4
Motor: 7.5 HP
Standard Features:
7.5 HP spindle motor, 12 speeds
3.125″ spindle through hole
Solid full length casting base with front loading chip tray for easier cleaning
Adjustable overload feed clutches
Quick reversal feed from apron
Full-length safety foot brake
Spindle jog button control
One-shot lubrication for apron, carriage, and bedways
Multi-position adjustable feed position stops
Dual inch/metric calibrated tailstock quill with knockout tang; heavy duty two speed tailstock
Dual inch/metric dials with quick-change sleeve
Standard Accessories:
3-Jaw Chuck
Steady Rest
Follow Rest
Coolant System
Full-Length Splash Guard
Worklight
Chuck Cover
Thread Chasing Dial
Toolbox with Standard Tools
3-Position Carriage Stop
Bed Mount Carriage Stop
Mechanical Specifications:
Shipping Dimensions: 108″ x 42″ x 66″ H
Shipping Weight: approx. 5,400 lbs.
Contact us for special pricing and availability
FOB Factory
