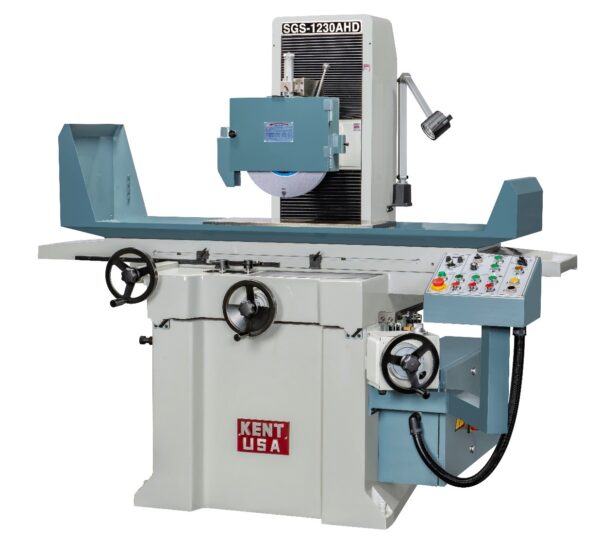

Kent 12″ x 30″ Automatic Surface Grinder, SGS-1230AHD

Shipping: Add to Cart to Calculate

SKU: SGS-1230AHD

Inventory #: 8140

Categories: ,

Condition:

Type:

Brand:

Description

Kent 12″ x 30″ Automatic Surface Grinder, SGS-1230AHD

Inventory # 8140

Model: SGS-1230AHD

Specifications:

Max. Grinding Surface: 12″ x 30″

Max. Longitudinal Travel of Table: 33″

Max. Cross Travel of Table: 13″

Max. Spindle Center to Tabletop: 23.6″

Table Speed: 20 – 82′ /Min.

Grinding Wheel: 14″ x 1 1/4″ x 5″

Spindle Speed: 60 Hz – 1,750 RPM, 50 Hz – 1,450 RPM

Vertical Handwheel (Graduation): 0.0005″

Vertical Handwheel (Revolution): 0.100″

Crossfeed Handwheel (Graduation): 0.001″

Crossfeed Handwheel (Revolution): 0.200″

Automatic Downfeed Increment (10 Steps): 0.0001″ – 0.001″

Spindle Motor: 5 HP

Standard Features:

3-Axis automatic movement with auto incremental down feed and electronic cross feed

Precision hand-scraped table and saddle ways for smooth and long-lasting performance

High-column design with 23″ spindle to the table for extra clearance under the wheel

Rapid elevation motor for quick and easy positioning of the grinding wheel/head

A centralized automatic lubrication system provides metered lubrication to all points

Safe 24V control circuit power keeps high-voltage circuits away from operator controls

Standard Accessories:

Grinding Wheel

Wheel Flange

Wheel Balancing Base

Wheel Balancing Arbor

Diamond Table Dresser Base and Tip

Leveling Bolts and Pads

12″ x 28″ Electromagnetic Chuck and Control

Overhead Parallel Dresser

Dust-Suction Coolant System

Work Light

Toolbox with Tools

Mechanical Specifications:

Shipping Dimensions: 89″ x 69″ x 87″ H

Shipping Weight: approx. 4,950 lbs.

FOB Factory – Contact us for Pricing and Availability

Additional information

Weight 5250 lbs
