Description

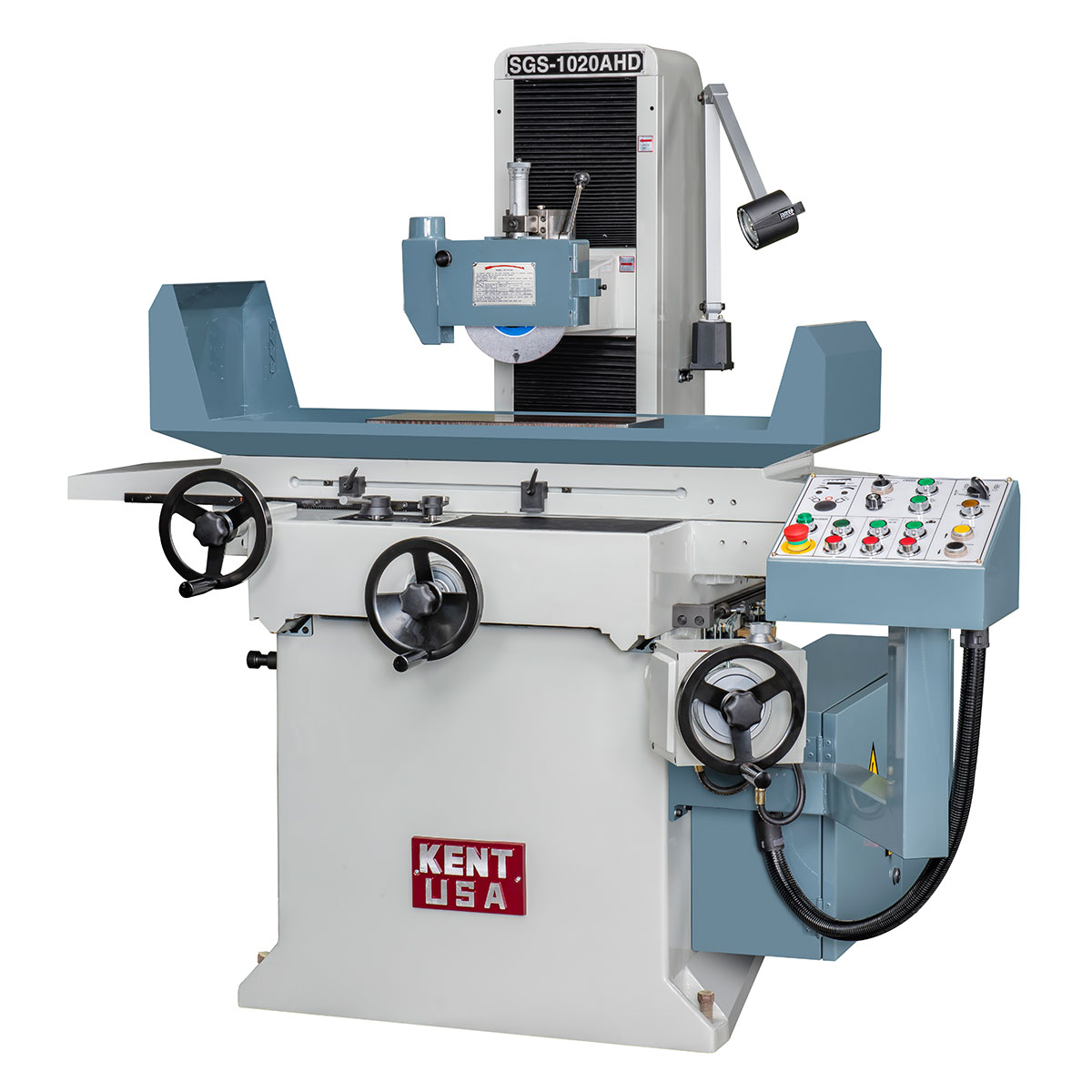

Kent 10″ x 20″ Automatic Surface Grinder, SGS-1020AHD
Inventory # 8139
Model: SGS-1020AHD
Read the Kent Model SGS-1020AHD PDF Here
Specifications:
Table Travel: 22.2″
Saddle Travel: 10 1/2″
Working Capacity: 10″ x 20″
T-Slot: 1 x 9/16″
Spindle Speed: 3,500 RPM
Grinding Wheel: 8″ x 1/2″ x 1 1/4″
Vertical Graduation: 0.0005″
Vertical Revolution: 0.100″
Auto Downfeed Increment: 0.0001″, 10 Steps
Spindle to Table: 19.7″
Motor: 2 HP
Standard Features:
10″ x 20″ working capacity
3-axis automatic movement with incremental downfeed and electronic auto-crossfeed
Precision hand scraped turcite table and saddle ways for smooth and long lasting performance
High column design with 19″ spindle center to table for extra clearance under the wheel
Rapid elevation motor for quick and easy positioning of grinding head/wheel
Centralized automatic one-shot lubrication system provides lubrication to all points
Safety 24V control circuit power
Standard Accessories:
Grinding Wheel
Wheel Flange
Wheel Balancing Base
Wheel Balancing Arbor
Diamond Table Dresser Base and Tip
Leveling Bolt and Pads
Overhead Parallel Dresser
Dust-Suction Coolant System
Permanent Chuck
Work Light
Toolbox with Tools
Mechanical Specifications:
Shipping Dimensions: 82″ x 66″ x 81″ H
Shipping Weight: approx. 3,520 lbs.
Contact us for special pricing and availability
FOB Factory
