Description

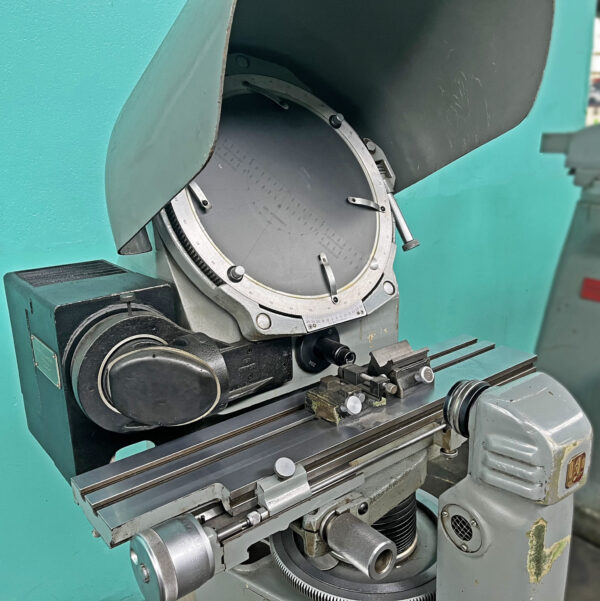

Jones & Lamson PC-14A Optical Comparator
Inventory # 9399
Model: PC-14A
S/N: E45701
Specifications:
Screen Diameter: 14″
Size of Measuring Table: 6″ x 30″
Measuring Capacity:
Longitudinal Travel: 8″
Vertical Travel: 4″
Cross Travel for Focusing: 1 3/8″
Angular Measuring Capacity: 360° Chart Rotation
Helix Rotation (Table Swivel, Left & Right): 15°
Distance (Lens to Centerline to Table): Min. 1 1/4″ to 5 1/4″ Max.
Power Requirements: 115v / 1ph
FOB Our Baltimore, MD Warehouse
