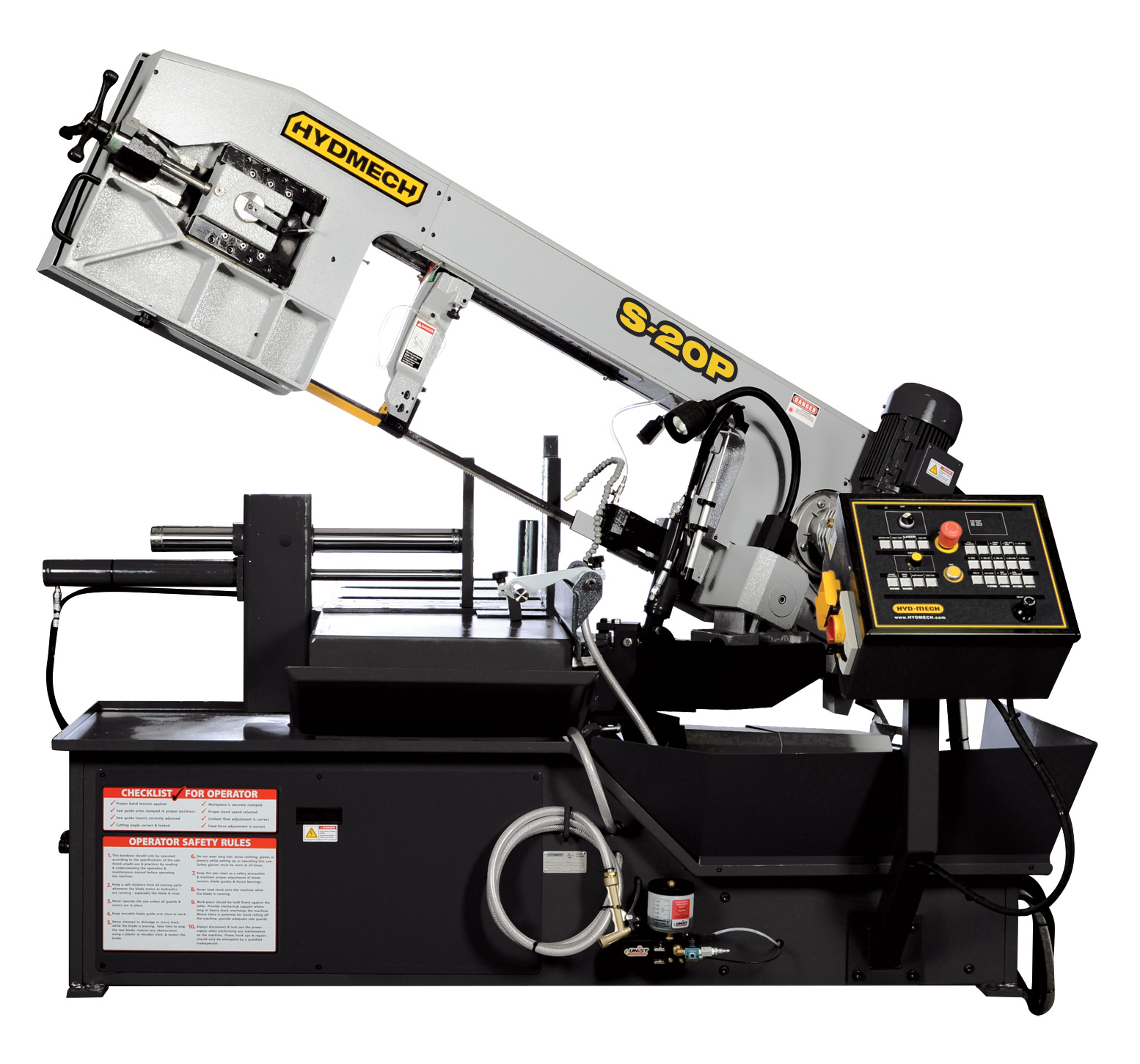

Hydmech 13″ x 18″ Semi-Automatic Scissor Style Band Saw, S-20P
Inventory # 9109
Model: S-20P
Description:
The S-20P semi-automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications
Its digital LCD display shows machine mode, pieces cut, blade speed, blade tension, amperage draw of blade motor, cut duration, overall machine run time, and head position
Specifications:
Capacity:
Rectangular:
@ 90°: 13″ x 18″
@ 45°: 13″ x 10 3/4″
@ 30°: 13″ 7 3/4″
Round:
@ 90°: 13″
@ 45°: 12″
@ 30°: 8 1/2″
Blade Size: 14′ 10″ x 1″
Blade Speed: 45 – 330 SFM
Coolant Tank Capacity: 6 Gallons
Work Load: 5,000 lbs.
Table Height: 31″
Motor: 3 HP / 480v / 3ph (208v, 240v, or 575v power sources will require a transformer)
Standard Features:
Easy swing, heavy duty cast iron saw head that can swing up to 60° in one direction
Full capacity, full stroking hydraulic vise
3HP. True direct blade drive – no belts/pulleys
On-demand hydraulics save energy and money
36″ material in-feed roller table and 19″ out-feed table
Cast iron band wheels
Swing away, semi-automatic operator control panel
Replaceable blade brush
Robust steel base
East-to-read angle scale with angle locking mechanism
Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail
Gravity ged sawing head with infinite down feed adjustment
Mechanical band tensioning with digital read out
Pre-set, replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
Mechanical Specifications:
Dimensions: 92″ x 75″ x 52″ H
Weight: approx. 2,500 lbs.
FOB Factory
