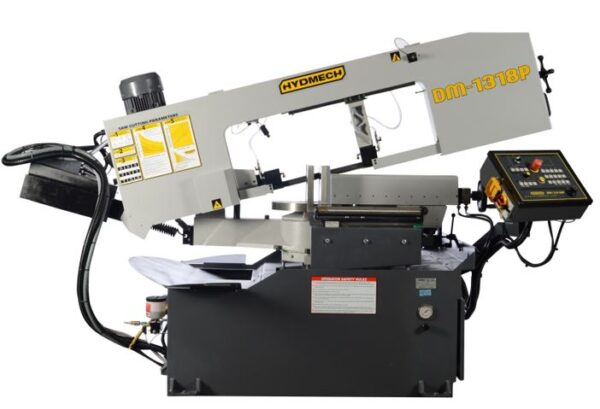

Hydmech 13″ x 18″ Double Miter Semi-Automatic Band Saw, DM-1318P
Inventory # 9051
Model: DM-1318P
Description:
Its versatile swing head with easy-to-read angle scale saves operator time. The heavy-duty gearbox and motor assembly ensures the DM-1318P will deliver maximum productivity. The cast iron double swivel head features an easy-to-read angle scale and “quick” stops at 90, 45, and 60 degree positions
The cast iron vise slides on linear ways which can be easily positioned to either the left or right side of the head and incldues a quick release mechanism for rapid positioning
Specifications:
Capacity:
Rectangular:
@ 90°: 13″ x 17 3/4″
@ 45° Left: 11 3/4″ x 11 3/4″
@ 45° Right: 11 3/4″ x 11 3/4″
@ 30° Left: 7 3/4″ x 7 3/4″
@ 30° Right: 7 3/4″ x 7 3/4″
Round:
@ 90°: 13″
@ 45° Left: 11 3/4″
@ 45° Right: 11 3/4″
@ 30° Left: 7 3/4″
@ 30° Right: 7 3/4″
Blade Size: 14′ 9″ x 1 1/4″
Blade Speed: 65 – 330 SFM
Coolant Tank Capacity: 21 Gallons
Table Height: 35″
Motor: 5.5 HP / 480v / 3ph (208v, 240v, or 575v power sources will require a transformer)
Standard Features:
Heavy duty cast iron saw head that can swing up to 60° both directions
5.5 HP true direct drive – no belts/pulleys
On-demand hydraulics save energy and money
Quick release, hydraulic cast-iron material vise on linear ways
Rotating table with cut line moves in tandem with sawing head
Mechanical band tensioning with digital readout
Gravity feed sawing feed
Automatic hydraulic head lifting in semi-automatic mode
Swing away, semi-automatic operator control panel
Replaceable blade brush
Robust steel base
Easy to read angle scale
Digital readout angle display
Adjustable guide arm with linear guide adjustments
Pre-set, replaceable carbide guide inserts
Safety door interlocks
Flood coolant
Laser light
Variable vise pressure
Mechanical Specifications:
Dimensions: 130″ x 69″ x 89″ H
Weight: approx. 2,515 lbs.
FOB Factory
