Description

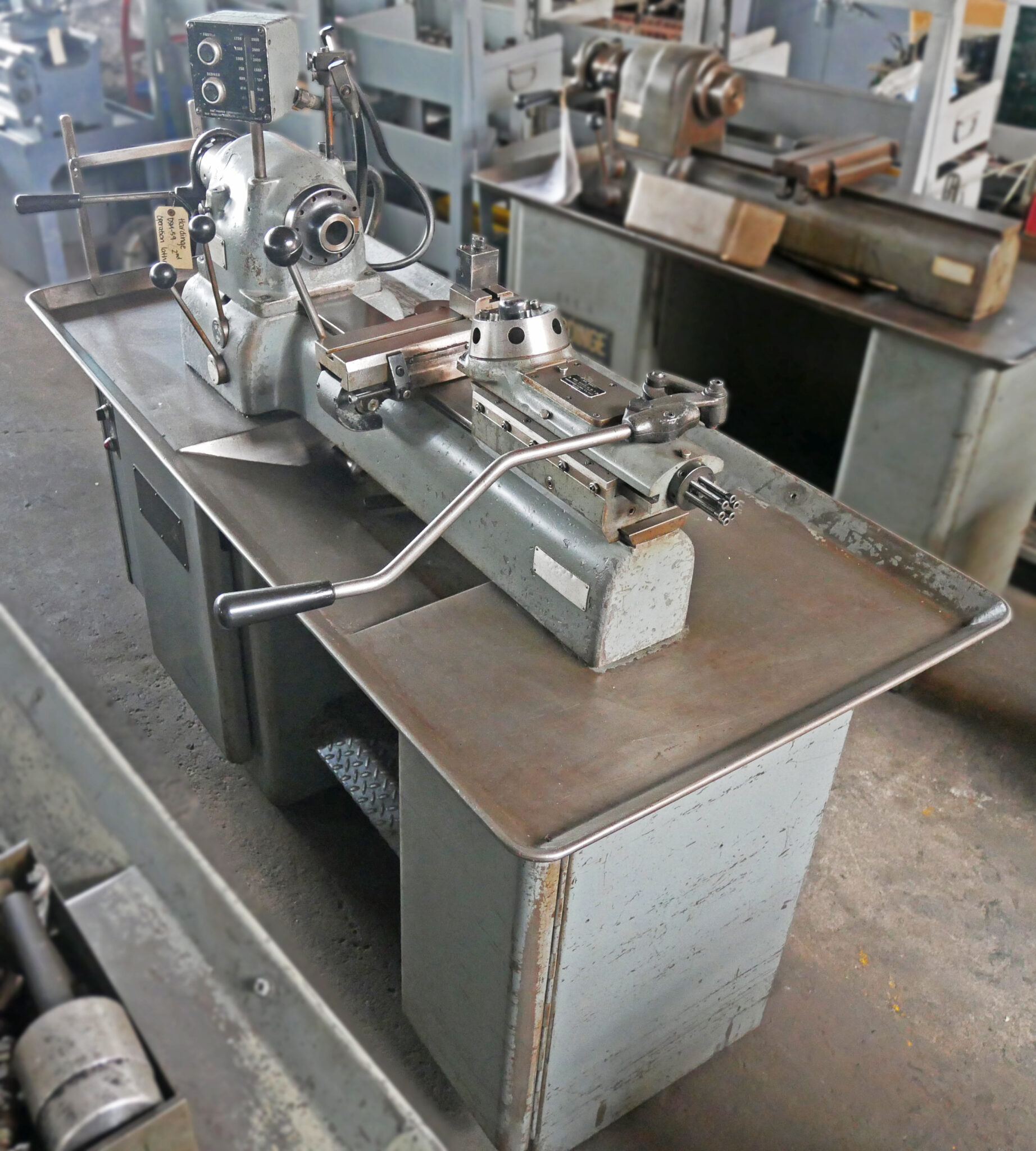

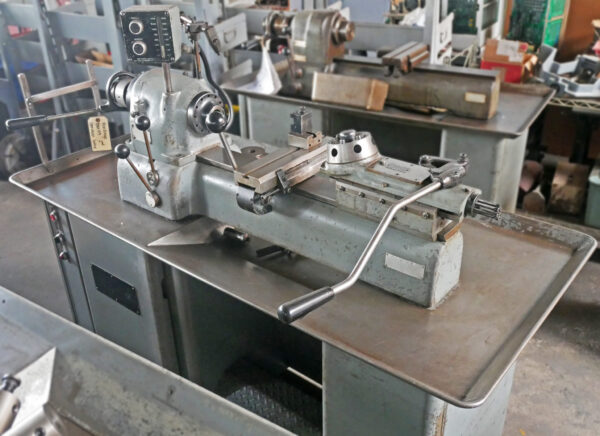

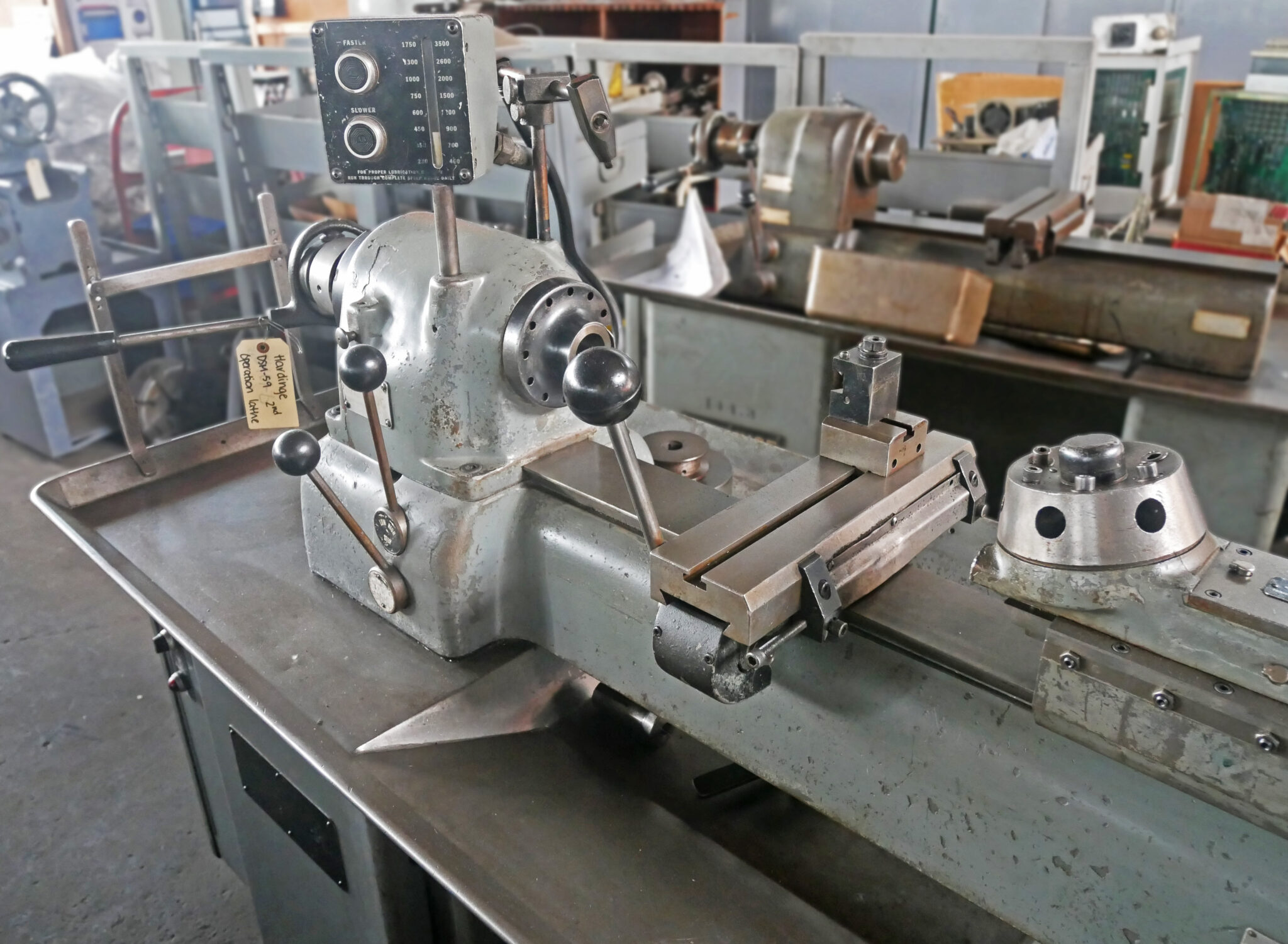

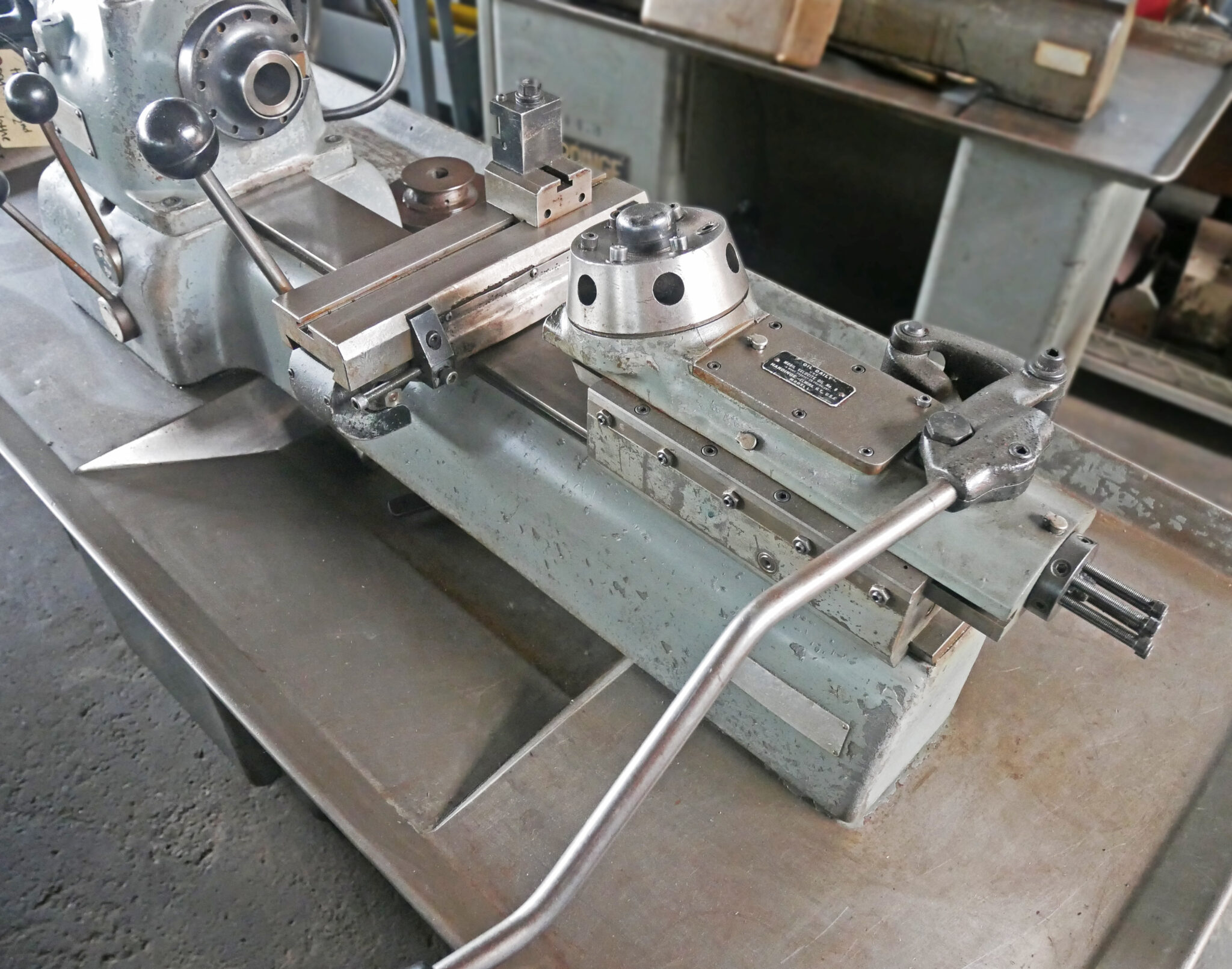

Hardinge 9″ x 36″ Second Operation Lathe, DSM-59
Inventory # 9401-P
Model: DSM-59
S/N: DV-59-13412
Specifications:
Swing Over Bed: 9″
Distance Between Centers: 36″
Travel Double Tool Cross Slide: 3 3/4″
Travel of Turret Slide: 4″
Diameter of Turret Holes: 3/4″
Spindle Speeds: 230 – 3,500 RPM
Motor: 1 HP / 220v / 3ph
Mechanical Specifications:
Dimensions: 72″ x 36″ x 60″ H
Weight: approx. 1,000 lbs.
FOB Our Baltimore, MD Warehouse
