Description

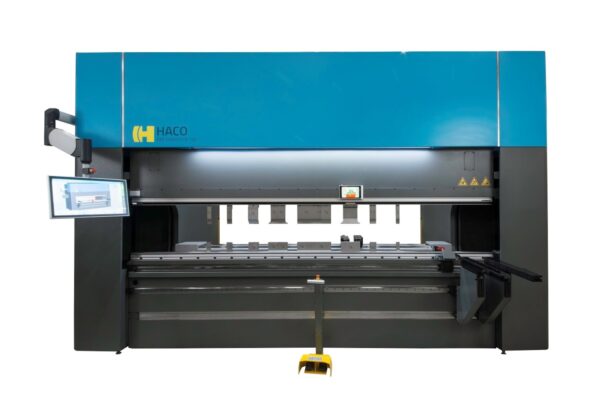

Haco 10′ x 220 Ton Multi-Axis Hydraulic CNC Press Brake with Hydraulic Clamping and CNC Crowning, PRM 220 10 8
Inventory # 7428
Model: PressMaster PRM 220 10 8
Specifications:
Working Length: 120″
Capacity: 220 Tons
Distance Between Housings: 102″
Gap: 17 3/4″
Daylight Opening: 21 1/4″
Stroke: 14.56″
Table Height: 36″
Fast Approach Speed: 472″ /Min.
Max. Working Speed: 18.9″ /Min.
Fast Return Speed: 401″ /Min.
Motor: 25 HP
Standard Features:
All steel welded interlocked construction
Beam driven by a motor-pump group and two push down hydraulic cylinders
Electro-hydraulic levelling and depth stop setting from the beam by SYNCHRO system
Automatic compensation of the side frame deflection by means of table reference measuring scales, giving feedback to the SYNCHRO system
Equipped with straight fingers with possibility of side support in the edges for a perfect gauging of parts. 2nd level with
same shape to support the plate and 3rd level on the finger
4-Axes backgauge with ball screws and linear guideways
Bend zone and back gauge illumination
CNC Crowning for New Standard PRO Tooling
PRO Hydraulic Clamping – The hydraulic clamping system can be opened and closed by means of the CNC control
FastBEND-3D MT Premium Control:
The FastBEND-3D MT Premium 24” control is suitable for generating and executing 2D and 2.5D workpieces
3D workpiece drawings can be imported in different formats by means of the PartManager mode on the controller. This allows to create the bending program ready for execution
The FastBEND-3D MT Premium 24” control is equipped with an industrial Multi Touch Screen from Beckhoff®
The screen is mounted on a special pendant arm which is adjustable in height for an ergonomic position for each operator
Multi Touch Technology with tablet features
Intuitive Interface with a minimum number of interactions to draw the workpiece (by Point to Point method or Smart Draft) and generate the corresponding program
Combined ‘numerical-graphical’ user interface
Smart Draft: Innovative drawing method for generating 2D workpieces
Multi-Tasking: Workpiece drawing with instantaneous collision detection and calculation of the bending sequence in the background (real-time solutions).
Step Previewer: Bar with possibility of horizontally scrolling of the bending steps visualizes all steps, in the development and production mode of a program
Combined Icons: Multiple functionalities by means of one single icon
Simulation Mode: Simulation run from the bending sequence before execution of the bending program
Equipment Included:
4-Axes Backgauge with ball screws and linear guideways (X-R-Z1-Z2)
Variable Inverter Drive for Main Motor
PressMaster 10′ no CE
(2) 29″ Movable Sheet Supports, 1 T-Slot and 1-Tilting Stop
Mechanical Specifications:
Dimensions: 167″ x 72″ x 117″ H
Weight: approx. 26,455 lbs.
Contact us for special pricing and availability
FOB Factory
