Haco 10′ x 1/4″ Hydraulic Guillotine Shear with 40″ Backgauge, TS-3006
Inventory # 7414
Model: TS-3006
Specifications:
Capacity: 1/4″ (Mild Steel)
Maximum Cutting Length: 10′

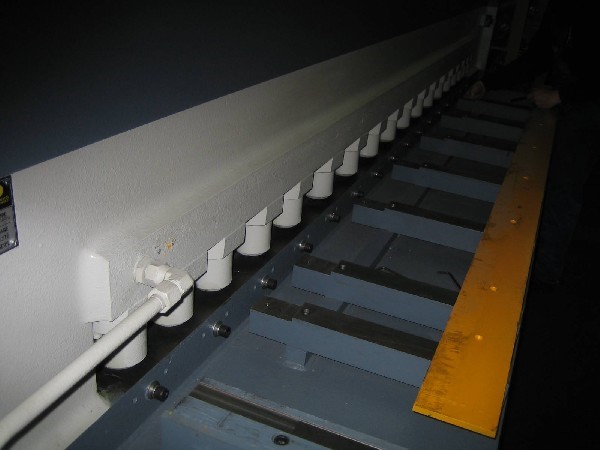

Number of Holddowns: 18
Min. Cutting Angle: 0.5°
Max. Cutting Angle: 3°
Strokes per min (small angle): 14
Strokes per min (big angle): 8
Working Height: 30″
PSI: 68,000
Motor: 10 hp / 220 v / 240 v / 3 ph
Standard Features:
Electro-Hydraulic Adjustment of the Rake Angle
Quick manual blade gap adjustment at the front
The hold-downs are equipped with tilting feet which retract completely in the interior hold-down housing
A large number of hold-downs with big clamping surface ensures optimal clamping of the plate.
Beam driven by a motor-pump group and two bottom – pull-down cylinders
Cutting line illumination with wire, a narrow shadow line is projected on the plate to cut. Used for cutting marked plates
SP9 Shear Control:
· 1 position pre-selection control from the back gauge with digital readout.
· 7-segment LED displays.
· Pre-selection of electro-hydraulic cutting angle setting with read-out.
· Pre-selection of cutting length.
· Programmable retraction.
· Manual blade-gap setting.
· (Preset) stroke counter up or down with 0-stop.
· Mm or Inch.
Equipment Included:
40″ Front-Operated Motorized Backgauge
40″ Squaring Arm with scale, T-slot and tilting stop
Shearing table with plate support arms
Finger protection with hand gaps guards between holddowns
(1) Set of 10′ blades for stainless steel
(3) Ball transfer units
Cutting line illumination with wire
Foot Pedal
Mechanical Specifications:
Overall Dimensions: 150″ L x 106″ W x 69″ H
Overall Weight: approx. 9,900 lbs.
FOB Factory
