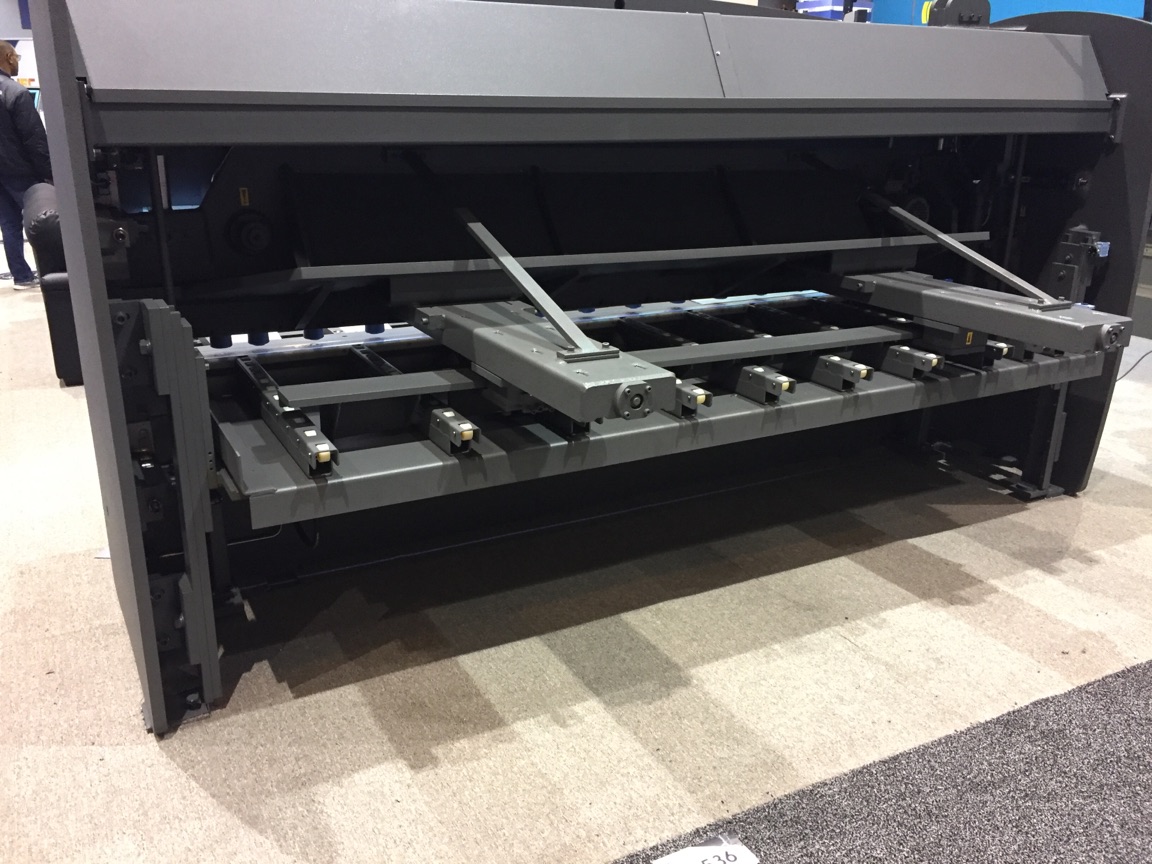

Haco 10′ x 1/4″ CNC Programmable Hydraulic Guillotine Shear with 40″ CNC Backgauge, HSLX-3006
Inventory # 7416
Model: HSLX-3006
Specifications:
Capacity: 1/4″ (Mild Steel)
Maximum Cutting Length: 10′
Number of Holddowns: 18
Min. Cutting Angle: 0.5°
Max. Cutting Angle: 3°
Strokes per min (small angle): 22
Strokes per min (big angle): 11
Working Height: 31″
PSI: 80,000
Motor: 15 hp / 220 v / 440 v / 3 ph
Standard Features:
Automatic Blade Gap Adjustment in function from the material thickness by means of 2 hydraulic cylinders
Electro-Hydraulic Adjustment of the Rake Angle with Digital Read-Out
A fully open space between side-frames enables easy removal of sheets or adaptation to a variety of sheet hold-up, conveying and stacking systems
A large number of hold-downs with big clamping surface ensures optimal clamping of the plate
The hold-downs are equipped with tilting feet which retract completely in the interior hold-down housing.
Beam driven by a motor-pump group and two top-push-down-cylinders
Cutting line illumination with wire, a narrow shadow line is projected on the plate to cut. Used for cutting marked plates
SC100T Shear Control with Touch Screen:
· CNC control SC100.
· LCD-display (5”).
· Memory capacity: Max 200 programs, max. 400 steps.
· Max 127 steps per program.
· Material list of max. 32 materials.
· Each program contains the basic cutting parameters such as material type or material thickness, blade gap and cutting angle setting.
· Electro-hydraulic blade gap setting by 2 cylinders.
· Stroke control adjustment.
· Automatic programmable retraction from the back gauge.
· Possibility of jog mode on back gauge.
· Backlash compensation, delayed sheet release.
· Mode Selection Inch-Metric.
· (Preset) stroke counter up or down with 0-stop.
· Language support.
· Plate support (optional).
**Optional Feature:
SBS “Sheet Back to Sender” (See this feature in the video)
Equipment Included:
40″ Front-Operated Motorized Backgauge
40″ Squaring Arm with scale, T-slot and tilting stop
Shearing table with plate support arms
(1) Set of 10′ blades for stainless steel
(3) Ball transfer units
Cutting line illumination (upper knife shadow, without wire)
Foot Pedal
Mechanical Specifications:
Overall Dimensions: 155″ L x 121″ W x 68″ H
Overall Weight: approx. 11,000 lbs.
FOB Factory
