Description

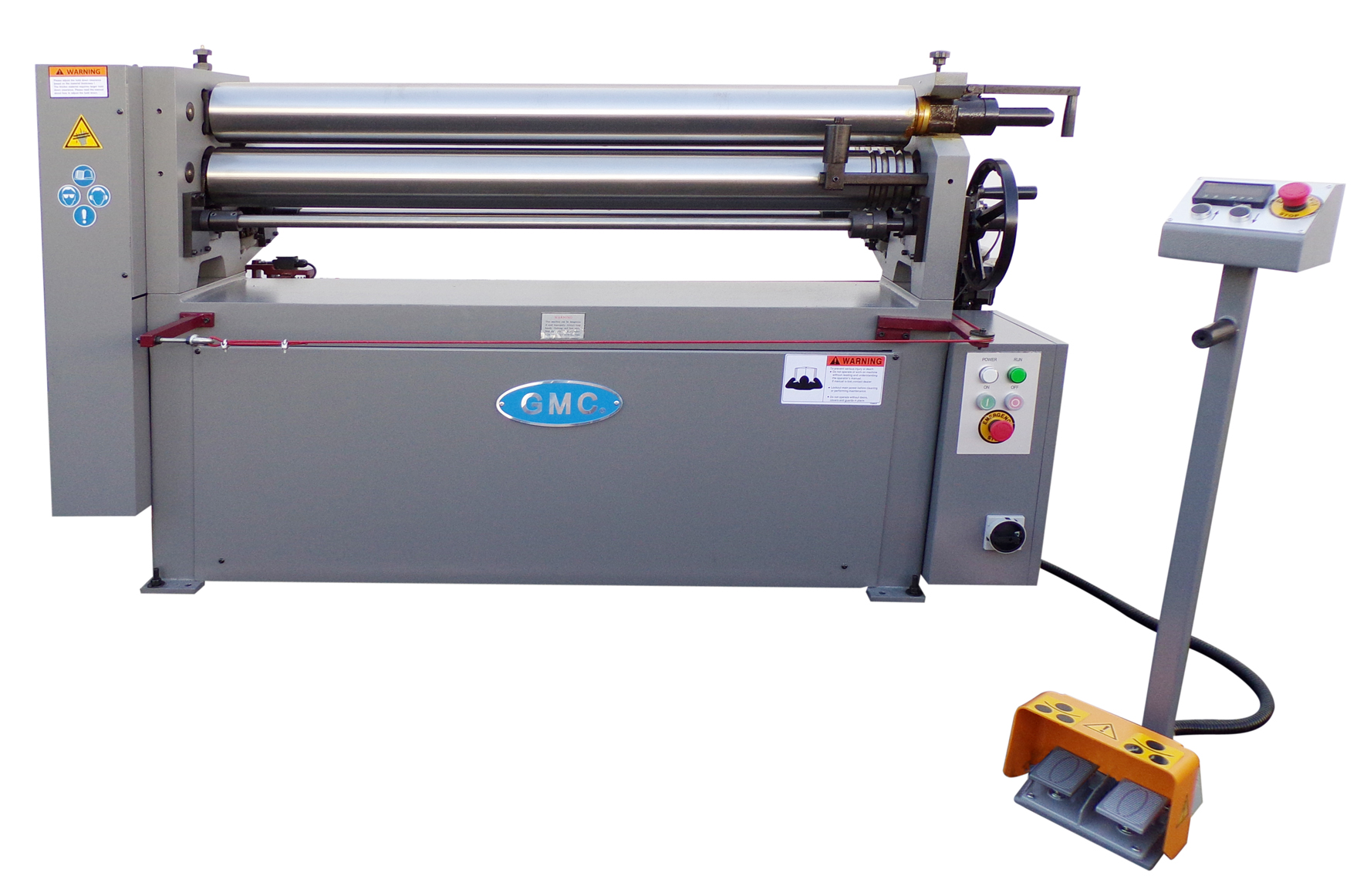

GMC 4′ x 1/4″ Initial Pinch Power Plate Bending Roll, PBR-0425E
Inventory # 7772
Model: PBR-0425E
Specifications:
Cutting Capacity:
Mild Steel: 4′ x 1/4″
Stainless Steel: 4′ x 3/16″
Min. Roll Diameter: 8 1/4″
Rolls Length: 4′ 3″
Rolls Diameter: 5 7/8″
Pre-Bend: 0.16″
Rolls Speed: 7 RPM
Rolls Opening: 1 5/8″
Oil Tank Capacity: 25 Gallons
Motor: 3 HP / 208v, 220v / 3ph
Standard Features:
ISO 9001 certified
Easy swing-out top roller
Standard cone attachment installed
(1) LED indicator for bending roll position
Safety line all around the machine for emergency stop
Heavy duty all steel welded machine construction
Planetary reduction gear and pump
All three rolls are made of high grade alloy steel
All rolls run forward and reverse
Safety type foot pedal control
Overload protection and disconnect switch
One year industrial warranty for parts
Standard Equipment:
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal and tool box
Mechanical Specifications:
Dimensions: 87″ x 36″ x 53″ H
Weight: approx. 4,650 lbs.
FOB Factory – Contact us for special pricing
