Description

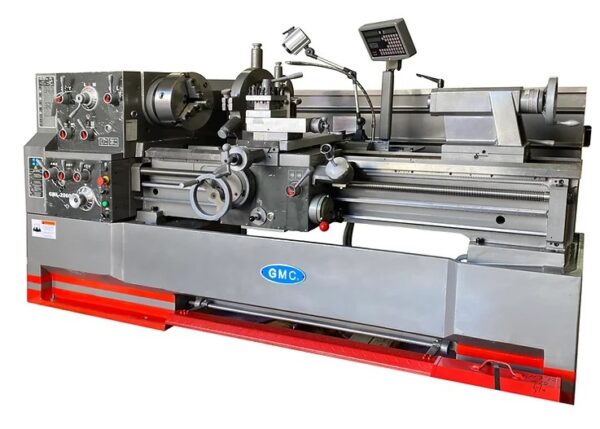

GMC 20″ x 80″ Heavy Duty Gap Bed Lathe, GML-2080
Inventory # 9355
Model: GML-2080
Specifications:
Max. Swing Over Bed: 20″
Max. Length of Workpiece: 80″
Max. Swing Over Cross Slide: 12 1/2″
Max. Swing in Gap: 29 1/8″
Width of Bed: 12″
Effective Length in Gap to Spindle: 6″
Effective Length in Gap to Chuck Jaws: 3 1/2″
Spindle Bore: 3 1/8″ – D1-8
Taper of Spindle Center: M.T. # 7
Spindle Speeds: 25 – 1,800 RPM / 12 Steps
Longitudinal Feeds: 0.0011 – 0.063 IPR, 42 Kinds
Cross Feeds: 0.0003 – 0.018 IPR, 42 Kinds
Inch Threads: 2 – 112 TPI, 60 Kinds
Metric Threads: 0.1 – 14 mm, 41 Kinds
Module Threads: 0.1 – 7 mm, 34 Kinds
Diametral Pitch Threads: 4 – 112 DP, 50 Kinds
Max. Travel of Top Slide: 5″
Max. Travel of Cross Slide: 11 1/4″
Spindle Length without Chuck: 17 1/2″
Leadscrew Length x TPI: 1 1/4″ x 4 TPI
Diameter of Tailstock Quill: 2 3/8″
Max. Travel of Tailstock Quill: 5 1/8″
Taper of Tailstock Quill Center: M.T. # 4
Machine Oil: #30 Weight Machine Oil, 5 Gallons
Motor: 10 HP / 220v OR 440v / 3ph (Please Specify Desired Voltage at Time of Order)
Standard Features:
ISO 9001 Certified
Large Spindle Bore, 3 1/8″
Heavy Duty Spindle, D1-8
Heavy Duty Guideway Width, 12″
Heavy Duty Main Motor, 10 HP
Spindle Speeds from 25 – 1,800 RPM, 12 Steps
4-Way Rapid Traverse on the Carriage, Longitudinal, and Cross
60 Kinds of Inch Threads and 41 Kinds of Metric Threads
Threading and Feeding Rate Change without Changing Gears
The spindle is Balanced, Hardened, and Precision Ground
The spindle is Supported at 3-Point by High Precision Bearings
All Gears and Shafts are Hardened and Precision Ground
Guideways Induction Hardened and Precision Ground
Automatic Lubrication System in Headstock and Feed Box
One-Year Industrial Warranty for Parts
Equipment Included:
Free Taper Turning Attachment, Installed
Free SINO Digital Readout, Installed
Chuck Guard with Safety Shut Off, Made from Metal
Automatic Kick-Out Longitudinal Carriage Stop System
10″ 3-Jaw Chuck with Top Reversible Jaws, Direct Mount
12″ 4-Jaw Chuck, Direct Mount
14″ Face Plate
1/2″ – 6″ Steady Rest with Roller Jaws
7/8″ – 4 3/8″ Follow Rest
Removable Chuck Guard
Removable Gap
4-Way Tool Post
Foot Brake
Halogen Worklight
Coolant System
Full-Length Splash Guard
Dead Centers
Thread Chasing Dial
Tool Box and Leveling Pads
Mechanical Specifications:
Dimensions: 128″ x 43″ x 59″ H
Weight: approx. 6,350 lbs.
FOB Factory – Contact us for Availability
