Description
Fosdick 4′ Sensitive Radial Drilling Machine
Inventory # 9820-P
Model: 4′

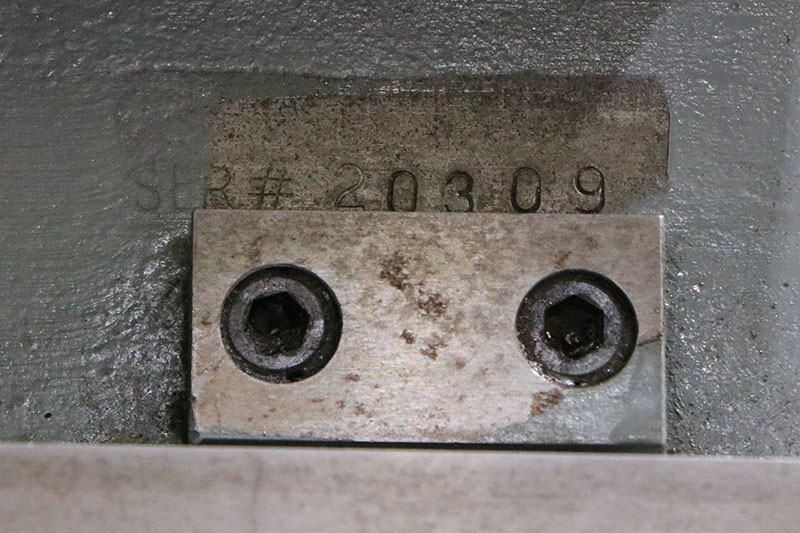

S/N: 20309
Specifications:
Spindle to Face of Column: 48″ Max. / 9″ Min.
Diameter of Column: 12″
Horizontal Travel of Head on Arm: 39″
Base to Spindle: 44″ Max. / 32″ Min.
Table to Spindle: 23 1/4″ Max.
Table Travel, Vertical: 16 1/2″
Table Working Surface: 24″ x 48″
Base Working Surface: 30″ x 53″
Spindle Travel in Head: 10″
Spindle Morse Taper: #4 MT
Spindle Speed: 38 – 1,500 RPM (18 Steps)
Spindle Feeds: .002, .004, .007, & .010 IPR
Equipment Included:
Automatic Tapping Reverse
T-Slotted Table and Base
Power Elevation of Table on Column
5 / 2.5 HP Two-Speed Spindle Motor
Mechanical Specifications:
Dimensions: 78″ x 30″ x 95″ H
Weight: approx. 6,100 lbs.
FOB Harrison, NJ Warehouse
