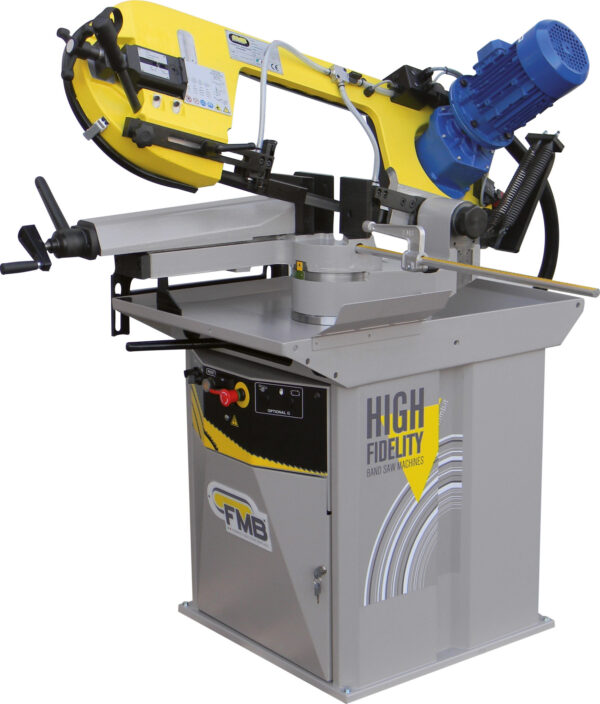

FMB Triton 9 1/2″ Pull Down Horizontal Mitering Band Saw
Inventory # 5575
Model: Triton
Description:
The FMB Triton Pull Down Band Saw allows fast sawing and operation on tubes, profiles and small solids
Specifications:
Cutting Capacity:
Round:
@ 0°: 9 1/2″
@ 45°: 7 1/4″
@ 60°: 4 1/2″
Rectangle A:
@ 0°: 8 1/4″ x 11″
@ 45°: 5 1/2″ x 7″
@ 60°: 4 1/3″ x 4 1/3″
Rectangle B:
@ 0°: 9 1/2″ x 10 1/4″
@ 45°: 8 3/4″ x 6 1/2″
Square:
@ 0°: 9 1/2″ x 9 3/8″
@ 45°: 6 3/4″ x 6 3/4″
@ 60°: 4 1/3″ x 4 1/3″
Blade Size: 106″ x 1″ x .035″
Blade Speeds: 115 and 230 FPM (110v/1ph is 1 Speed – 230 FPM)
Motor: 1.5 HP / 220v OR 440v / 3ph OR 110v / 1ph (Please Specify Desired Voltage at Time of Order)
Standard Features:
True direct drive motor/gear box. Helical gear box with gears in carburized, hardened alloy steel
Control panel on the front of machine for optimal ergonomics
Correct saw blade tension is clearly visible with a yellow notch
Saw blade guide blocks provide cutting precision and blade life
Solid cast iron vice with manual feed and lever for fast clamping
Coolant tank is accessible for easy cleaning and filling
Cutting angle is readable by a graduated scale
Mechanical lips for fast head rotation at 0°, 45°, and 60°
Easy-to-access lock/unlock lever for inclined cutting
Mechanical Specifications:
Floor Space: 32″ x 55″
Weight: approx. 700 lbs.
Contact us for special pricing and availability
FOB Factory
Optional Equipment:
Single Phase Motor
