Description

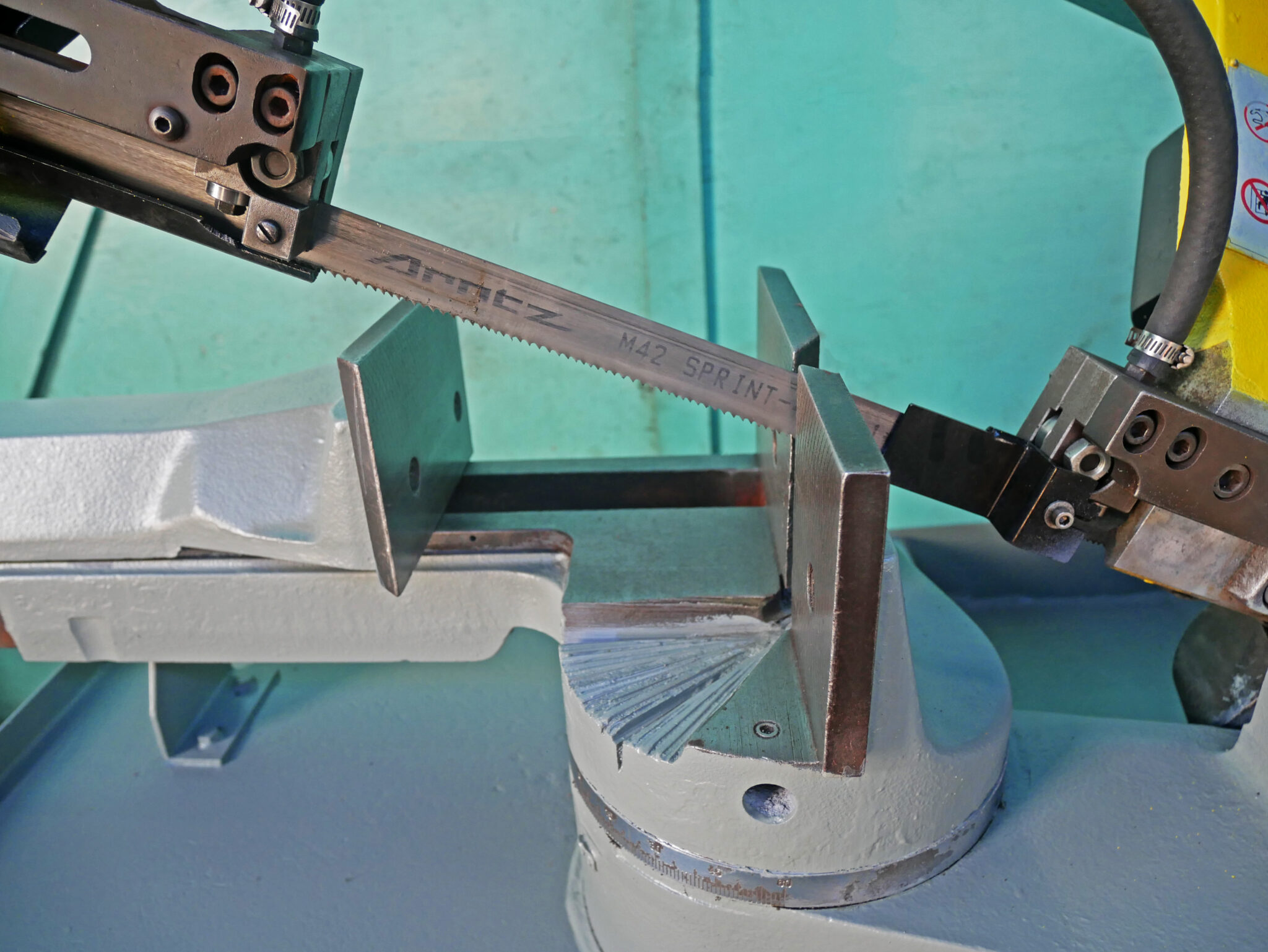

FMB Triton 9 1/2″ Pull Down Horizontal Mitering Band Saw
Inventory # 9275
Model: Triton
S/N: B02501 – Fully Serviced by our In-House Service Team
Specifications:
Cutting Capacity:
Round:
@ 0°: 9 1/2″
@ 45°: 7 1/4″
@ 60°: 4 1/2″
Rectangle A:
@ 0°: 8 1/4″ x 11″
@ 45°: 5 1/2″ x 7″
@ 60°: 4 1/3″ x 4 1/3″
Rectangle B:
@ 0°: 9 1/2″ x 10 1/4″
@ 45°: 8 3/4″ x 6 1/2″
Square:
@ 0°: 9 1/2″ x 9 3/8″
@ 45°: 6 3/4″ x 6 3/4″
@ 60°: 4 1/3″ x 4 1/3″
Blade Size: 106″ x 1″ x .035″
Blade Speed: 230 FPM
Motor: 1.5 HP / 240V / 3PH
Equipment Included:
Brand New True Direct Drive Motor/Gearbox
Helical Gearbox with Gears in Carburized, Hardened Alloy Steel
Control Panel on the Front of Machine for Optimal Ergonomics
Correct Saw Blade Tension is Cleary Visible with a Yellow Notch
Saw Blade Guide Blocks Provide Cutting Precision and Blade Life
Solid Cast Iron Vice with Manual Feed and Lever for Fast Clamping
Coolant Tank is Accessible for Easy Cleaning and Filling
The cutting angle is readable by a graduated scale
Mechanical Lips for Fast Head Rotation at 0°, 45°, and 60°
East-to-Access Lock/Unlock Lever for Inclined Cutting
Mechanical Specifications:
Dimensions: 32″ x 55″
Weight: approx. 700 lbs.
New Replacement Cost: $7,850.00
FOB Our Baltimore, MD Warehouse
