Description

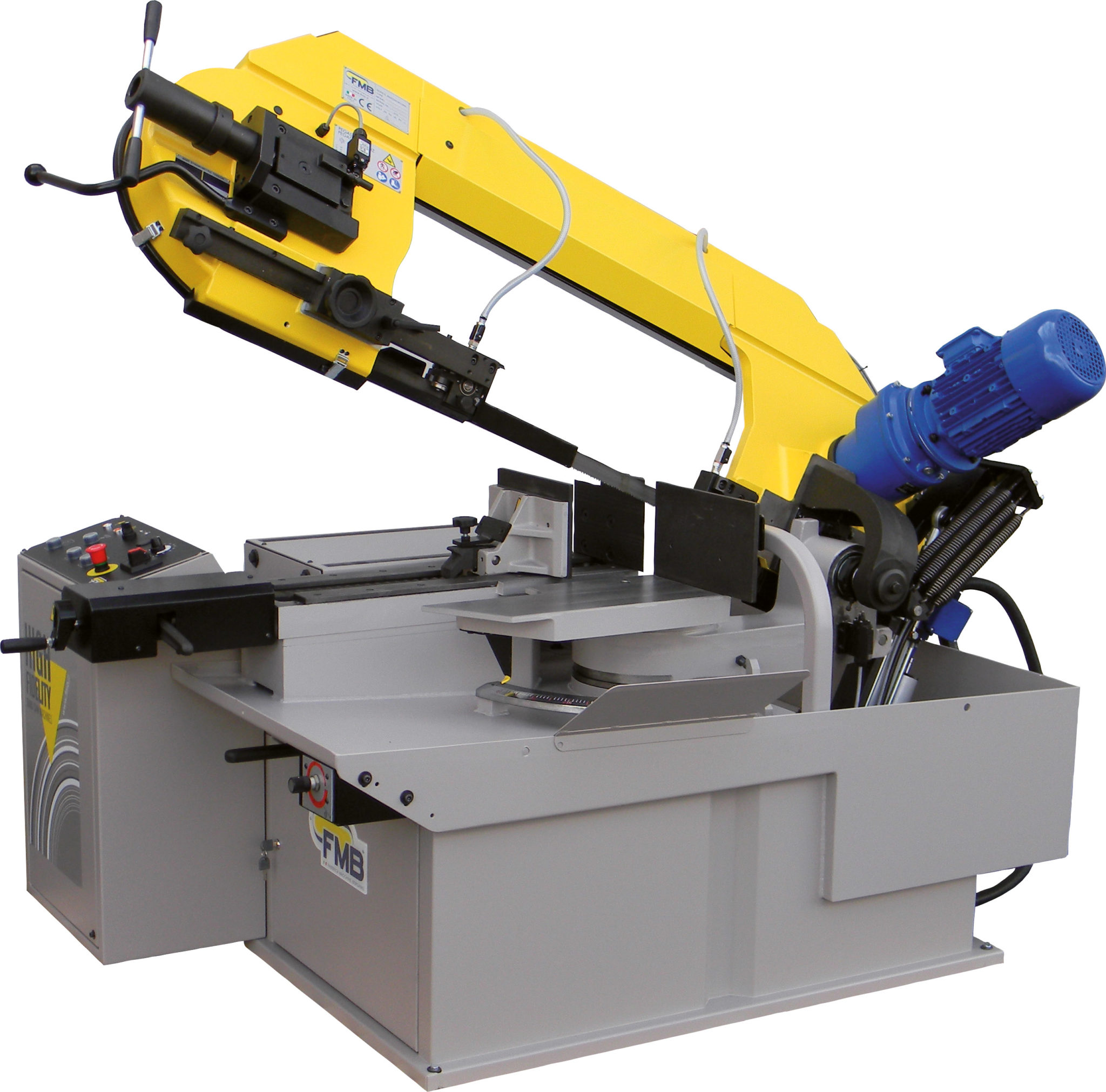

FMB Pegasus GV 13″ Variable Speed Manual Horizontal Mitering Band Saw
Inventory # 5203
Model: Pegasus GV
Description:
Featuring the FMB Direct Drive System to produce torque from 95% of the HP. This machine has the cutting torque and 1 1/4″ wide blade to cut your larger parts efficiently and accurately
Specifications:
Cutting Capacity:
Round:
@ 0°: 13″
@ 45°: 13″
@ 60°: 9 1/2″
Rectangle A:
@ 0°: 13″ x 20″
@ 45°: 10″ x 14 1/2″
@ 60°: 6 1/4″ x 9″
Rectangle B:
@ 0°: 13″ x 13″
@ 45°: 13″ x 13″
@ 60°: 6 1/4″ x 6 1/4″
Blade Size: 162″ x 1 1/4″ x .042″
Blade Speed: 52 – 394 FPM
Work Height: 30″ Max.
Motor: 4 HP / 220v OR 440v / 3ph OR 1ph (Please Specify Desired Voltage at Time of Order)
Standard Features:
True direct drive motor/gear box. Helical gear box with gears in carburized, hardened alloy steel
Control panel on the front of machine for optimal ergonomics
Correct saw blade tension is clearly visible with a yellow notch
Saw blade guide blacks provide cutting precision and blade life
Electronic variator VHZ for a wide choice in blade speed
Solid cast iron vice with manual feed and lever for fast clamping
Coolant tank is accessible for easy cleaning and filling
Cutting angle is readable by a graduated scale
Mechanical lips for fast head rotation at 0°, 45°, and 60°
Easy-to-access lock/unlock lever for inclined cutting
Mechanical Specifications:
Floor Space: 55″ x 83″
Weight: approx. 1,870 lbs.
Contact us for special pricing and availability
FOB Factory
Optional Equipment:
Single Speed Option (220v / 1ph): + $150.00
