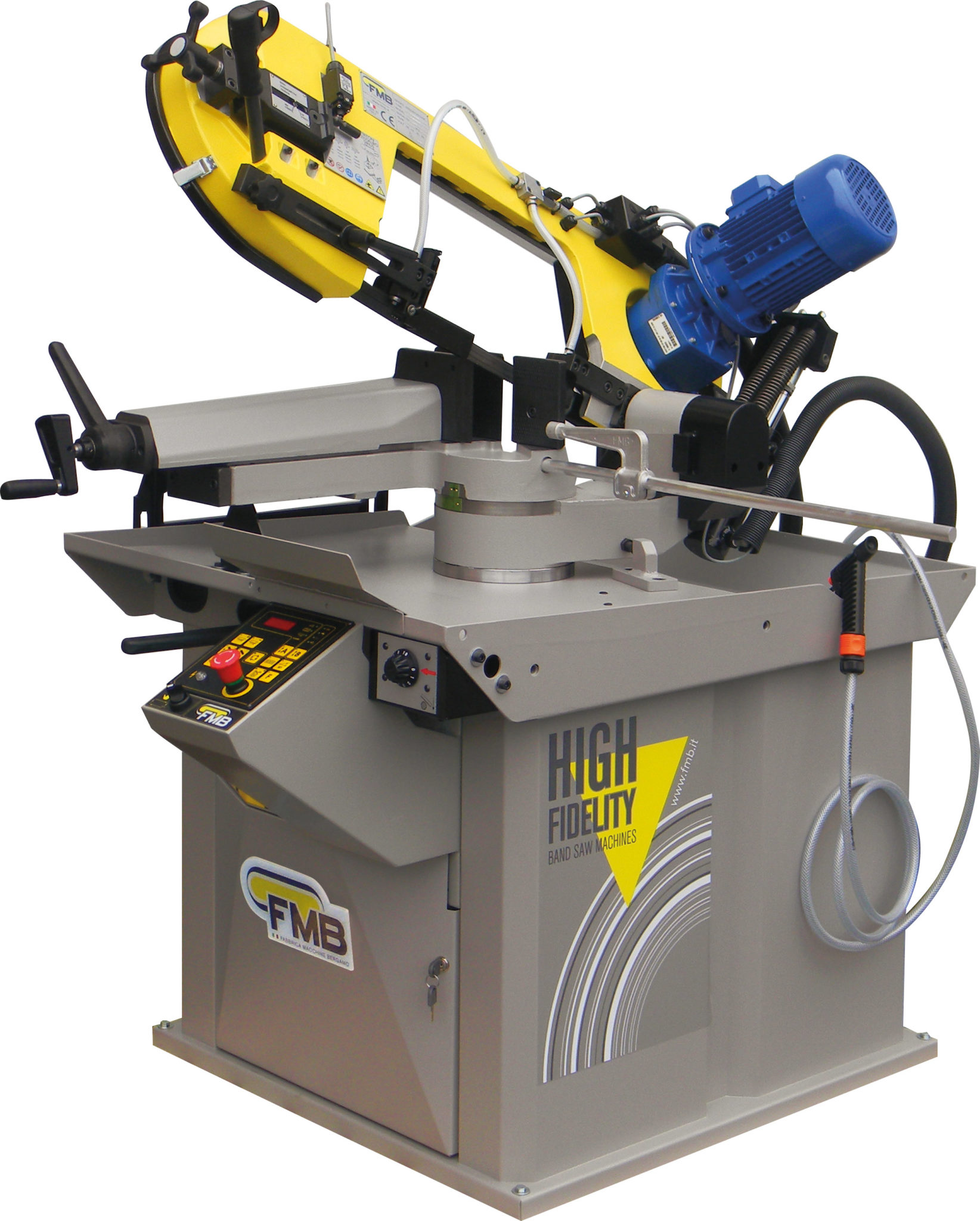

FMB Centauro 9 1/2″ Horizontal Mitering Band Saw with Positive Hydraulic Cutting Pressure
Inventory # 7741
Model: Centauro
Description:
If your shop cuts a wide range of materials, including stainless and tool steels, Centauro is the saw for the job. Centauro is the saw for the job. Centauro offers precise control feed of the saw tooth into the material, as well as speed of the tooth through material via positive hydraulic cutting pressure and infinitely variable blade speed
Specifications:
Cutting Capacity:
Round:
@ 0°: 9 1/2″
@ 45°: 7 1/4″
@ 60°: 4 1/2″
Rectangle A:
@ 0°: 8 1/4″ x 11″
@ 45°: 5 1/2″ x 7″
@ 60°: 4 1/3″ x 4 1/3″
Rectangle B:
@ 0°: 9 1/2″ x 10 1/4″
@ 45°: 8 3/4″ x 6 1/2″
Square:
@ 0°: 9 1/2″ x 9 3/8″
@ 45°: 6 3/4″ x 6 3/4″
@ 60°: 4 1/3″ x 4 1/3″
Blade Size: 106″ x 1″ x .035″
Blade Speeds: 52 – 393 FPM
Motor: 2 HP / 220v OR 440v / 3ph (Please Specify Desired Voltage at Time of Order)
Standard Features:
True direct drive motor/gear box. Helical gear box with gears in carburized, hardened alloy steel
Control panel on the front of the machine for optimal ergonomics
Correct saw blade tension is clearly visible with a yellow notch
Saw blade guide blocks provide cutting precision and blade life
Electronic variator VHZ for a wide choice in blade speed
Solid cast iron vice with manual feed and lever for fast clamping
Coolant tank is accessible for easy cleaning and filling
Cutting angle is readable by a graduated scale
Mechanical lips for fast head rotation at 0°, 45° and 60°
Easy-to-access lock/unlock lever for inclined cutting
Mechanical Specifications:
Floor Space: 32″ x 55″
Weight: approx. 775 lbs.
Contact us for special pricing and availability
FOB Factory
