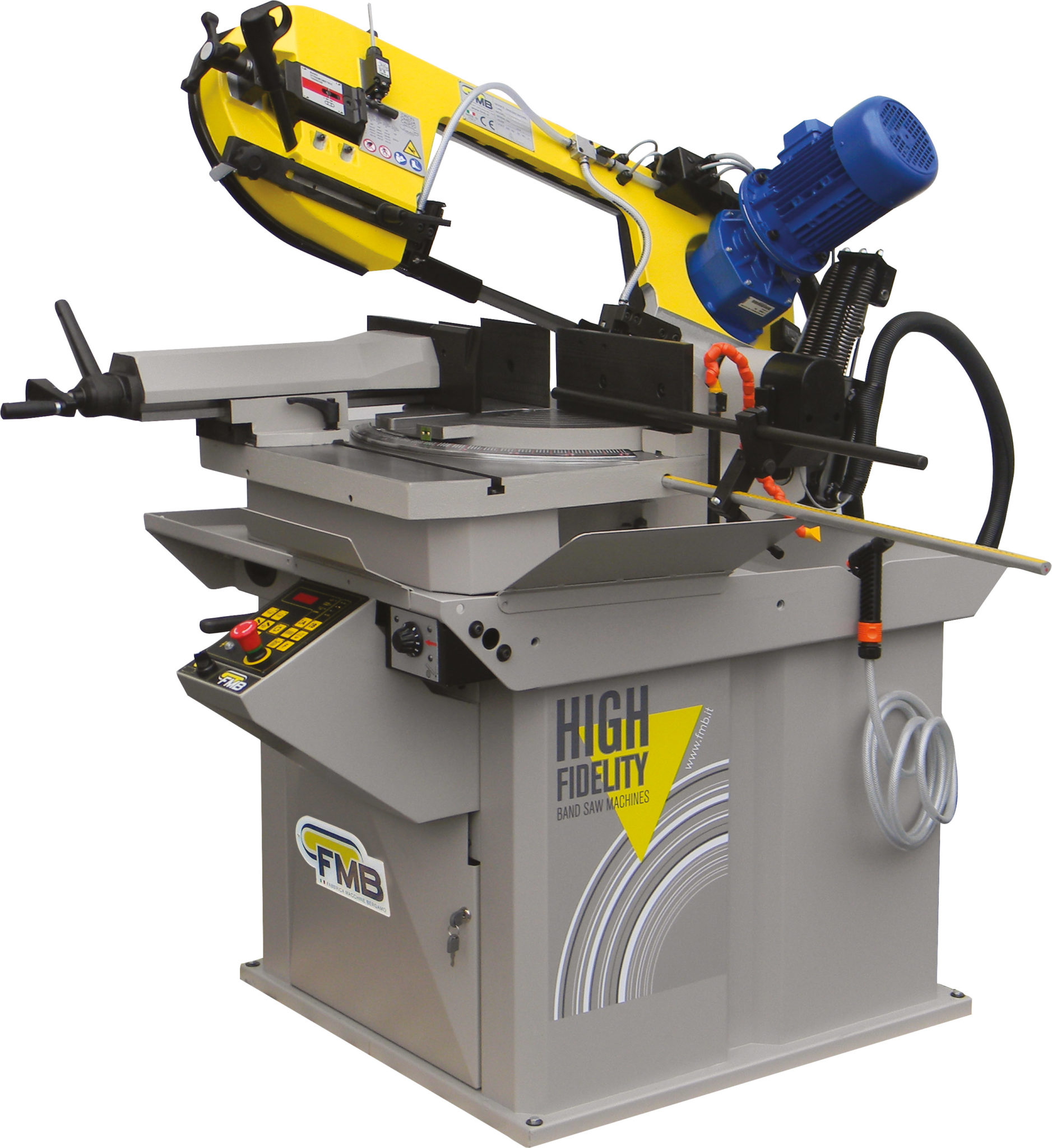

FMB Calipso 9 1/2″ Horizontal Double Miter Band Saw with Positive Hydraulic Cutting Pressure
Inventory # 7745
Model: Calipso
Description:
If your shop cuts a wide range of materials, including stainless and tool steels, Calipso is the saw for the job. Calipso offers precise control of the feed of the saw tooth into the material, as well as speed of the tooth through material via positive hydraulic cutting pressure and infinitely variable blade speed
Specifications:
Cutting Capacity:
Round:
@ 0°: 9 1/2″
@ 45° Right: 6 7/8″
@ 60° Right: 4 1/3″
@ 45° Left: 6″
Rectangle A:
@ 0°: 8″ x 12 1/4″
@ 45° Right: 6 5/8″ x 6 5/8″
@ 60° Right: 5 1/2″ x 4″
@ 45° Left: 5″ x 5 5/8″
Rectangle B:
@ 0°: 9 1/2″ x 10 5/8″
@ 45° Right: 9 3/8″ x 6″
@ 45° Left: 9 3/8″ x 2 1/2″
Square:
@ 0°: 9 1/2″ x 9 3/8″
@ 45° Right: 6 5/8″ x 6 5/8″
@ 60° Right: 4″ x 4″
@ 45° Left: 5 1/3″ x 5 1/3″
Blade Size: 106″ x 1″ x .035″
Blade Speeds: 52 – 394 FPM
Motor: 2 HP / 220v OR 440v / 3ph (Please Specify Desired Voltage at Time of Order)
Standard Features:
True direct drive motor/gear box. Helical gear box with gears in carburized, hardened alloy steel
Control panel on the front of machine for optimal ergonomics. Models with hydraulic cutting controls
Correct saw blade tension is clearly visible with a yellow notch
Saw blade guide blocks provide cutting precision and blade life
Solid cast iron vice with manual feed and lever for fast clamping
Coolant tank is accessible for easy cleaning and filling
Cutting angle is readable by a graduated scale
Mechanical lips for fast head rotation at 0°, 45°, 60°
Easy-to-access lock/unlock lever for inclined cutting
Mechanical Specifications:
Floor Space: 35″ x 59″
Weight: approx. 1,080 lbs.
Contact us for special pricing and availability
FOB Factory
