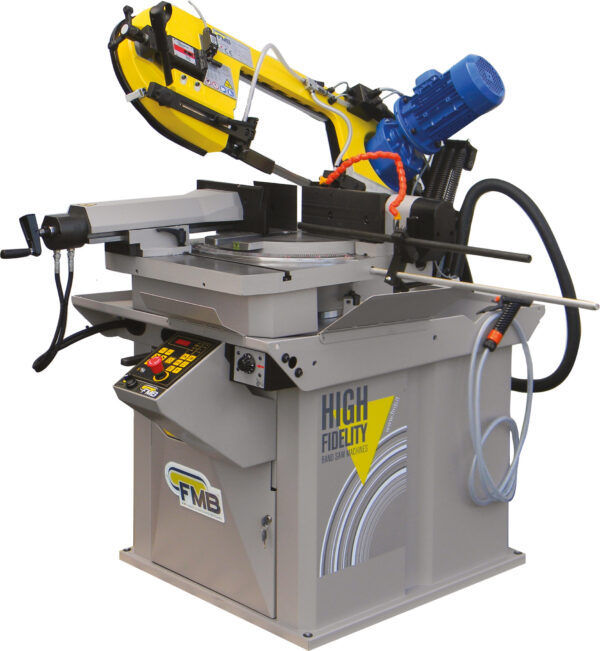

FMB Omega 9 1/2″ Hydraulic Semi-Automatic Double Miter Band Saw
Inventory # 7746
Model: Omega
Description:
The Omega offers semi-automatic operation of the cutting cycle, complete with hydraulic clamping, positive hydraulic cutting pressure and auto return after the cutting cycle
Specifications:
Cutting Capacity:
Round:
@ 0°: 9 1/2″
@ 45° Right: 6 7/8″
@ 60° Right: 4 1/3″
@ 45° Left: 6″
Rectangle A:
@ 0°: 8″ x 12 1/4″
@ 45° Right: 6 5/8″ x 6 5/8″
@ 60° Right: 5 1/2″ x 4″
@ 45° Left: 5″ x 5 5/8″
Bundle: 4 3/4″ x 11″
Rectangle B:
@ 0°: 9 1/2″ x 10 5/8″
@ 45° Right: 9 3/8″ x 6″
@ 45° Left: 9 3/8″ x 2 1/2″
Square:
@ 0°: 9 1/2″ x 9 3/8″
@ 45° Right: 6 5/8″ x 6 5/8″
@ 60° Right: 4″ x 4″
@ 45° Left: 5 1/3″ x 5 1/3″
Blade Size: 106″ x 1″ x .035″
Blade Speeds: 52 – 394 FPM
Motor: 2 HP / 220v OR 440v / 3ph (Please Specify Desired Voltage at Time of Order)
Standard Features:
Hydraulic clamping
Positive hydraulic cutting pressure
Auto return after the cutting cycle
Gear box teeth laterally rectified to increase efficiency
The blade cleaning motorized brush is easy to regulate
Material clamping vice for rapid material lock/unlock
Electronic panel for machine control. Includes inverter controlled blade speed and part counter
Mechanical Specifications:
Floor Space: 35″ x 59″
Weight: approx. 1,080 lbs.
Contact us for special pricing and availability
FOB Factory
Optional Equipment:
Single Phase Motor: + $375.00
