Description

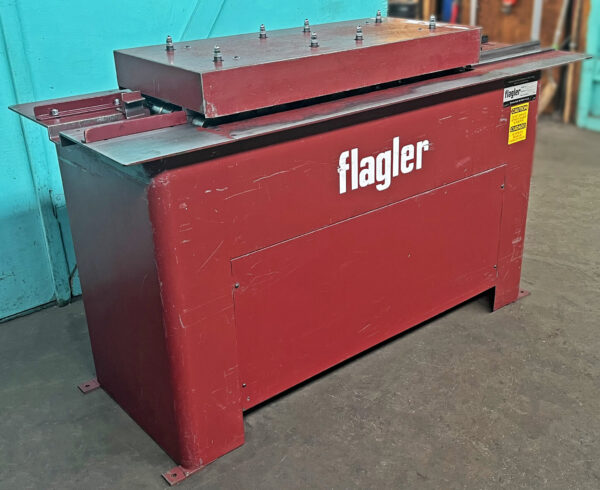

Flagler 100 FPM High-Speed Quadformer, 23-000
Inventory # 9452
Model: 23-000
S/N: QF661-705 – Completely Rebuilt in House at Norman Machine Tool
Made in USA
Description:
Standard with reinforced “S” cleat and 1 1/8″ drive cleat tooling in the center position. There are two sets of extended shafts for auxiliary rolls
Specifications:
Speed: 100 FPM
Reinforced “S” Cleat: 22 Gauge
1 1/8″ Drive Cleat: 20 Gauge

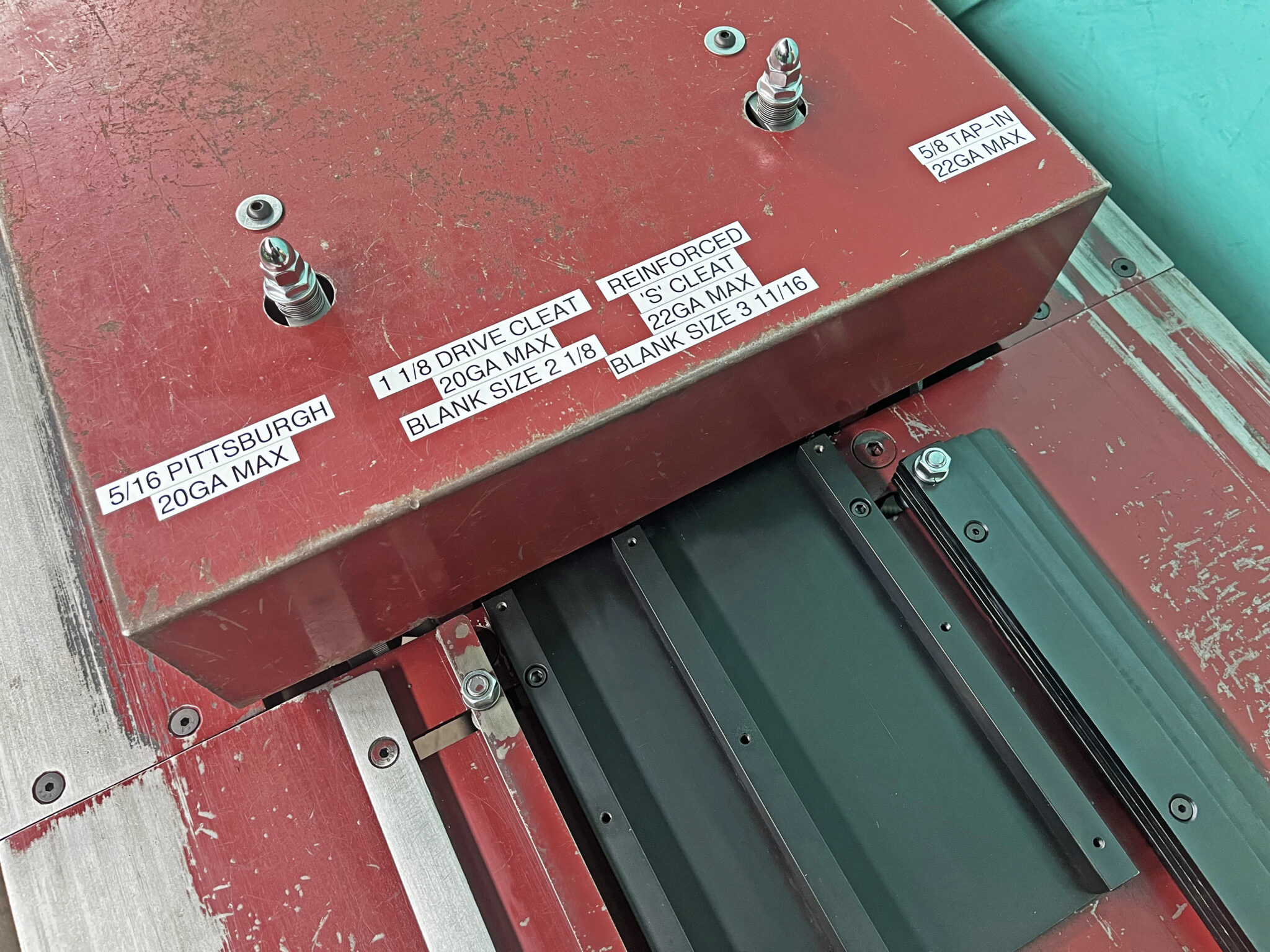

Auxiliary Rolls:
Right Side: 5/8″ Tap-In – Max. 22 Gauge
Left Side: 5/16″ P (Pittsburgh) – Max. 20 Gauge
Motor: 5 HP / 3ph
Standard Features:
Double Vee Belt Drive
Arc Welded Steel Base
Mechanical Specifications:
Dimensions: 68″ x 27″ x 48″ H
Shipping Weight: approx. 1,200 lbs.
New Replacement Cost: $23,260.00 with included auxiliary tooling
FOB Our Baltimore, MD Warehouse
