Description

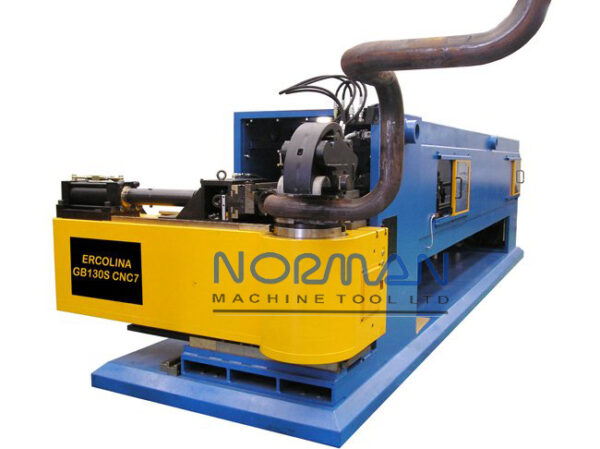

Ercolina Giga Bender 130 Fully Automated CNC Mandrel Bender, GB130
Inventory # 7459
Model: GB 130CNC
Specifications:
Max. Tube Capacity:
Mild Steel: 5″ (.196 wall)
Stainless: 5″ (.150 wall)
Square Tube: 4″ (.160 wall)
Max. Tube Capacity: 1 1/2″
Max. Pipe Capacity: 4″ Sch. 40
Max. Bending Radius: 18″
Min. Bending Radius: 3.125″
Max. Tube Inside Carriage: 5″
Max. Length Through Carriage: 236″
Max. Length in Carriage: 177″
Interactive Touch Screen Control 10″ color screen
Number of Programs: Unlimited w/ USB
Bend Direction: CCW
“Y” Axis Speed (ft/min): 164
“B” Rotation Speed (RPM): 30
“C” Bend Speed (RPM): 2
Repeatability: “Y” Axis +/- .2mm, “C” Axis +/- .5mm
Voltage: 47 hp / 480 v / 3 ph
Standard Features:
Interactive PLC touch screen offers easy access to auto and manual operating modes, system diagnostics and multiple language capability
Programmable bend angles with independent material springback setting for each bend
Programmable auto mandrel positioning allows operator to optimize extraction for improved bend quality
Programmable clamping, pressure die and boost movements with manual override
Precision encoders on each axis
Programmable tail stock interference zone monitors position and eliminates workhead collision
High capacity hydraulic reservoir with automatic cooling system
Hand-held remote bending control, certified class 3 safety and all electrical components UL, CSA and CE approved
Standard programmable internal mandrel lubrication
Super Bend-Tech SE for Ercolina software included
Accepts YBC and XYZ input values
Y – Feeding hydraulic
B – Feeding hydraulic
C – Bending hydraulic CNC
Mechanical Specifications:
Dimensions: 319″ x 75″ x 71″ H
Weight: 18,000 lbs.
Contact us for special pricing and availability
FOB Factory
