Ercolina 3″ Semi-Automatic Mandrel Bender, TM76

Shipping: Add to Cart to Calculate

SKU: TM76

Inventory #: 7456

Category:

Condition:

Type:

Brand:

Description

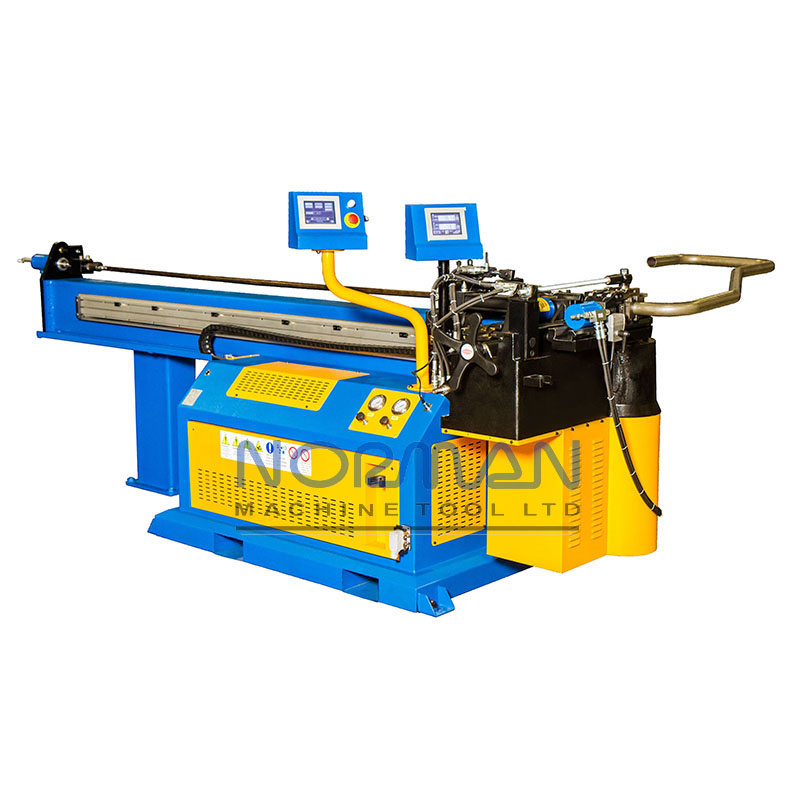

Ercolina 3″ Semi-Automatic Mandrel Bender, TM76

Inventory #7456

Model: TM76

Specifications:

Max. Tube Capacity:

Mild Steel 3″ (.083 wall)

Stainless 3″ (.065 wall)

Square Tube 2 1/2″ (.065 wall)

Max. Pipe Capacity: 2″ Sch. 40

Max. Bending Radius: 10″

Min. Bending Radius: 1.5 x Ø

Max. Shaft Rotation: 210°

Max. Bending Angle: 180°

Max. Tailstock Capacity: 3″

Max. Tailstock Through Capacity: 2 3/8″

Max. Material Length: 10′ table 113″

Optional Length**: 20′ table 231″

Program Storage: Unlimited with USB

Precision of Bend Angle: +/- .1°

Voltage: 220v, 480v / 3ph

Standard Features:

Control offers easy access to manual and auto operating modes, system diagnostics and multiple languages

USB for unlimited storage of bend programs, material library and job information

Touch screen displays absolute (ABS) or incremental (INC) positioning with inch or metric readout

Programmable C axis with manual Y and B positioning

Variable bending speed to 4 RPM with overload protection

Programmable bend angle 0 to 180°

Individual material springback setting for every bend angle

Anticipated mandrel retraction, clamping, pressure die and boost die movements

Pressure die with auto recapture minimizes distance between bends

Heavy duty tailstock carriage with hydraulic clamping of work piece

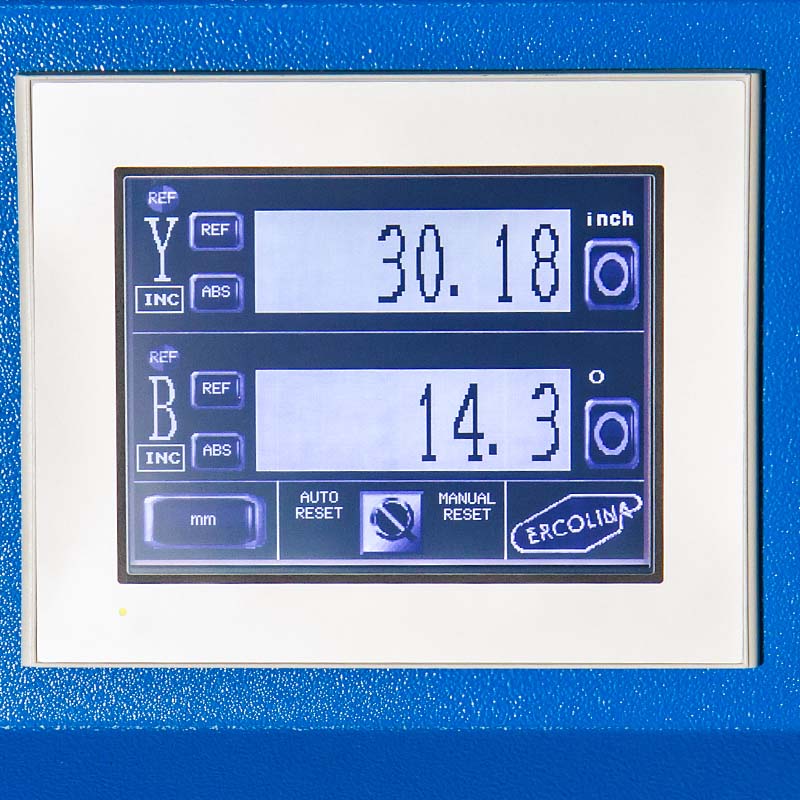

Tailstock Y and B position display resets to zero after each bend for easy setup while maintaining absolute position

Mechanical Specifications:

Dimensions: 168″ x 36″ x 61″ H

Weight: approx. 3,300 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 3600 lbs
