Description

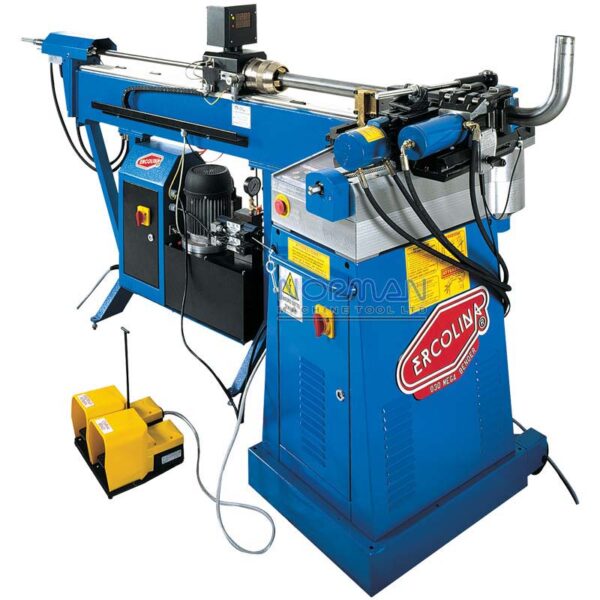

Ercolina Semi-Automatic Mandrel Bender, 030
Inventory # 7461
Model: 030 Mega Bender
Specifications:
Max. Tube Capacity:
Mild Steel: 2 1/2″ (.083 wall)
Stainless: 2 1/2″ (.065 wall)
Square Tube: 2″ (.065 wall)
Max. Pipe Capacity: 1 1/2″ Sch. 40
Max. Bending Radius: 7 7/8″
Min. Bending Radius: 1.5 x Ø
Max. Shaft Rotation: 210°
Max. Bending Angle: 180°
Max. Tailstock Capacity: 2 3/8″
Max. Material Length: 5′ table: 59″
Table Length: 10′
Optional Table Length: 20′ (Contact us for Pricing and Availability)
Number of Programs: (30) Standard
Precision of Bend Angle: +/- 1°
Voltage: 220v, 480v / 3ph
Standard Features:
Patented hydraulic finger (FST) clamp system minimizes distance between bends
Variable bending speed
Ideal for bending handrail, thin wall mild steel, stainless steel, bend grade aluminum and other materials
Programmable bend sequencing and mandrel retraction
Independent clamp and pressure die adjustment
Reinforced tool mounting shaft with heavy duty swing arm for maximum rigidity
Micrometer wiper die adjustment
Secondary hydraulic pressure die stabilization system
Quick-change tooling reduces setup time
Tables available in 5′,10′ or 20′ lengths; standard with pneumatic material clamping and DRO system for linear and rotational positioning
Bending software available for part layout guideline
Base machine converts to accept Ercolina non-mandrel tooling
Reference display of Y & B axis to assist set-up
Y – Feeding manual with adjustable stops
B – Feeding manual with adjustable stops
C – NC programmable bend angle
Mechanical Specifications:
Dimensions: 260″ – 83″ x 32″ x 44″ H
Weight: approx. 1,600 lbs.
Contact us for special pricing and availability
FOB Factory
