Description

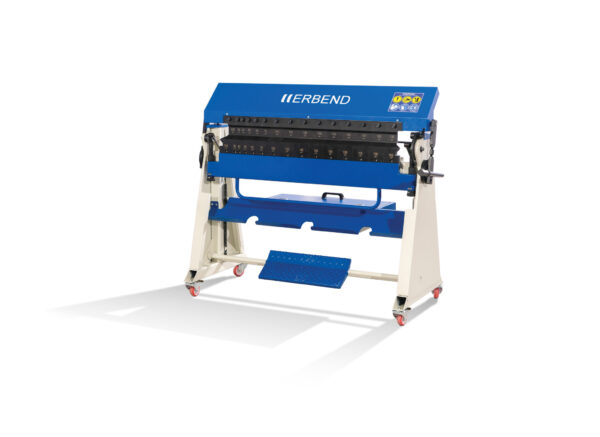

Erbend 4′ x 18 Gauge Manual Folder, UFA 1212
Inventory # 9695
Model: UFA 1212
Made in Turkey
Specifications:
Bending Length: 49.21″ (1,250mm)
Bending Capacity: 18 Gauge (1.25mm)
Opening Height: 8″ (200mm)
Segmented Tools for Clamping Beam: 4″ x 2.2″ (100mm x 55mm)
Segmented Folding Beam Tools: 2.4″ (60mm)
Segmented Lower Beam Tools: 3.6″ (92mm)
Manual Backgauge: 19.6″ (500mm)
Standard Features:
Vertical clamping with 8″ (200mm) stroke
Easy tool clamping system with specific Erbend design
All segmented tools are 42CrMo4 material, 60 HRC laser induction surface hardened and ground
Bending angle stabilization system
Clamping beam stabilizer arm
Clamping beam stabilizer foot pedal
Easier clamping re-swivel thanks to special return springs
19.6″ (500mm) manual back gauge system
Tool & accessory cabinet holder
FOB Factory – Contact us for Pricing and Availability
