Description
Erbend 10′ x 16 Gauge CNC Folder, MFC 3215
Inventory # 9698
Model: MFC 3215
Made in Turkey
Specifications:
Max. Sheet Length: 126″ (3,200mm)
Capacity:
Mild Steel: 16 Gauge (1.5mm)
Stainless Steel: 20 Gauge (1mm)
Aluminum: 14 Gauge (2mm)
Clamping Beam (Z-Axis):
Drive Power: 1.1 HP
Opening Height (No Tools): 4.72″ (120mm)
Clamping Speed: 2 3/4″ /Sec.
Folding Beam (Y-Axis):
Drive Power: 2.2 HP
Folding Speed: 75° /Sec.
Folding Beam (A-Axis):
Drive Power: 1.1 HP
Adjustment Height: 1.38″ (35mm)
Backgauge System (X-Axis):
Drive Power: 0.4 HP
Gauging: 0.024″ Min. to 29.53″ Max.
Electrics: 480v / 3ph
Rated Power: 3.93 kW (5.27 HP)
Standard Features:
AC motorized drive X, Y, Z, C-Axis (clamping, folding, back gauge, and clamp rotation)
15.6″ touchscreen ERFOLD BASIC CNC line by line and 2D software control

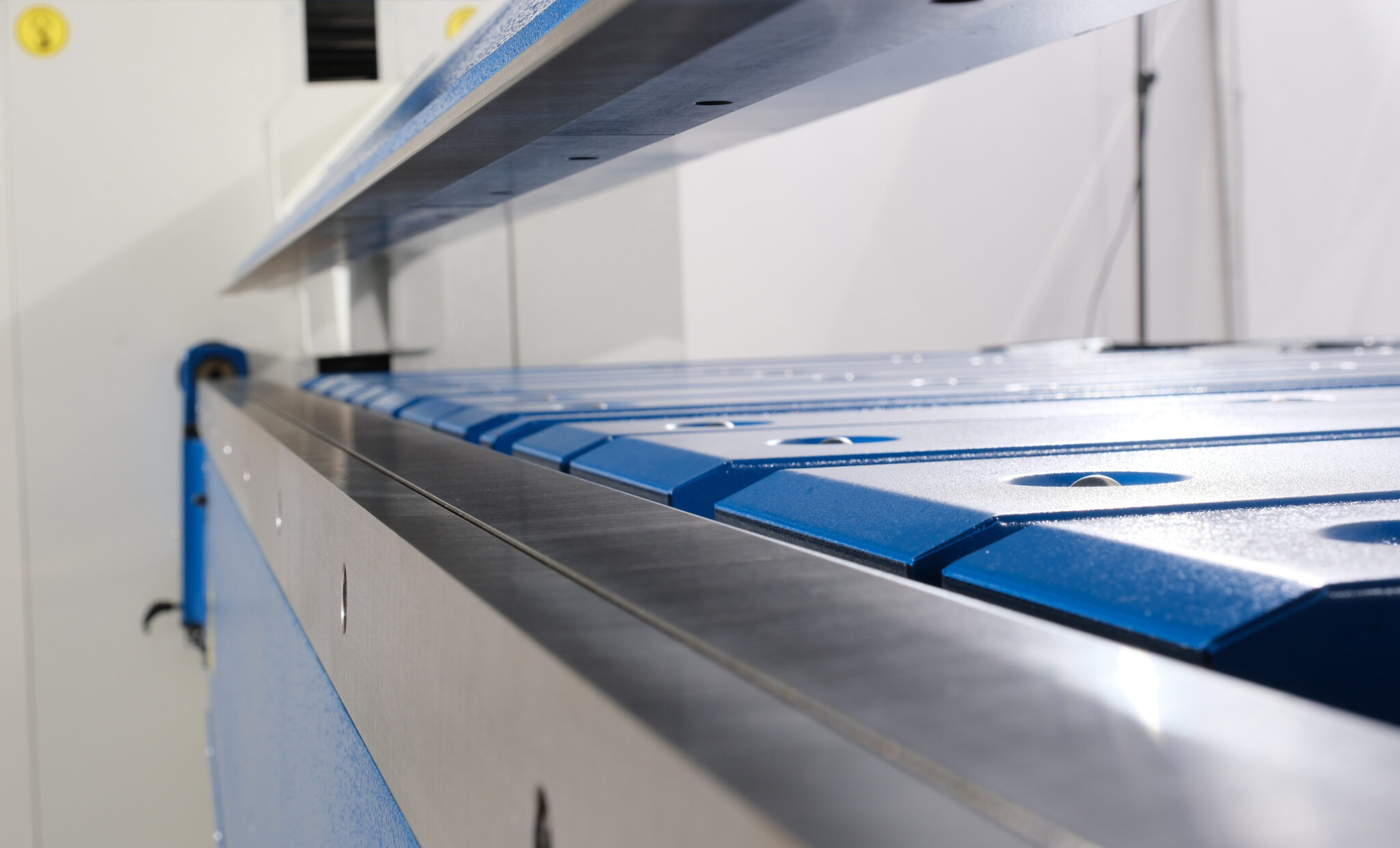

Flat rail bottom beam tool for feather grooves
Clamping beam open height of 6.29″ (160mm) without tooling
3 1/2″ (90mm) goats foot tools on station one
R1 or 20° sharp nose clamping beam tools on station two
Folding beam tools, two sets: .59″ (15mm) & .98″ (25mm)
Manual folding beam adjustment 1.37″ (35mm) (A-Axis)
Front horizontal light barriers
LED function lights (red, green, & blue)
Three switch foot pedal
Equipment Included:
ERFOLD Advanced 2D Graphical Control
Manual Mechanical Crowning System
36.37″ (1,000mm) Motorized Back Gauge and Sheet Support Table with Ball Casters
Mechanical Specifications:
Dimensions: 175″ x 88″ x 73″ H
Weight: approx. 6,950 lbs.
FOB Factory – Contact us for Pricing and Availability
