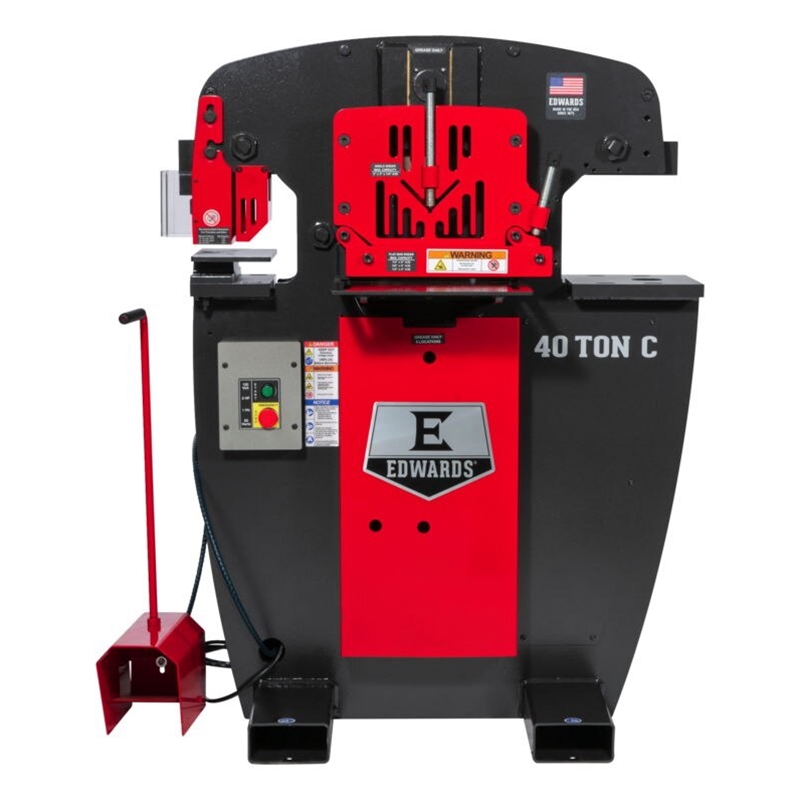

Edwards 40 Ton ‘C’ Ironworker
Inventory # 8947
Model: 40 Ton C
Description:
The Edwards 40 Ton C Ironworker is ideally suited for home, farm fabrication, and medium-sized job shops. Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear, and a universial open tooling station designed to accept optional tooling accessories. There are 11 interchangeable attachments and 16 accessories available, allowing customization of an ironworker to your needs
Specifications:
Rating: 40 Tons
Max. Capacity: 1″ Diameter in 1/2″ Mild Steel
Work Height: 34 1/2″
Throat Depth: 7″
Stroke: 1 5/8″
Flat Bar Shear:
Max. Capacity:
1/4″ x 8″
3/8″ x 6″
1/2″ x 4″
Work Height: 34 3/4″
Angle Shear:
Max. Capacity: 3″ x 3″ x 1/4″
Work Height: 40″
Open Station:
Throat Depth: 10 1/2″
Work Height: 34 1/2″
Motor: 2 HP / 110v / 1ph
Mechanical Specifications:
Dimensions: 36 1/8″ x 40″ x 53″ H
Weight: approx. 1,720 lbs.
FOB Factory
