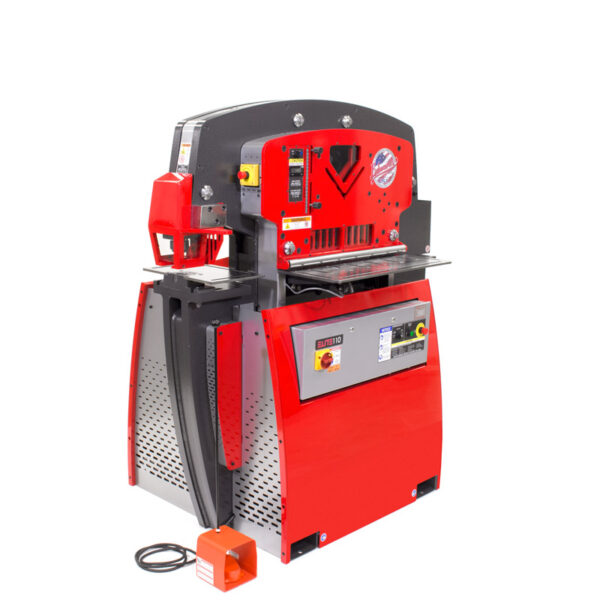

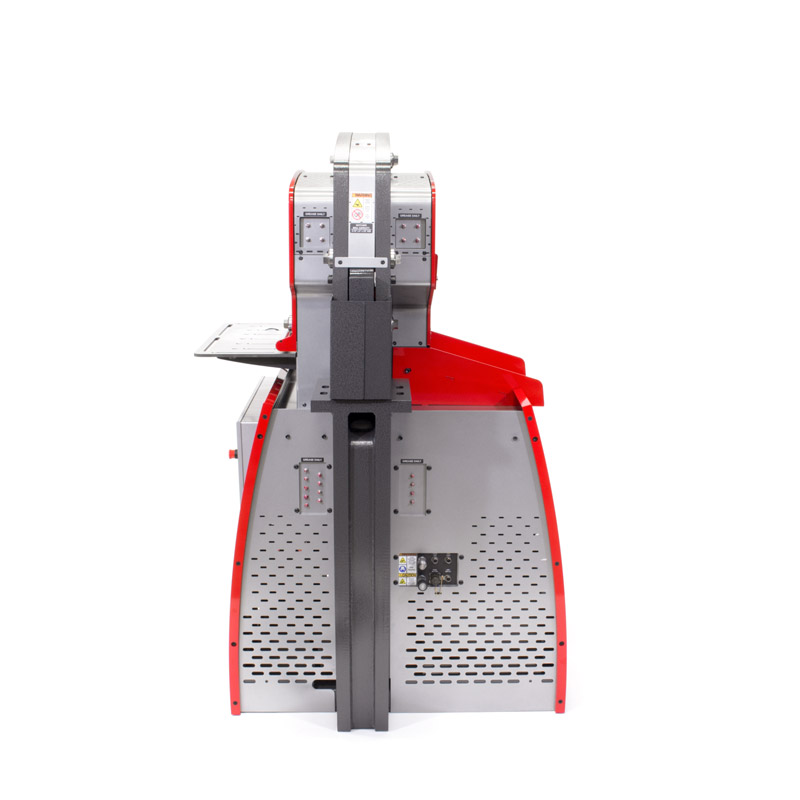

Edwards 110 Ton Elite Hydraulic Ironworker – Free Punch & Die Starter Set with Every New Edwards Ironworker
Inventory # 7633
Model: 110 Ton Elite
Made in USA – Call for Special Pricing!
Description:
The Edwards Elite 110 Ton Ironworker sets the standard of design excellence and superior performance with integrated value-added features in this robust new series of Ironworkers
Specifications:
Punching:
Max. Capacity: 1 3/8″ Diameter, 1″ A36
Throat Depth: 11 3/4″
Open Height: 8 5/8″
Shut Height: 6 13/16″
Stroke: 1 13/16″
Work Height: 41″
Flat Bar Shear:
Max. Capacity: 3/4″ x 14″, 1″ x 12″
Max. Round: 1 1/4″
Max. Square: 1 1/4″
Work Height: 41 1/2″
Angle Shear:
Max. Capacity: 6″ x 6″ x 1/2″
Work Height: 50 7/8″
Open Station:
Throat Depth: 15 1/2″
Open Height: 8 5/8″
Shut Height: 6 13/16″
Stroke: 1 13/16″
Work Height: 39 3/16″
Hydraulic Pump: 10 1/2 GPM – 2 Stage
Valve Pressure: 3,000 PSI
Reservoir: 17 Gallons
Cylinder: 3 1/2″ Ram
Motor: 7.5 HP / 208v or 230v / 3ph / 1,765 RPM
Standard Features:
Universal open tooling station
Hydraulic hold-down
E-Stop / Lockout-Tagout
Electric stroke control
Hydraulic accessory pack
Central lubrication system
Swing-away stripper assembly
Roller encoder measuring system
Quick change punch assembly
Premium gauging tables
LED lighting
Mechanical Specifications:
Dimensions: 57 1/4″ x 42 3/8″ x 66 1/16″ H
Weight: approx. 5,380 lbs.
Ask us about the optional PowerLink System which allows your Ironworker to act as a power source for Edward’s expanding line of innovative Powerlink Hydraulic Machine Tools, such as the 10 Ton Bender, 20 Ton Horizontal Press and 40 Ton Shop Press
Note: Stock Photo May Show Options Not Included with Your Purchase – Please Contact Us with Any Questions
Contact us for special pricing and availability
FOB Factory
