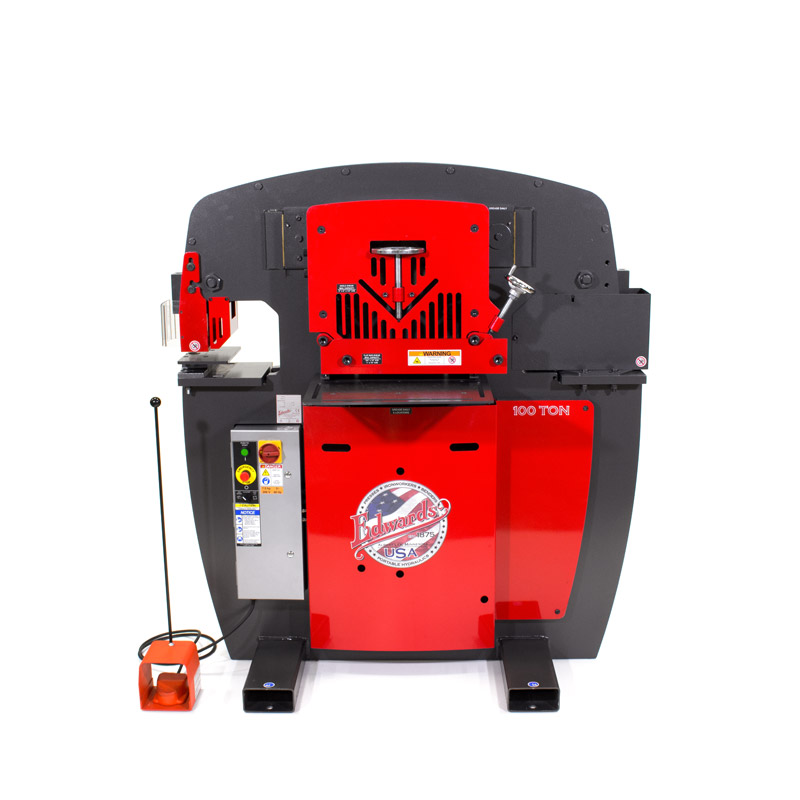

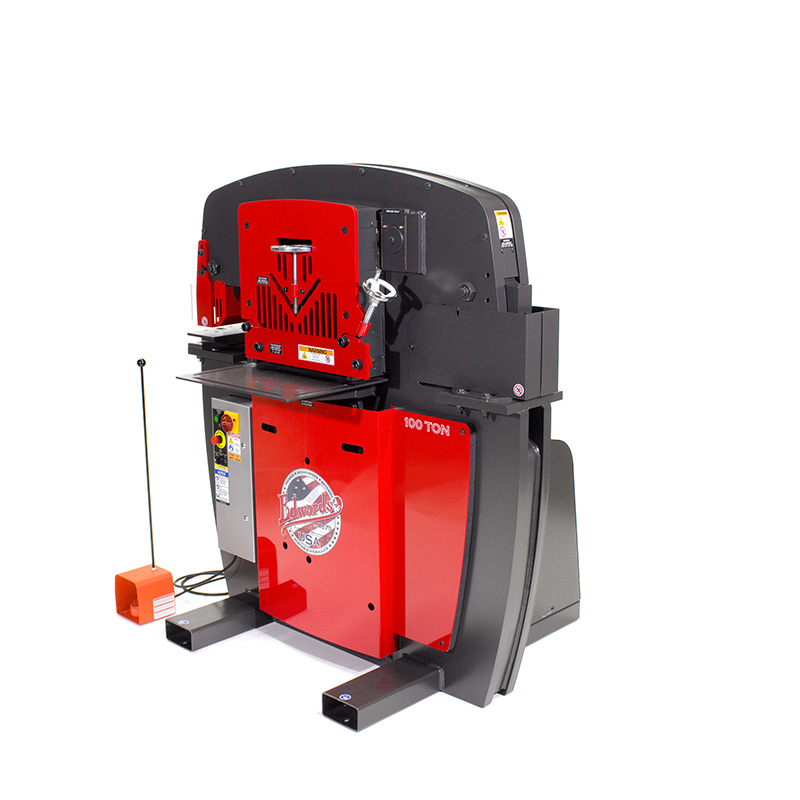

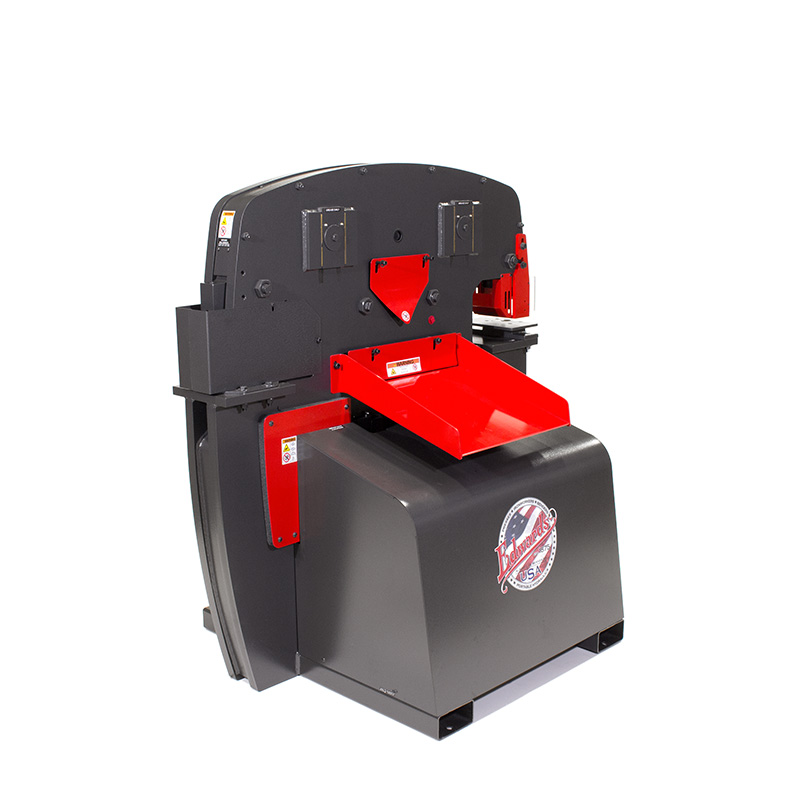

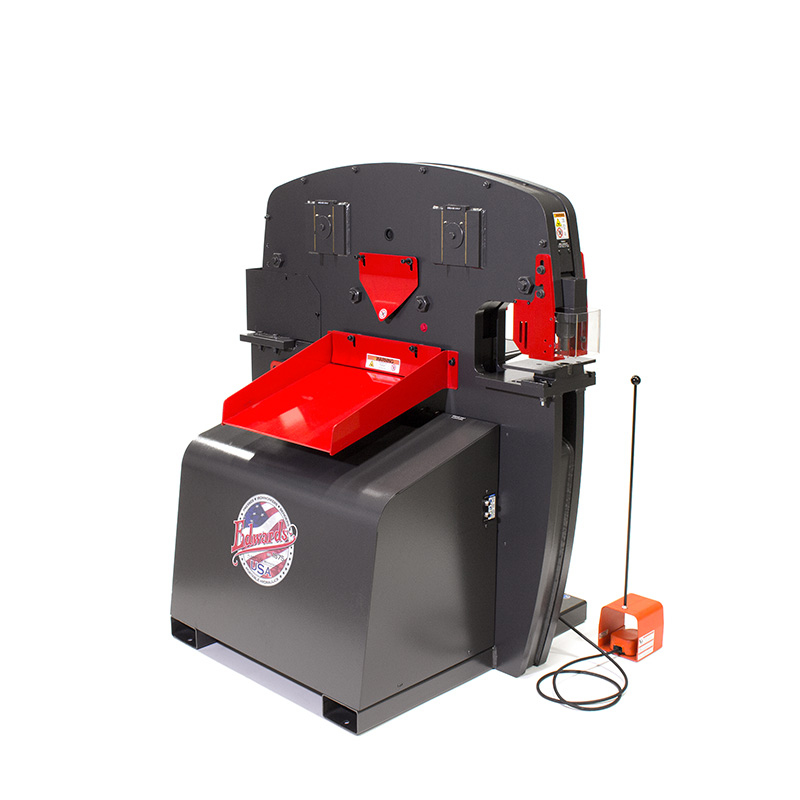

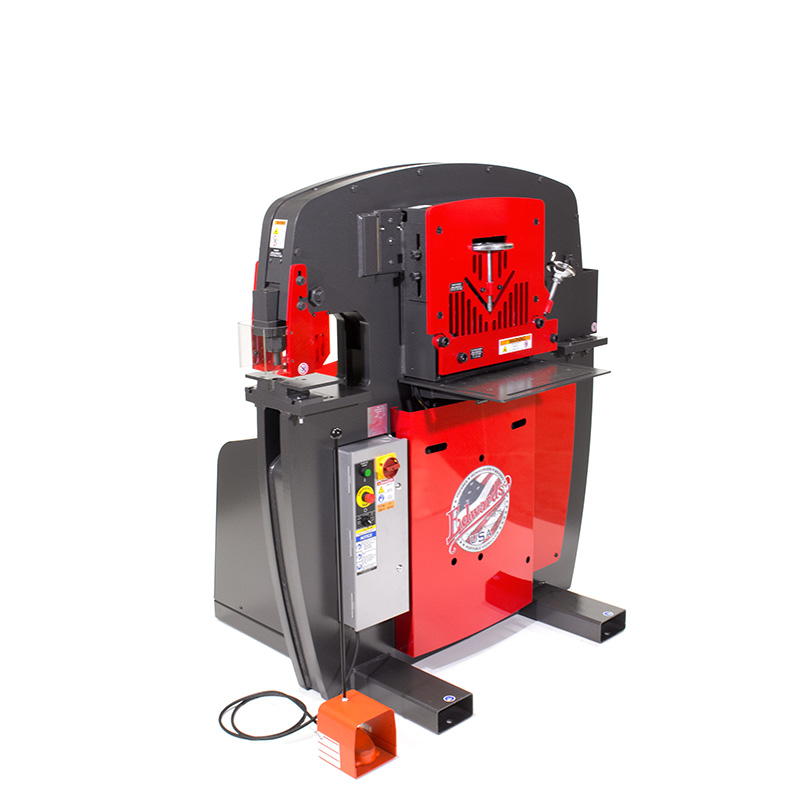

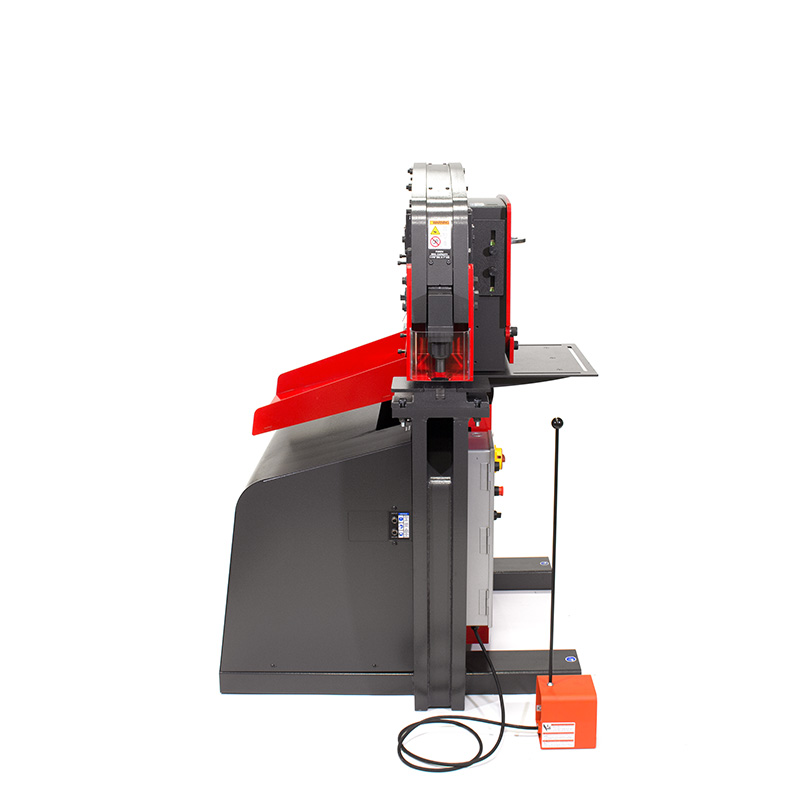

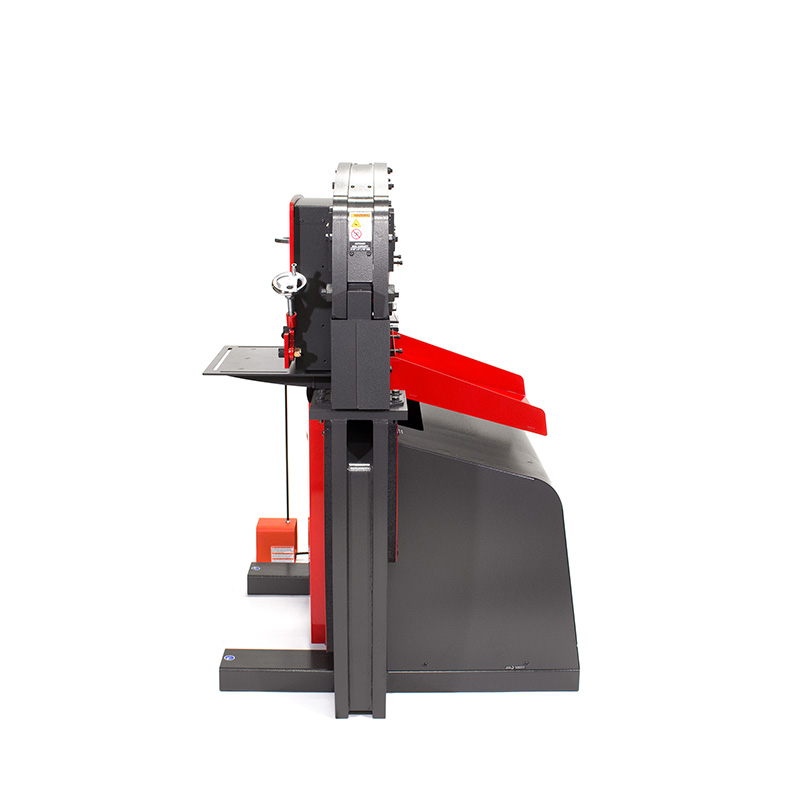

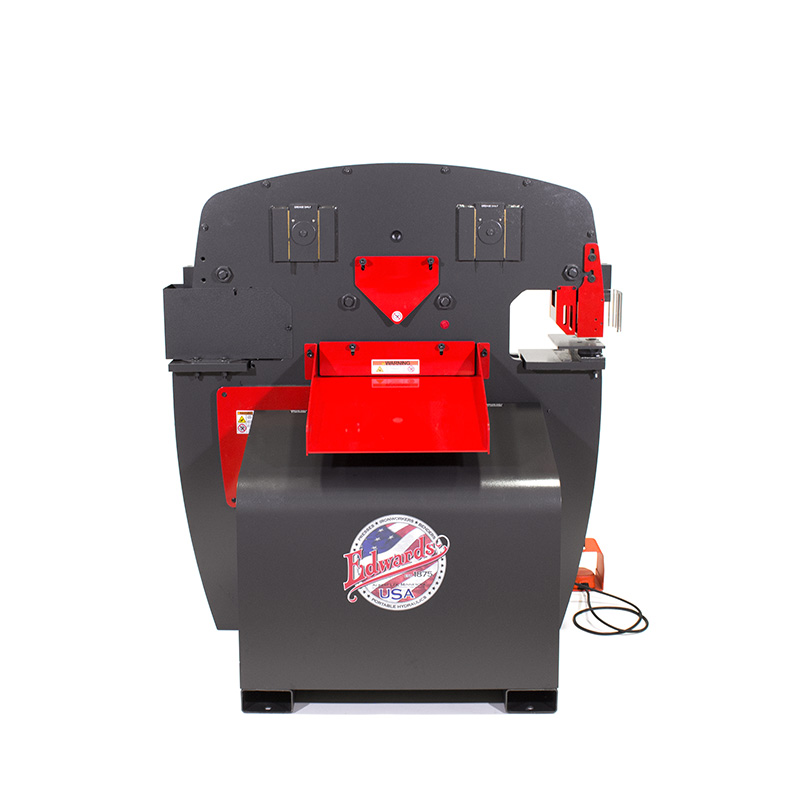

Edwards 100 Ton JAWS IV Hydraulic Ironworker – Free Punch & Die Starter Set with Every New Edwards Ironworker
Inventory # 5892
Model: 100 Ton
Made in USA – Call us for special pricing!
Description:
If you’re looking for versatility and power, the Edwards 100 Ton Ironworker is perfect for your shop
Specifications:
Punch:
Max. Capacity: 1 1/16″ Diameter, 1″ A36
Stroke: 1 13/16″
Throat Depth: 11″
Open Height: 8 3/4″
Shut Height: 6 15/16″
Work Height: 39 1/16″
Flat Bar Shear:
Max. Capacity: 3/4″ x 3/4″, 1″ x 10″
Max. Round: 1 1/4″
Max. Square: 1 1/4″
Work Height: 37″
Angle Shear:
Max. Capacity: 6″ x 6″ x 1/2″
Work Height: 43 15/16″
Open Station:
Throat Depth: 14 3/4″
Open Height: 8 3/4″
Shut Height: 6 15/16″
Stroke: 1 13/16″
Work Height: 37″
Hydraulic Pump: 10 1/2 GPM – 2 Stage
Valve Pressure: 3,500 PSI
Reservoir: 17 Gallons
Cylinder: 3 1/2″ Ram
Motor: 7.5 HP / 208v or 230v / 3ph / 1,765 RPM
Standard Features:
Four available workstations
High capacity angle shear
Universal open tooling station
Electric stroke control
Mechanical Specifications:
Dimensions: 56 1/8″ x 45″ x 61 11/16″ H
Weight: approx. 3,850 lbs.
Ask us about the optional PowerLink System which allows your Ironworker to act as a power source for Edward’s expanding line of innovative Powerlink Hydraulic Machine Tools, such as the 10 Ton Bender, 20 Ton Horizontal Press and 40 Ton Shop Press
Note: Stock Photo May Show Options Not Included with Your Purchase – Please Contact Us with Any Questions
Contact us for special pricing and availability
FOB Factory
