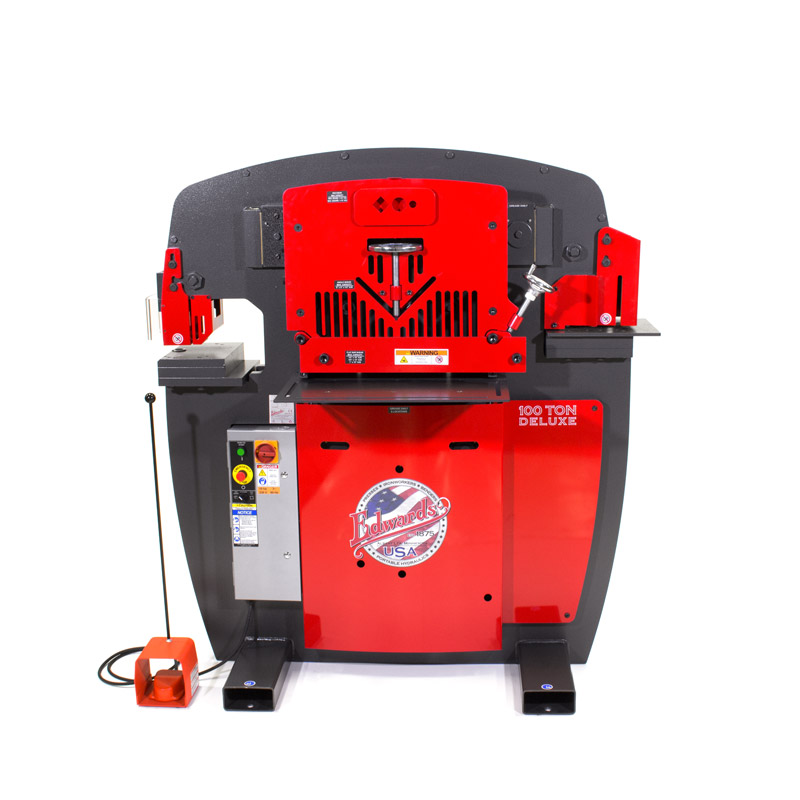

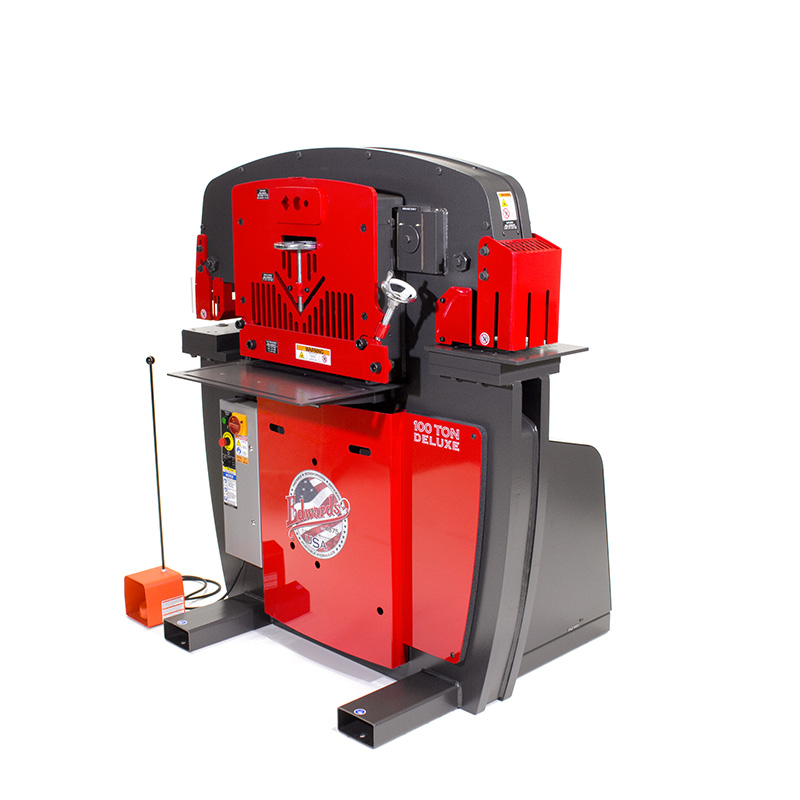

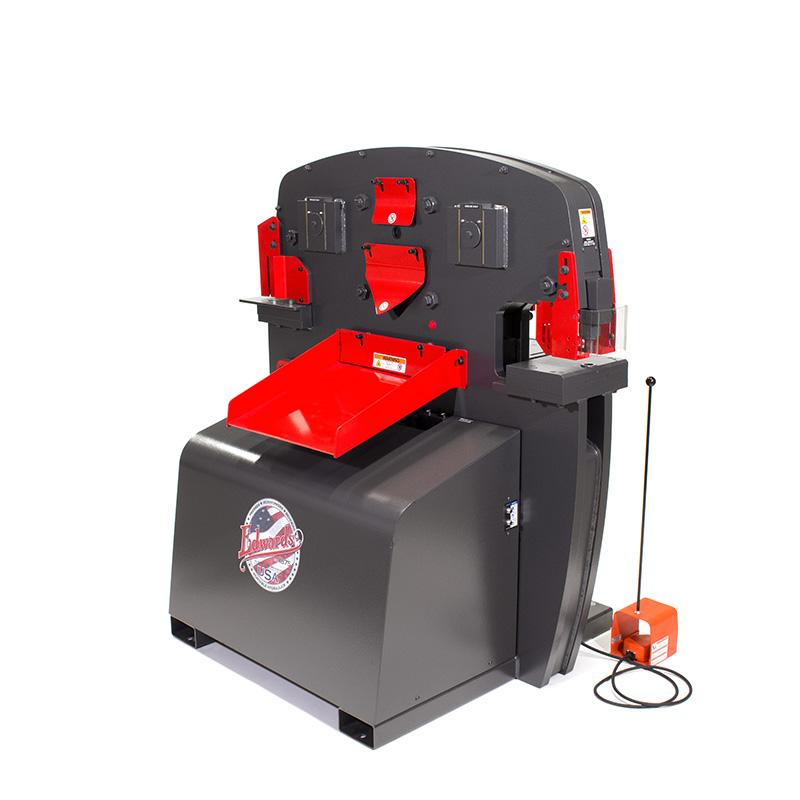

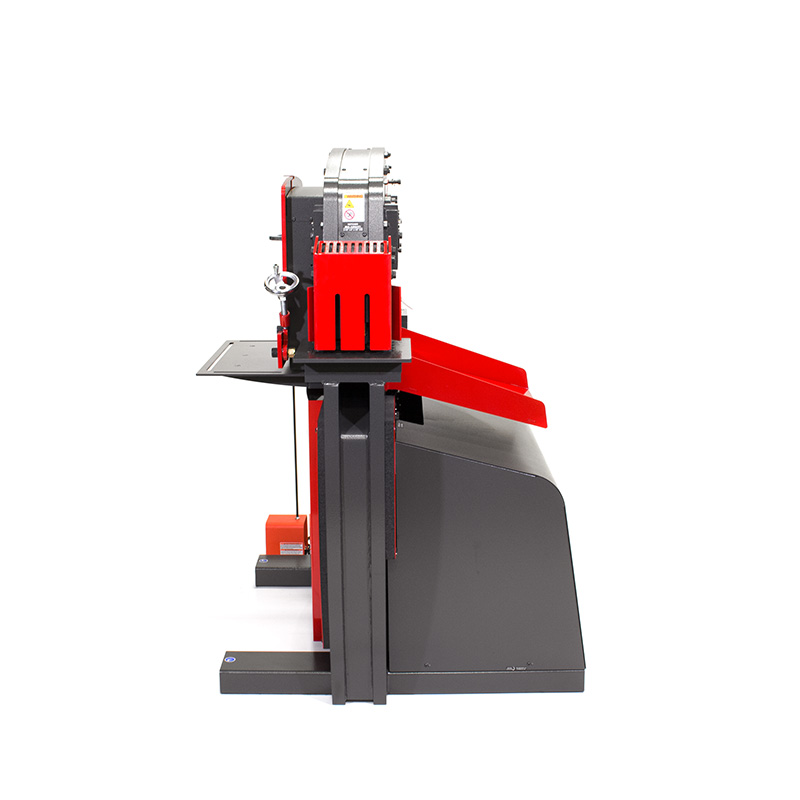

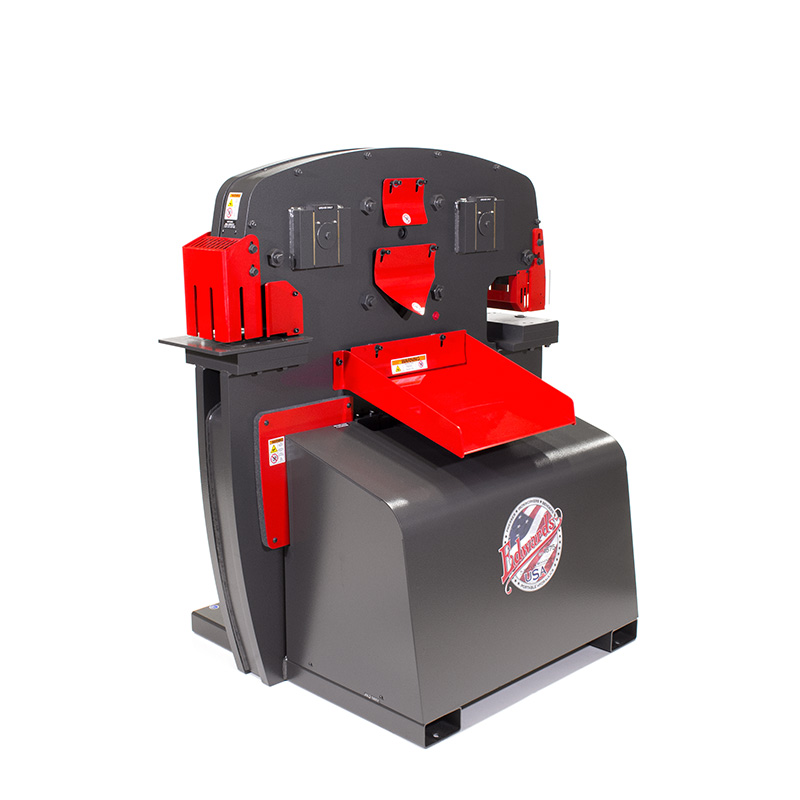

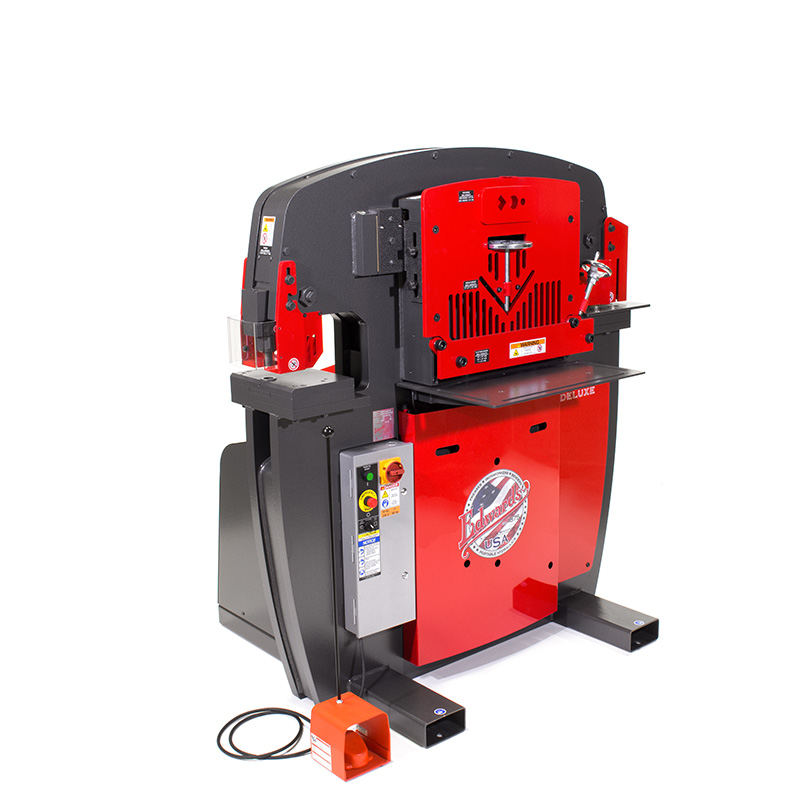

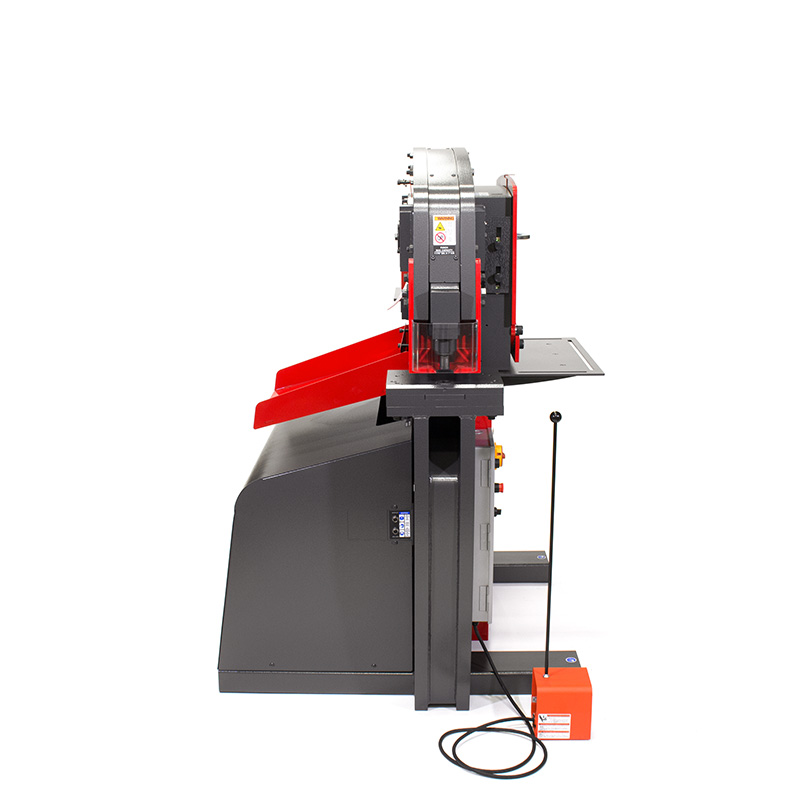

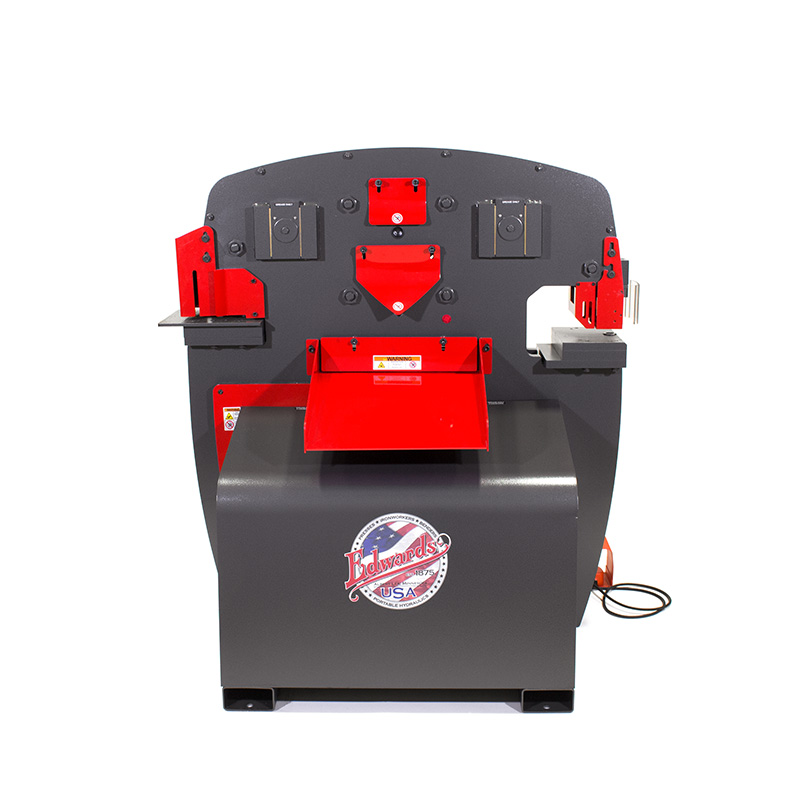

Edwards 100 Ton Deluxe JAWS V Hydraulic Ironworker – Free Punch & Die Starter Set with Every New Edwards Ironworker
Inventory # 5893
Model: 100 Ton Deluxe
Made in USA – Call us for special pricing!
Description:
A brute of an Ironworker, the Edwards 100 Ton Deluxe features super-duty construction and a powerful 10 HP motor
Specifications:
Punch:
Max. Capacity: 1 1/16″ Diameter, 1″ A36
Stroke: 1 15/16″
Throat Depth: 11″
Open Height: 8 3/4″
Shut Height: 6 13/16″
Work Height: 39 3/8″
Flat Bar Shear:
Max. Capacity: 1/2″ x 18″, 3/4″ x 14″, 1″ x 10″
Max. Round: 1″
Max. Square: 1″
Work Height: 37″
Angle Shear:
Max. Capacity: 6″ x 6″ x 1/2″
Work Height: 43 15/16″
Rod Shear:
Max. Round: 1 1/2″
Max. Square: 1 1/4″
Work Height: 54 1/2″
Coper Notcher:
Max. Capacity: 3″ x 6″ x 1/2″
Work Height: 42″
Hydraulic Pump: 24 GPM
Valve Pressure: 3,800 PSI
Reservoir: 17 Gallons
Cylinder: 2 1/2″ Ram
Motor: 10 HP / 208v or 230v / 3ph / 1,770 RPM
Standard Features:
Five loaded workstations
Built-in rod shear for square and round bar
18″ flat bar shear
Dedicated Coper Notcher
Electric stroke control
Mechanical Specifications:
Dimensions: 56″ x 45 1/2″ x 63 1/8″ H
Weight: approx. 5,180 lbs.
Ask us about the optional PowerLink System which allows your Ironworker to act as a power source for Edward’s expanding line of innovative Powerlink Hydraulic Machine Tools, such as the 10 Ton Bender, 20 Ton Horizontal Press and 40 Ton Shop Press
Note: Stock Photo May Show Options Not Included with Your Purchase – Please Contact Us with Any Questions
Contact us for special pricing and availability
FOB Factory
