Description

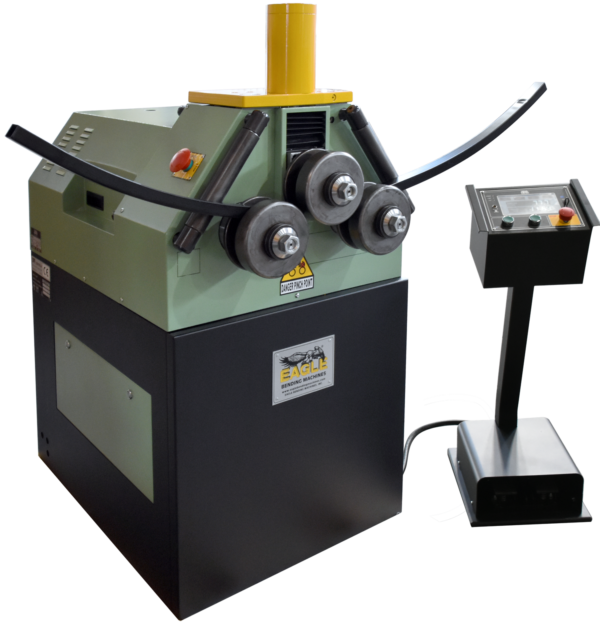

Eagle CP40H-2 2″ Programmable Angle Roll Bender
Inventory # 7824
Model: CP40H-2
Specifications:
Capacity:
Flat Bar, Hard Way: 2 1/4″ x 3/8″, 20″ Min. Diameter
Flat Bar, Easy Way: 4″ x 5/8″, 16″ Min. Diameter
Solid Square: 1 3/8″, 20″ Min. Diameter
Angle, Leg-Out: 2″ x 1/4″, 24″ Min. Diameter
Angle, Leg-In: 2″ x 1/4″, 28″ Min. Diameter
Channel, Leg-Out: 3″, 30″ Min. Diameter
Channel, Leg-In: 1 3/8″, 20″ Min. Diameter
Solid Round: 2″ Sch. 40 Pipe, 40″ Min. Diameter
Round Pipe: 2″ Sch. 40 Pipe, 40″ Min. Diameter
Round Tube: 2 3/4″ x 14 Gauge, 60″ Min. Diameter
Square Tubing: 2″ x 1/8″, 48″ Min. Diameter
Driven Rolls: 2
Rolling Speed: 14 FPM
Bending Adjustment: Hydraulic
Working Plane: Vertical/Horizontal
Repeat Control: Auto Repeat
Standard Features:
Solid steel main frames
DP7 auto-repeat programmable control with 40-position memory for repeat bending
Large, high-brightness LED readout on all models to monitor the bending roll position
CP40s operate in both vertical and horizontal positions
Standard universal tooling set has 18 components
Hardened steel shafts are journaled dual tapered roller bearings
Patented Z-block top journal increases rigidity for truer to plane rolling
Hardened/sintered guides and ways with adjustable gibbs
Heavy duty lateral material guides with quadruple bearings on each roller to help keep your parts straight
Large thrust adjustment studs on guides have knurling for quick adjustment plus recessed hex tail for use with a socket ratchet when under extreme loads
Dual foot pedal controls for forward/reverse rolling have steel protective covers
Anti-pinch mill scale covers protect internal components from mill scale and are an extra safety feature
Concealed oil lines on the hydraulic ram cannot be damaged by accident, nothing is exposed
Dual emergency stop buttons, 1 on machine and 1 on the console for enhanced operator safety
Flush mounted electrical panels are out of harms way in your shop environment
Easy access tool storage compartment in the machine base for convenience
Mobile control consle with long trailing lead allows safe operator distance from the work-piece
Limited Lifetime Warranty
Mechanical Specifications:
Dimensions: 28″ x 38″ x 54″ H
Shipping Weight: approx. 1,450 lbs.
Contact us for special pricing and availability
FOB Factory
