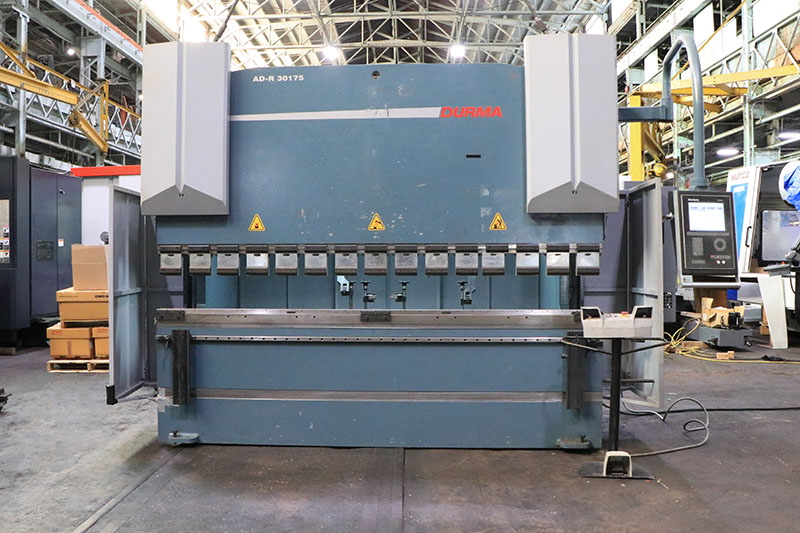

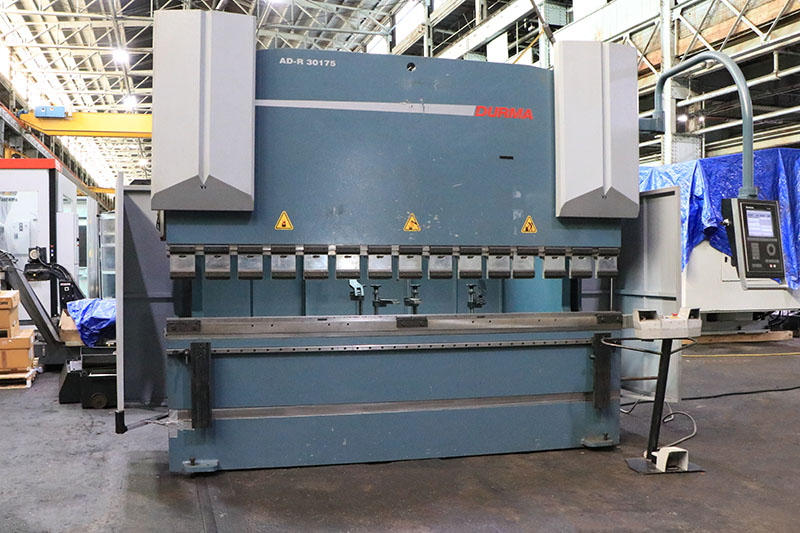

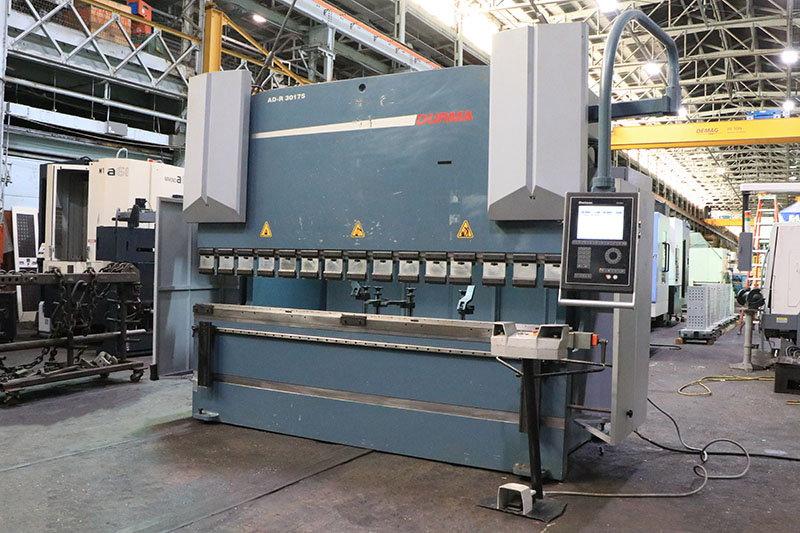

Durma 10′ x 192.5 Ton CNC Press Brake, AD-R 30175 – SALE PENDING 11/27/2024
Inventory # 9778-P

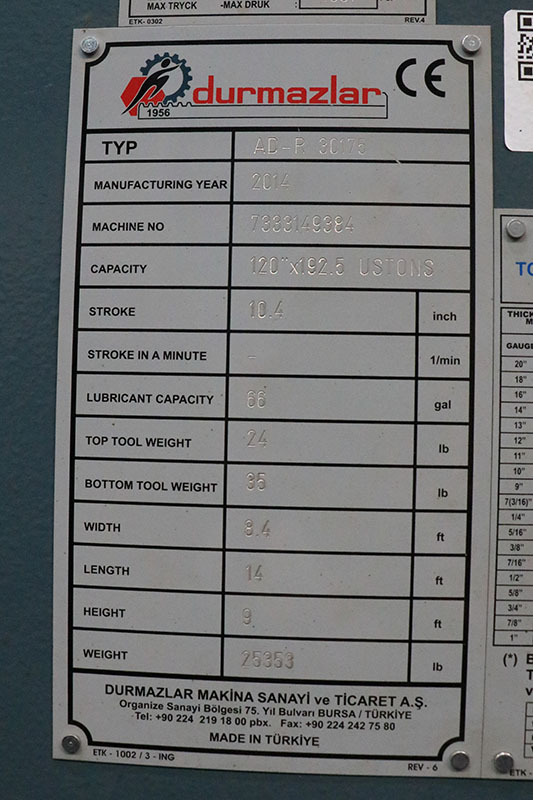

Model: AD-R 30175
S/N: 7333149384 “2014”
View the AD-R Series Specifications Here
Specifications:
Bending Force: 192.5 Tons
Bending Length: 10′ (120″)
Distance Between Centers: 8′ 6″
Stroke (Adjustable): 10.4″
Open Height: 21″
Throat Depth: 16″
Speeds:
Approach: 283 IPM
Press: 24 IPM
Return: 236 IPM

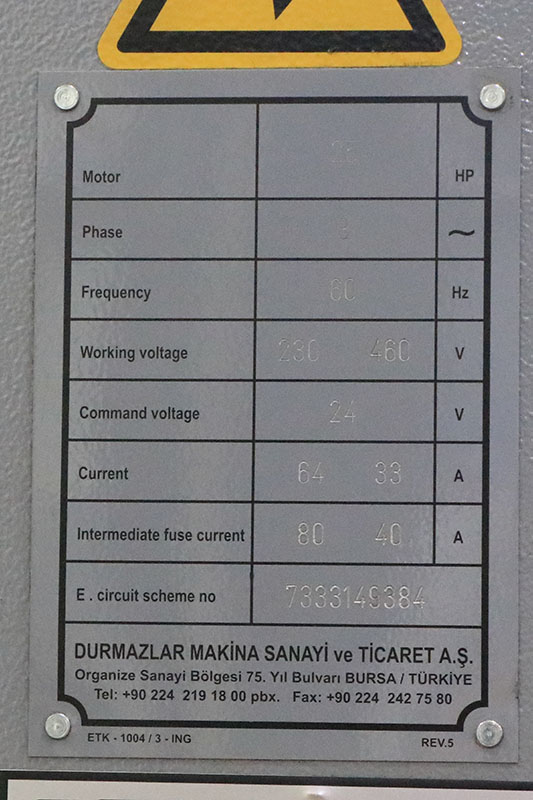

Motor: 25 HP / 230v, 460v / 3ph (Pre-Wired 460v)
Equipment Included:

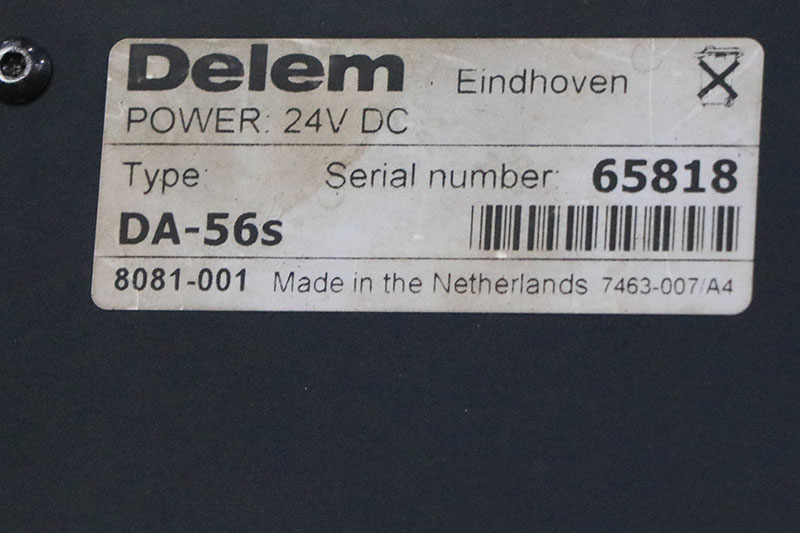

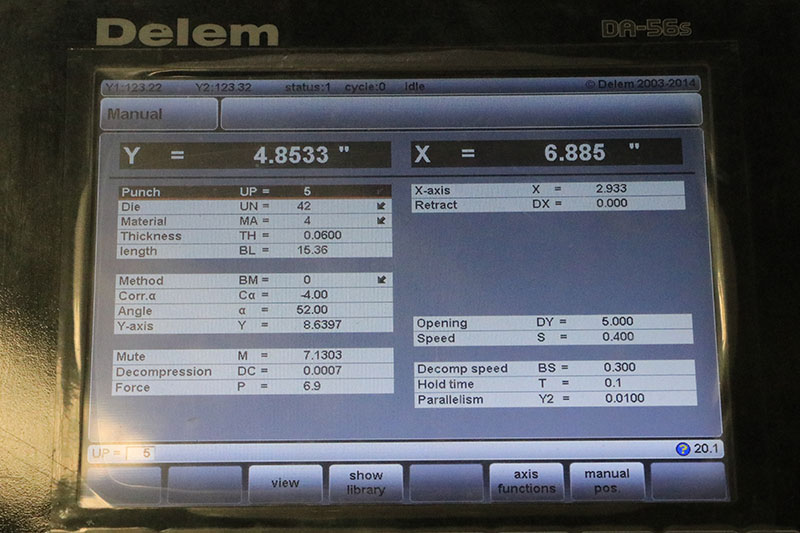

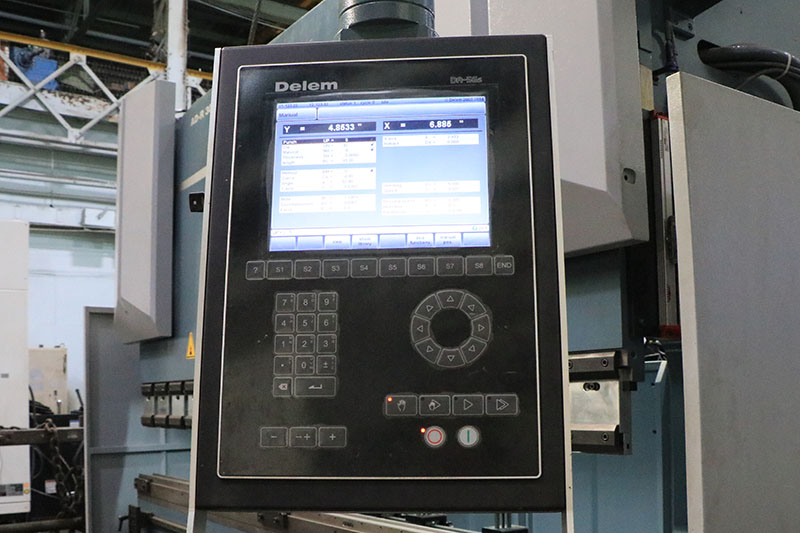

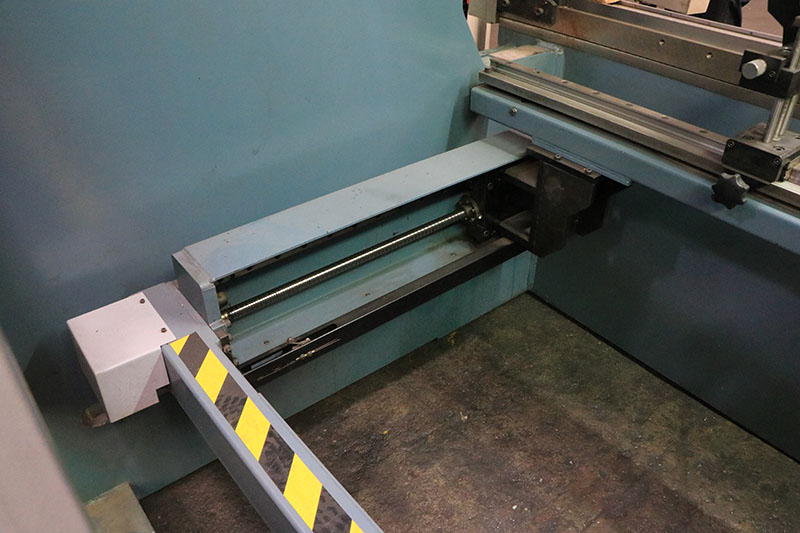

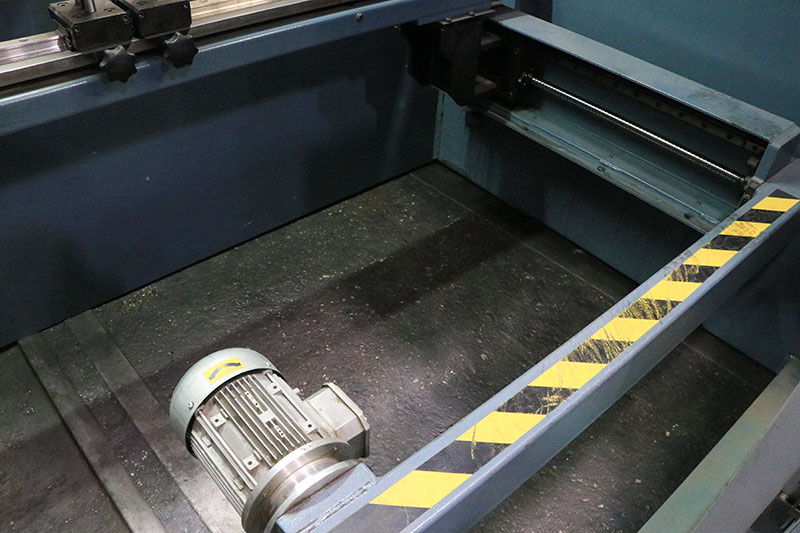

Delem DA-56s 3-Axis CNC Back Gauge (X, Y1, Y2)
Manual R Axis
Manual Crowning

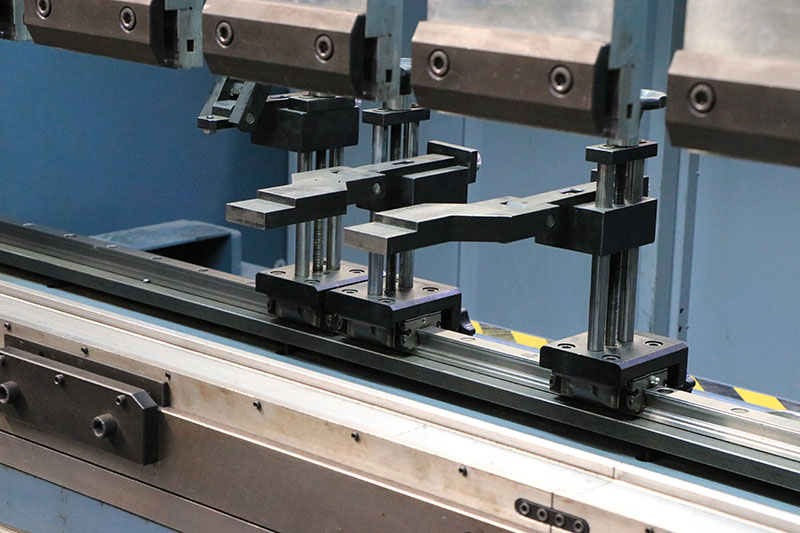

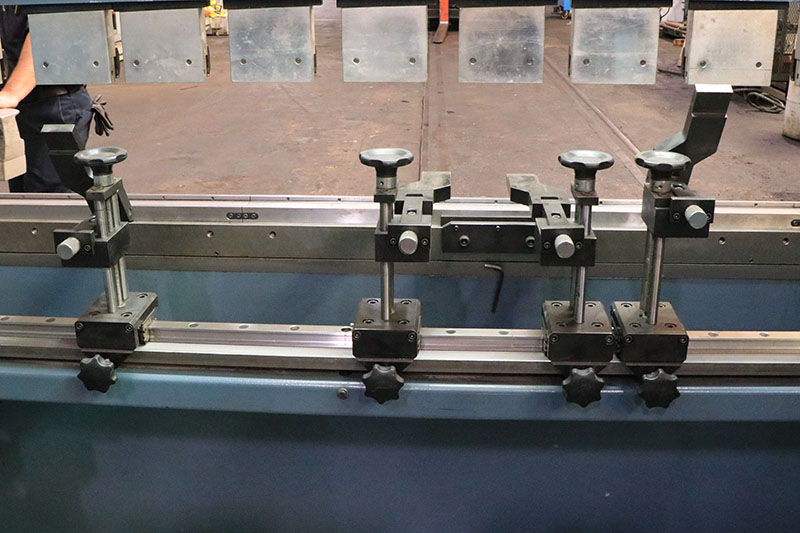

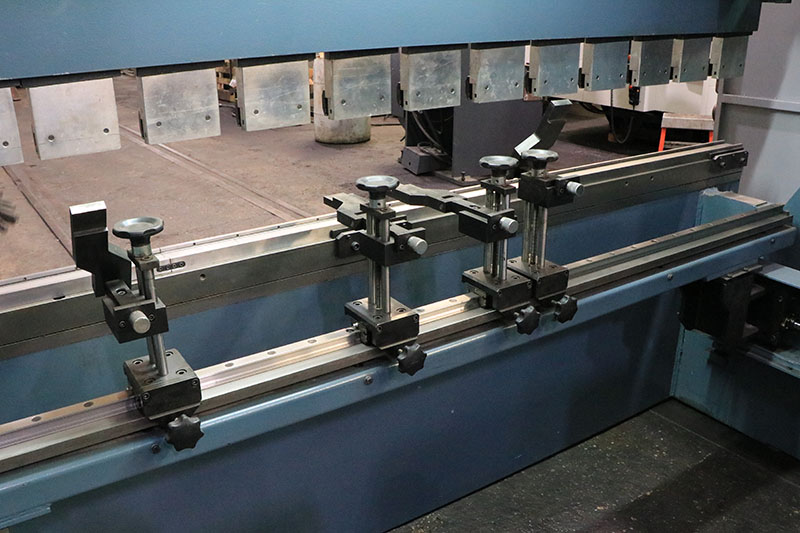

Four Adjustable Fingers on the Back Gauge
Lower Die Rail

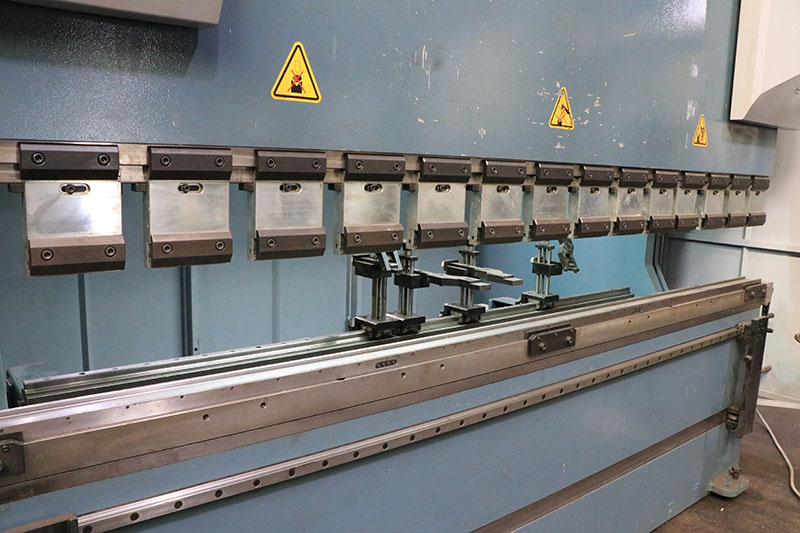

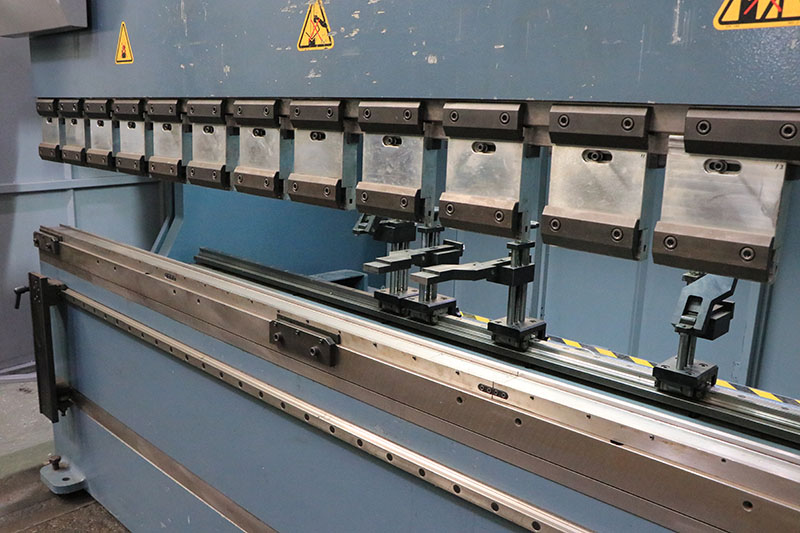

Full Complement of Sectional Ram Clamps

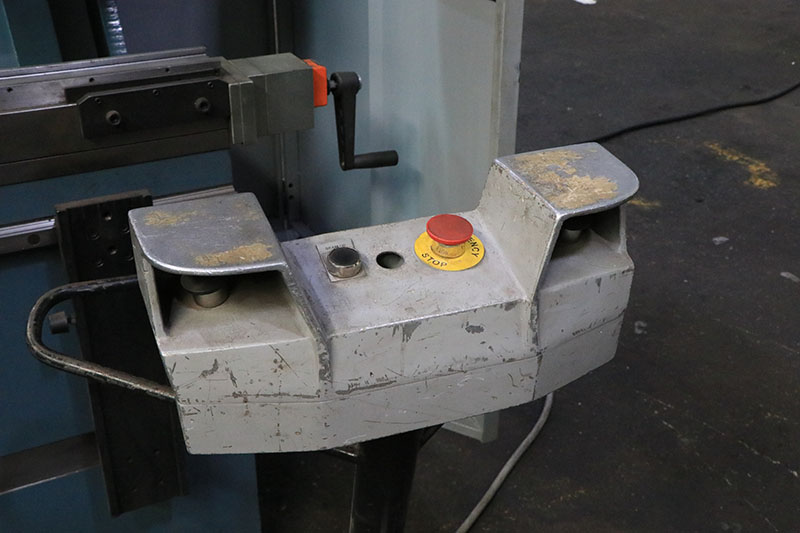

Dual Palm Button or Electric Foot Switch Operation

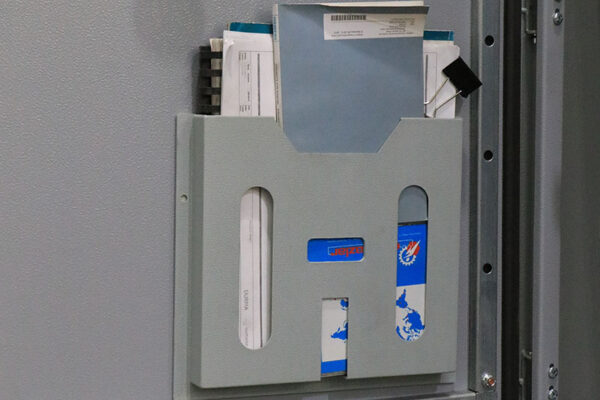

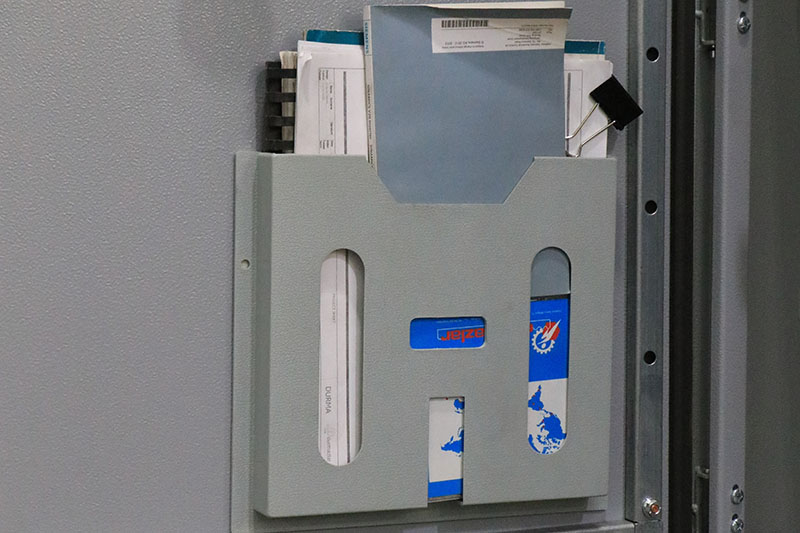

All Manuals
Mechanical Specifications:
Dimensions: 168″ x 101″ x 108″ H
Weight: approx. 26,000 lbs.
FOB Harrison, NJ Warehouse
