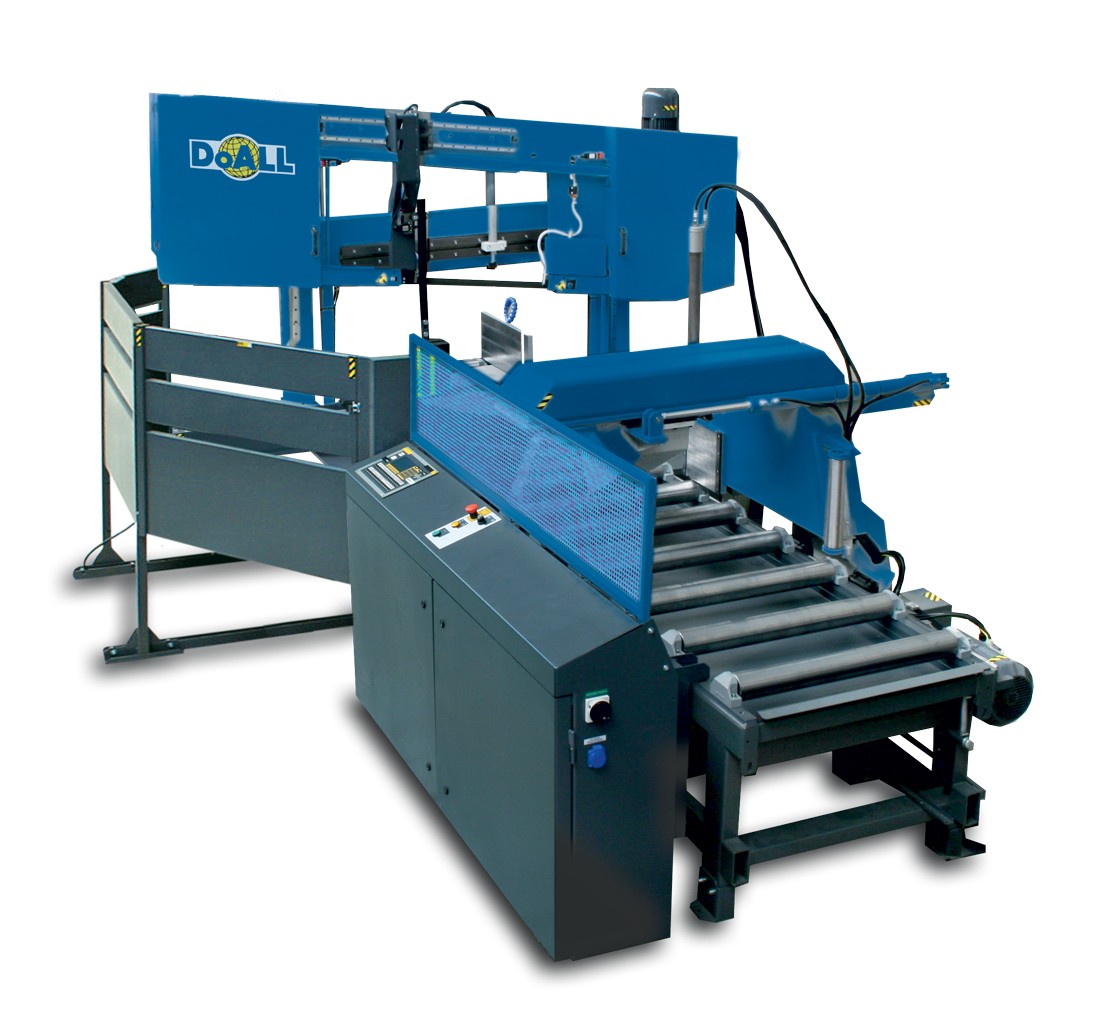

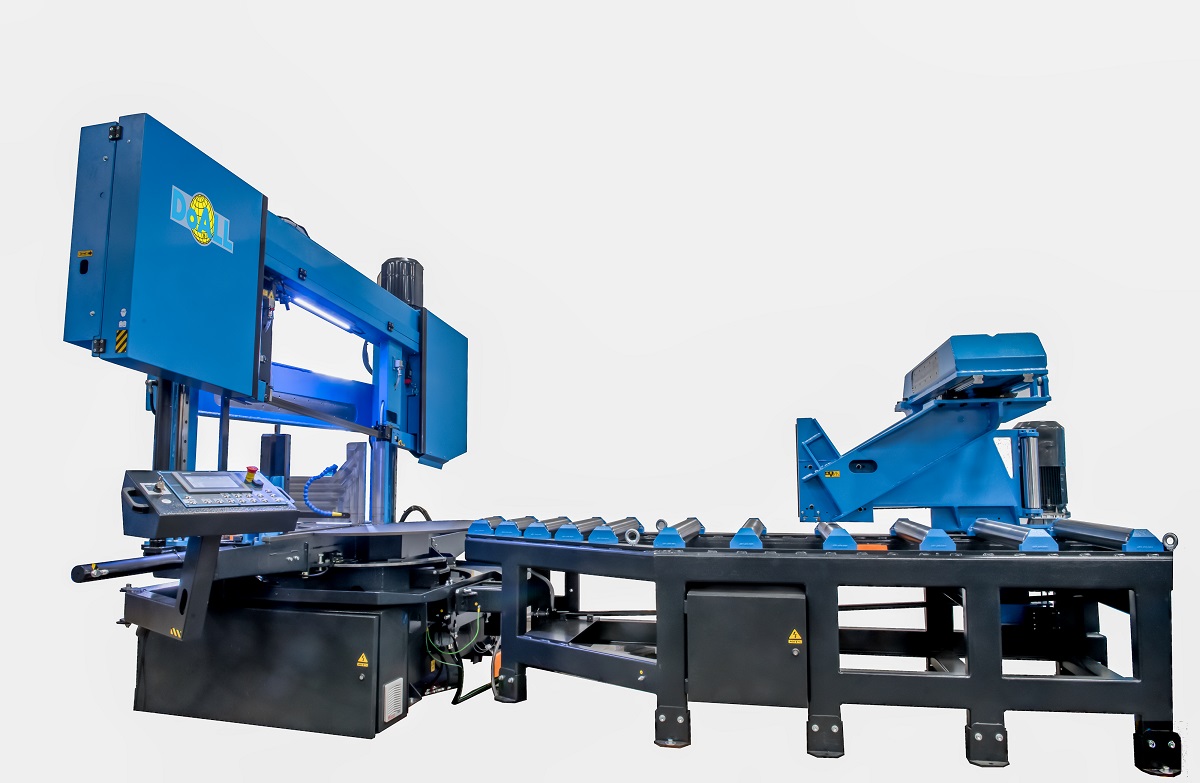

DoALL 20″ Dual Column, Dual Miter Band Saw, DCDS-750NC
Inventory # 7719
Model: DCDS-750NC
Description:
The DoALL DCDS-750NC high production, horizontal StructurALL, automatic numeric controlled indexing, dual column, dual mitering metal cutting band saw offers up to 19″ x 30″ rectangular cutting capacity and 20″ round capacity. Also classified as a double column, dual swivel, the DCDS-750NC is ideal for production sawing of a large variety of materials including, but not limited to, structural solids, stainless and tool steel
The DoALL band saw has a touch display controller for easy operation. The DCDS-750NC offers high loading capacity and a variety of optional accessories. This hydraulically controlled dual column, automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right
The saw blade is set at a 7° cant allowing for more efficient cutting. The DCDS-750NC is the ideal machine for a fabricator cutting multiple angles in the same work piece
Specifications:
Cutting Capacity:
Round Tube: 20″
Round Solid: 15 3/4″
Rectangle: 19″ x 30″
Index Single Stroke: 0.12″ – 78.7″
Auto Index Multiple Stroke: 394″
Nesting Capacity: 3.3″ – 29 1/2″ x 10.2″
Miter Cutting: 60° Left and Right
Round @ 45°: 19.7″
Rectangle @ 45°: 19.7″ x 18.9″
Round @ 60°: 13″
Rectangle @ 60°: 13″ x 18.9″
Remnant Length Drop: 4.7″
Material Pass Line Height: 32″
Blade Size: 256″ x 1 1/2″ x 0.05″
Blade Speed: 65 – 328 FPM
Blade Drive Motor: 7.5 HP
Standard Equipment:
Tool kit
Work light
Flood coolant
Feed rate indicator
Automatic feed control
Digital read out of cutting angle
Hydraulic band tension
Automatic guide arm setting
Pulley-driven band brush
Siemens saw control with touch display
Variable vise pressure control – Set of 2
Hydraulic angular position and lock
Safety covers and 3 panel work area surround
Complimentary DoALL cutting fluids package
One DoALL bi-metal saw blade
Instruction and parts manuals on CD or USB data stick
Mechanical Specifications:
Dimensions: 232″ x 130″ x 85″ H
Weight: approx. 9,149 lbs.
Contact us for special pricing and availability
FOB Factory
