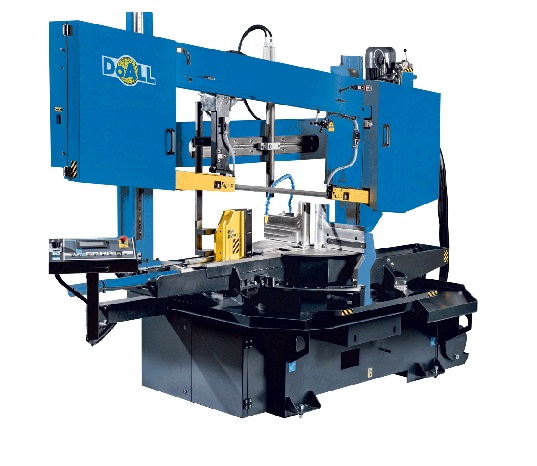

DoALL 18 1/2″ Dual Column Semi-Automatic Band Saw, DCDS-600SA
Inventory # 7717
Model: DCDS-600SA
Description:
The DoALL DCDS-600SA high production, horizontal StructurALL, semi-automatic, dual column, dual mitering metal cutting band saw offers up to 16″ x 24″ rectangular cutting capacity and 18 1/2″ round capacity. Also classified as a double column, dual swivel, the DCDS-600SA is ideal for production sawing of a large variety of materials including, but not limited to, structural solids, stainless and tool steel
The DoALL band saw has a touch display controller for easy operation. The DCDS-600SA offers high loading capacity and a variety of optional accessories. This hydraulically controlled dual column, semi-automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right
The saw blade is set at a 7° cant allowing for more efficient cutting. The DCDS-600SA is the ideal machine for a fabricator cutting multiple angles in the same work piece
Specifications:
Cutting Capacity:
Round Tube: 18 1/2″
Round Solid: 9 7/8″
Rectangle: 16 1/8″ x 24″
Max. Bundle Capacity: 10″ x 24″
Miter Cutting: 60° Left and Right
Round @ 45°: 18 1/2″
Rectangle @ 45°: 19 1/2″ x 16.3″
Round @ 60°: 13″
Rectangle @ 60°: 16.7″ x 12″
Material Pass Line Height: 31 1/2″
Blade Size: 239″ x 1 1/4″ x 0.043″
Blade Speed: 65 – 328 FPM
Blade Drive Motor: 5 HP
Standard Equipment:
Tool kit
Work light
Safety covers
Flood coolant
Feed rate indicator
Overfeed protection
Mitsubishi saw control
Hydraulic band tension
Pulley-driven band brush
Automatic guide arm setting
Digital read out of cutting angles
Hydraulic angular position and lock
Variable vise pressure control
One DoALL bi-metal saw blade
Input and output supporting feed cylinders
Complimentary DoALL cutting fluids package
Instruction and parts manuals on CD or USB data stick
Mechanical Specifications:
Dimensions: 70″ x 115″ x 84″ H
Weight: approx. 3,715 lbs.
Contact us for special pricing and availability
FOB Factory
