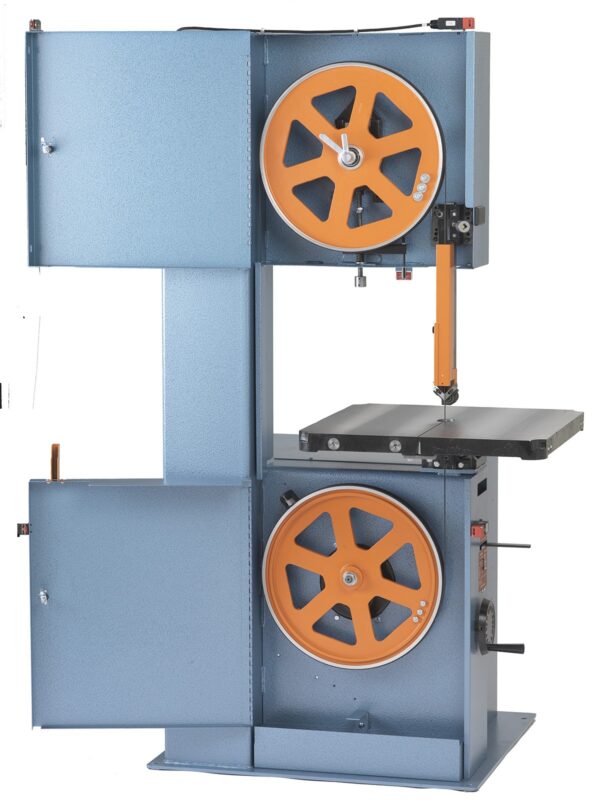

DoALL 13″ x 20″ Vertical Contour Band Saw, 2013-V2
Inventory # 7636
Model: 2013-V2
Description:
The DoALL 2013-V2 vertical contour band saw features variable pulley drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut off
The 2013-V2 metal cutting, upright band saw is among the most versatile sawing machines on the market today and replaces the Doall 2013-V
Specifications:
Capacity: 13″ x 20″
Band Speed: 55 – 5,200 FPM
AC Motor Drive: 2 HP
Throat, Band to Column: 20″
Max. Work Height: 13″
Band Width Capacity: 1/8″ – 1″
Band Length: 154″
Table: 26″ x 26″
Table to Floor Height: 39″
Table Capacity: 500 lbs.
Upper Wheel Adjustment: 500 lbs.
Standard Features:
Aluminum wheels with crowned rubber tires
Wrench for saw guides
Dual range transmission
Variable pulley drive
Band speed indicator
Band door interlocks
Band tension indicator
Job selector
One set of high-speed, insert-type guide blocks for bands 1/8″ – 1/2″
Chip pan
One set of steel guide inserts for bands 1/4″, 3/8″ and 1/2″
Wrench for table trunnion
Transmission oil
One Doall bi-metal saw blade
Instruction and parts manuals on CD
Mechanical Specifications:
Dimensions: 44.39″ x 55.08″ x 80.17″ H
Weight: approx. 1,250 lbs.
