Description

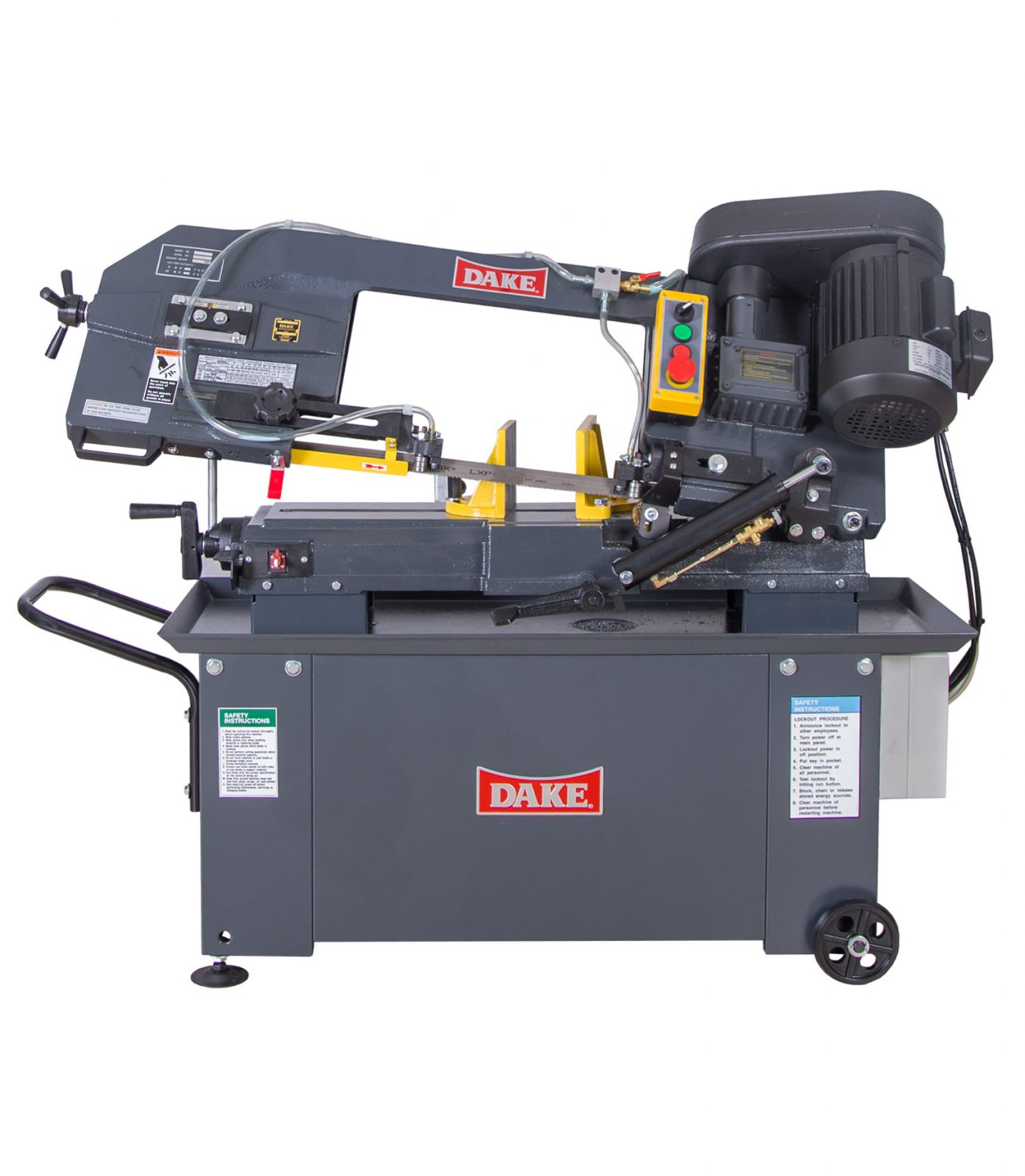

Dake 9″ x 12″ Standard Duty Horizontal Band Saw, SE912
Inventory # 8436
Model: SE912
P/N: 983101
Description:
Standard duty horizontal band saw offering accurate cutting, rugged gear box, hydraulic control, chip brush blade cleaner,
and wet or dry cutting with simple operation
Specifications:
Capacity:
Rounds: 9″
Flats: 9″ x 12″
Solid Round:
@ 90°: 9″
@ 45° Right: 3 1/2″
Solid Rectangle:
@ 90°: 9″ x 12″
@ 45° Right: 3 1/2″ x 7 1/2″
Max. Blade Speed: 328 FPM
Blade Width: 1″
Blade Length: 104 1/2″
Blade Speeds: 98 / 164 / 246 / 328 FPM
Bed Work Area: 24 1/2″ x 9″
Floor to Bed: 21 3/4″
Motor: 1 HP / 110v / 1ph
Standard Features:
Accurate cutting with vibration free cast/machined table bed, heavy steel base, horizontally mounted guie arms, and
adjustable blade guides and rollers
CE approved low voltage safety reset, thermo overload protection, auto shut off, blade guards, safety interlocks
Quick release vise and hand wheel action for fast change of material sizes
Wet/dry cutting
Hydraulic control for head feed at variable rates and to lock head at any height
Convenient chip brush blade cleaner, storage in base and wheels that roll easily
Standard Equipment:
Recirculating Coolant System
Steel Base with Wheels
Low Voltage Controls
Mechanical Specifications:
Dimensions: 56″ x 21″ x 59″ H
Weight: approx. 500 lbs.
FOB Factory – Contact us for Availability
