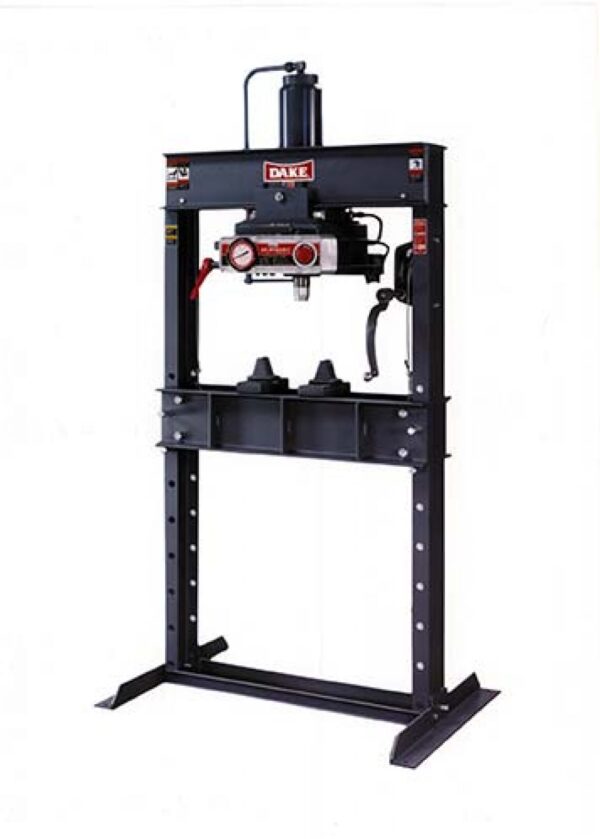

Dake 75 Ton Air Operated Press, 6-475
Inventory # 8423
Model: 6-475
P/N: 906475
Description:
Offering 75 tons of pressing power, this air operated press eliminates the need for hand pumping with either a single or
dual pump option. Standing 86″ tall, this press offers 40 IMP ram advance speed
Specifications:
Capacity: 75 Tons
Operation: Air
Width Between Uprights: 44″
Width Between Table Channels: 8 1/4″
Min. Ram to Table: 6″
Max. Ram to Table: 36″
Ram Travel: 10″
Horizontal Workhead Travel: 24 5/8″
Ram Advance Speed: 40 IPM
Pressing Speed: 3 1/2 IPM
Number of Pumps: Two
Air Pressure: 90 – 125 PSI
Standard Features:
Air operation eliminates the need for hand pumping
Rapid ram approach quickly moves ram to work to save production time
By-pass hole prevents excessive ram extension
Adjustable table permits easy vertical movement by means of self-locking hoist
Safety valve protects against overloads
Moveable workhead is roller moun ted on ball bearings for off-center work
Double pumps for faster pressing
Standard Equipment:
Frame
Two Steel V-Blocks
Flat Ram Nose
Stroke Indicator
Safety Relief Valve
Workhead
Two Steel Table Plates
Pressure Gauge
Self-Locking Table Hoist
Mechanical Specifications:
Dimensions: 55″ x 36″ x 86″ H
Weight: approx. 1,550 lbs.
Contact us for special pricing and availability
FOB Factory
