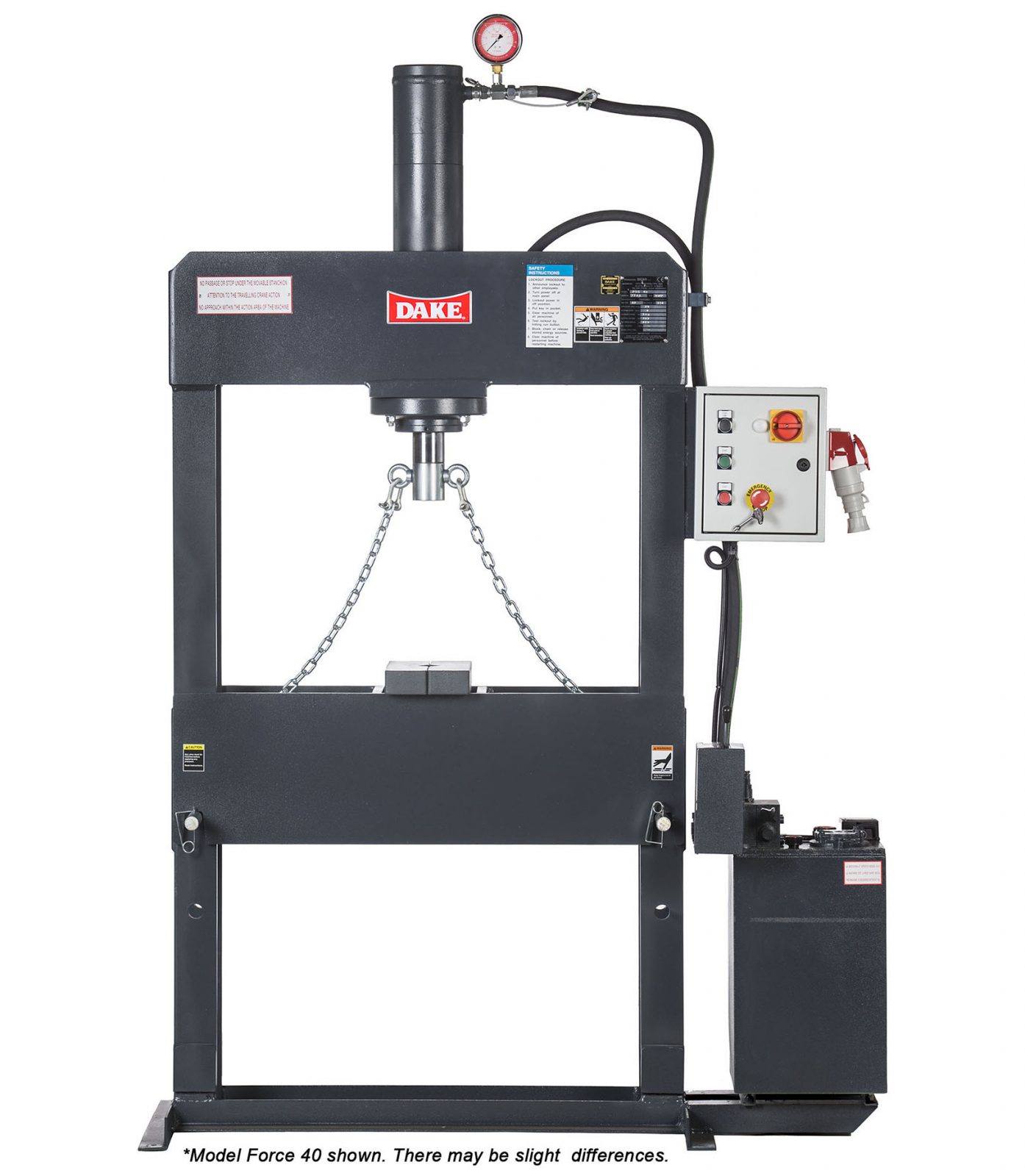

Dake 70 Ton “Dura-Press” Hydraulic Double Acting Press, Force 70
Inventory # 8468
Model: Force 70
P/N: 972004
Description:
70 ton double acting hydraulic press for pulling and pressing applications. Adjustable table, pressure preset and lock out so
maximum tonnage can never be exceeded, and rapid ram advance. Joystick operation makes this machine easy to
operate. A fast, quiet, dependable, economical price, smooth operating press that is very simple to operate
Specifications:
Capacity: 70 Ton
Operation: Electric
Width Between Uprights: 35″
Width Between Table Channels: 8″
Min. Ram to Table: 7 1/4″
Max. Ram to Table: 32″
Ram Travel: 19″
Ram Advance Speed: 42 IPM
Pressing Speed: 4 IPM
Motor: 2 HP / 220v, 440v / 3ph
Standard Features:
Double acting cylinder design with 5-part oil seals for smooth operation and tight seal
Welded heavy steel plate frame for greater rigidity
All electrical controls are low voltage (24v)
Preset and factory-sealed relief valve to prevent exceeding pressure capacity
Ram has lifting eyes that attach a chain to hydraulically move the table
Smooth, responsive control valve
Rapid advance of the ram to the workpiece – speed shifts automatically when contact is made
Standard Equipment:
Frame
Two Steel Table Plates
Lifting Chain
Cylinder
Pressure Gauge
Mechanical Specifications:
Dimensions: 63″ x 27″ x 88″ H
Weight: approx. 1,595 lbs.
FOB Factory
