Description

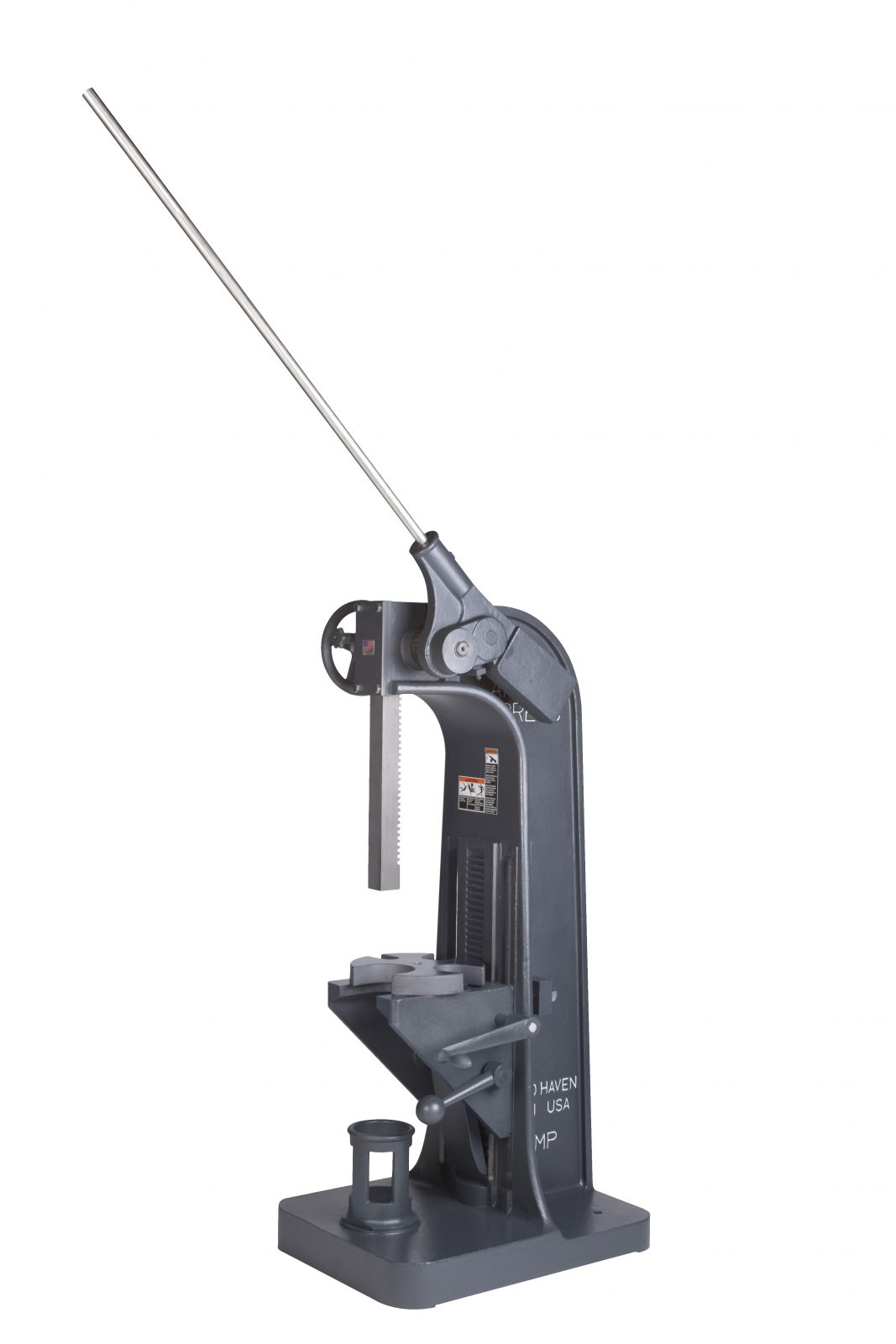

Dake 5 Ton Ratchet Lever Arbor Press, Model 4M
Inventory # 8438
Model: 4M
P/N: 902006
Specifications:
Capacity: 5 Tons
Leverage Ratio: 55:1
Ram Size: 2″ x 2″ x 23″
Max. Diameter Work: 20″
Throat: 10″
Largest Arbor: 5 1/4″
Capacity Over Table: 26″
Capacity Over Table Plate: 24 1/2″
Standard Features:
Ratchet device permits lever to be used in most convenient position
Counterweight returns lever quickly after downstroke
Handwheel advanced ram to work quickly
Standard Equipment:
Cast Iron Base
Handwheel
Ram
Notched Table Plate
Counter Weight
Mechanical Specifications:
Dimensions: 21 1/2″ x 29″ x 58″ H
Weight: approx. 1,045 lbs.
FOB Factory – Contact us for Availability
