Description

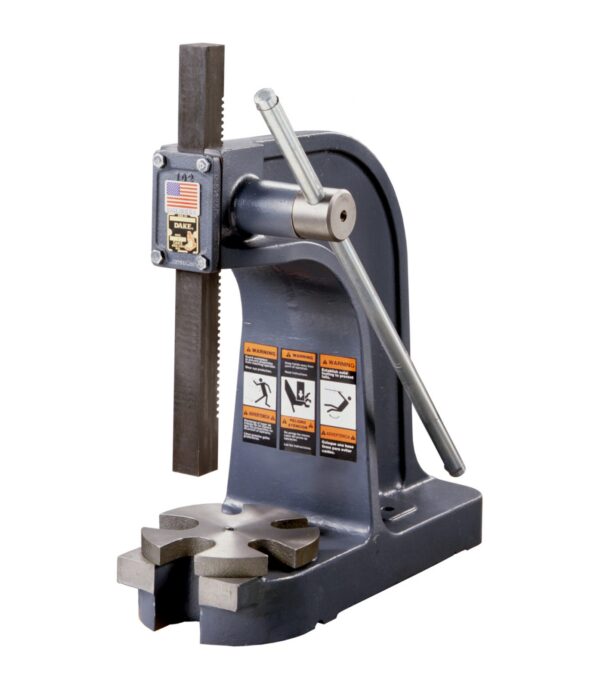

Dake 3 Ton Single Lever Arbor Press, Model 1
Inventory # 8465
Model: 1
P/N: 901006
Description:
The most heavy duty arbor press in our single leverage line, this 3 ton press features a slotted table plate and base
opening. Add an optional pedestal to make this machine a favorite in your shop
Specifications:
Capacity: 3 Tons
Leverage Ratio: 36:1
Ram Size: 1 1/4″ x 1 1/4″ x 16 1/2″
Max. Diameter Work: 14″
Throat: 7″
Largest Arbor: 2″
Max. Ram to Table: 11 1/2″
Min. Ram to Table: 10 3/4″
Standard Features:
Shimmed ram cap permits take-up for potential wear
Smooth action gears permit finite ram control
Friction brake
Adjustable handle allows convenient handle positioning
Base opening and slotted table plate for arbor work
Standard Equipment:
Cast Iron Base
Ram
Slotted Table Plate
Adjustable Handle
Mechanical Specifications:
Dimensions: 18″ x 7 1/4″ x 19″ H
Weight: approx. 130 lbs.
FOB Factory – Contact us for Availability
